9
GB
Electrical connections
DANGER
Danger of electric shock! All fittings must be
installed by a competent person in accordance
with current wiring regulations and local
building regulations. If in doubt, consult a
qualified electrician.
IMPORTANT
Always switch off the electricity supply at
the mains during installation, cleaning and
maintenance. We recommend that the fuse is
withdrawn or circuit breaker switched off at the
distribution board while work is in progress.

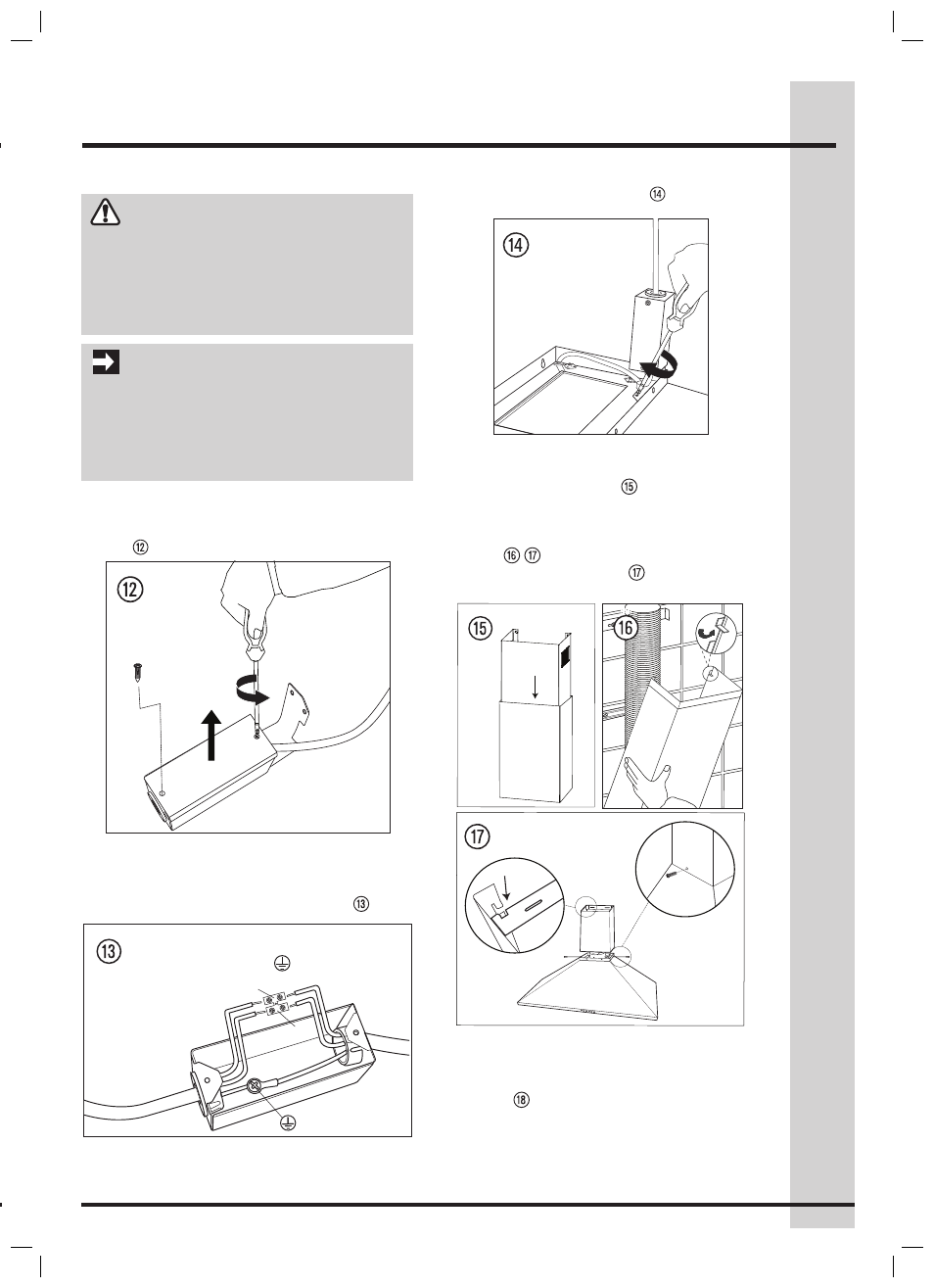

Step 4:
• Loosen the 2 short screws from the junction box
(fig. ).
fig. fig.
• Connect the incoming positive, neutral and
ground cables to the respective terminals. The
ground cable is already pre-assembled onto the
junction box to provide grounding (fig. ).
fig. fig.
L (live) = Black
(ground) = Green
N (neutral) = White
L
N
• Mount the junction box onto the range hood
using 2 short screws (13) (fig. ).
fig.
Step 5:
• Insert the upper chimney (2) into the lower chimney
(3) from top to bottom (fig. ).
• Mount lower chimney (2) on the range hood (1).
• Fit the tab, which is bend by 90 degrees, into the
lower bracket notch and mount to the lower bracket
(4) (fig. / ).
• Fix it with 2 screws (12) (fig. ).
fig. fig.
fig. fig. fig. fig.
• Pull the upper chimney (2) to the upward position
to match the screw hole of the upper bracket.
Mount to the upper bracket (3) with 2 side screws
(10) (fig. ).
• Insert 2 screws (8 or 11) in the top location, but
do not fully insert the screws (fig. ). Mount the
range hood (1) to the wall and tighten the screws.
Insert and tighten the 2 remaining screws on the
bottom location of the range hood (fig. / ).
• Attach the collar (5) to the range hood (1). Secure
with 2 short screws (8) (fig. ).
Step 3:
• Mount upper and lower brackets (3, 4) on the
wall. Secure with the remaining 4 sets of long
screws (8). The notches of the lower bracket
should be facing up towards the ceiling (fig. ).
• Attach the exhaust duct. In the example below
a round metal duct furnace pipe has been used.
The airtight connection of the exhaust duct
should then be improved with a duct tape. This
ensures tight fit and that no grease vapors will
escape from the duct (fig. ).
Installing the hood Installing the hood
