6.6 Maximum speed (for priming) switch

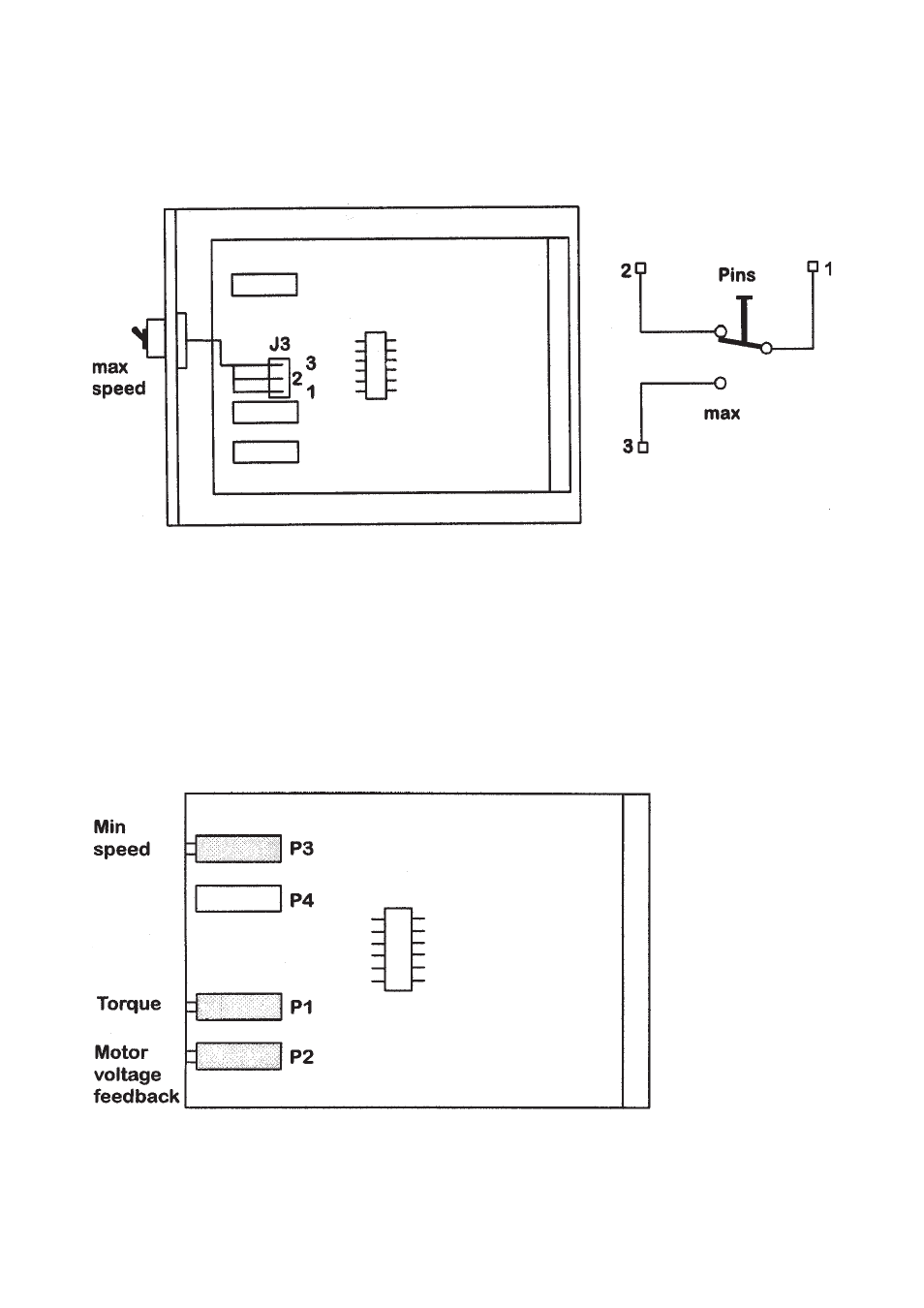

With the addition of an external non-latching switch wired to connector J3, a maximum speed input is available
for ease of priming. Before adding connector J3, ensure that the “switch by-pass link” LK1 between connectors
J2,2 and J3,1 is not in place.
Watson-Marlow part numbers:
Molex Housing SL 0052
Molex Header SL 0024
Molex Terminal SL 0012
RS part numbers:
Molex Housing 467-605
Molex Header 467-554
Molex Terminal 467-598
7.0 Calibration
7.1 Location of preset potentiometers
