OWNER'S MANUAL
Page 19

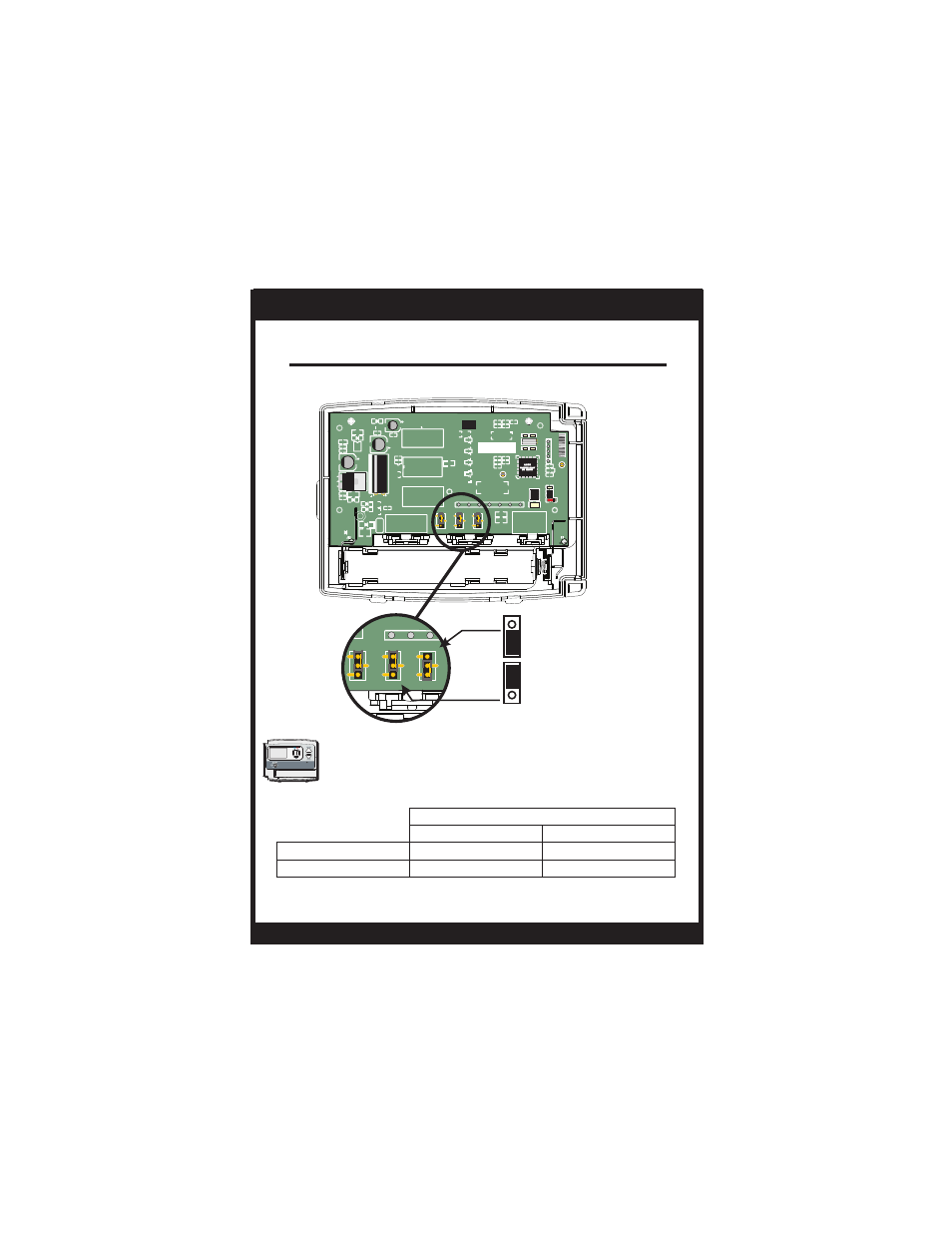

Jumper Configuration
OUTPUTS
No Demand
With Demand
Cooling Mode
Heating Mode
O/B*
Y, G, O/B*
O/B*
W, G, O/B*
*Output active depending on O/B jumper configuration - For normal
operation do not connect to equipment.
Cooling and Electric Heating
Residential Electric Heat units with a separately controlled fan.
T0130
Jumper #1 (J1) should be set for ELEC/HP and
Jumper #2 (J2) should be set for GAS/ELEC for
for typical electric heating with electric cooling.
Jumper #3 (J3) is not used.
ELEC/HP
GAS/ELEC
J1
J2
