Display
Page 3
O
UTSIDE
1
2
3
4
4
1
1
1
2
3
4

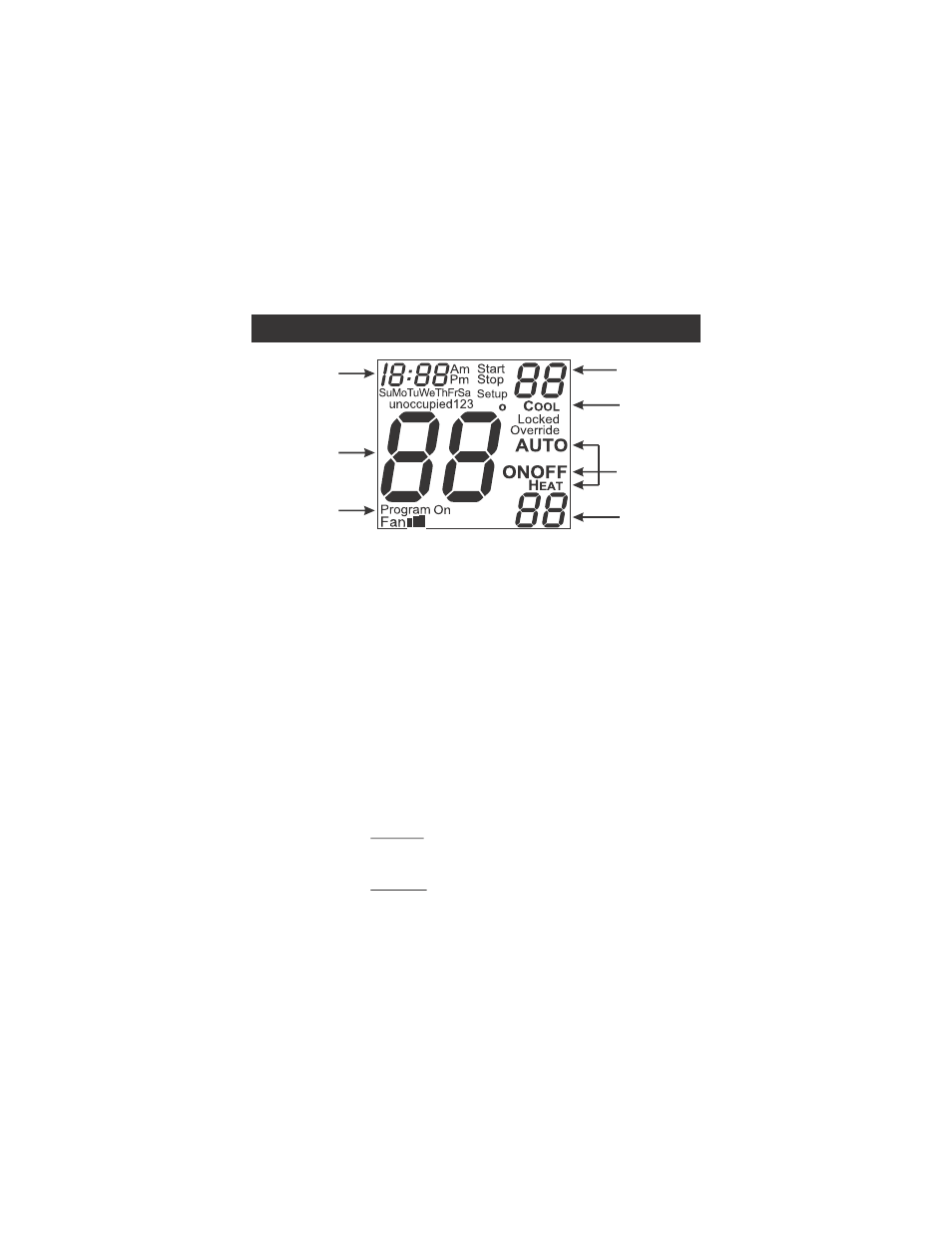

Mode Indicators - Pages 7-10
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the cooling mode.
AUTO - Indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
PROGRAM ON - Indicates the time period
program is enabled to run.
OFF - Indicates heating and cooling are turned off.
Clock with Day of the Week - Page 6
Indicates the current time and day. This clock is
also used to program the time period schedules.
Room Temperature Display
Indicates current room temperature.
Desired Set Temperature - Page 11
Indicates desired room temperature(s).
