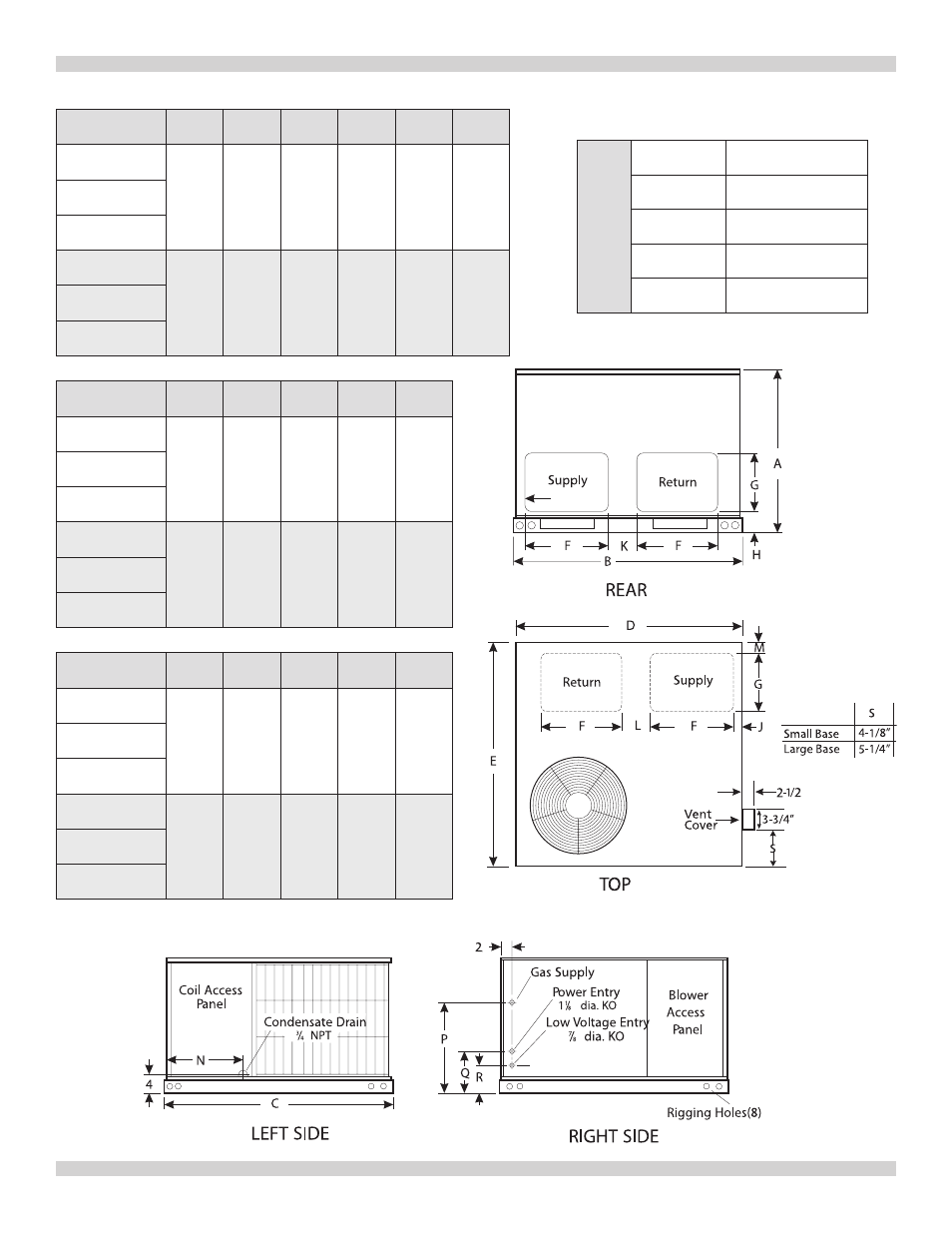

Dimensions (in.)
Model No.
A
B
C
D
E
F
RGE13-24
32-1/2
46-1/2
46-1/2
45-5/8
45-5/8
17-1/2
RGE13-30
RGE13-36
RGE13-42
34-1/2
55-1/2
50-1/2
54-5/8
49-5/8
21-1/2
RGE13-48
RGE13-60
Model No.
G
H
J
K
L
RGE13-24
11-1/2
5-1/2
1-5/8
4
4
RGE13-30
RGE13-36
RGE13-42
12
5-1/2
1-5/8
6-1/4
5-5/8
RGE13-48
RGE13-60
Model No.
M
N
P
Q
R
RGE13-24
1-3/4
15-5/8
20-5/8
9-7/8
5-1/2
RGE13-30
RGE13-36
RGE13-42
2-3/8
17-1/8
20-5/8
10-1/4
6
RGE13-48
RGE13-60
Minimum clearances to
combustible material
Front
24"
Left Side
12"
Right Side
15"
Back
2"
Above
48"
A
L
L
M
O
D
E
L
S
