www.desatech.com 31 113052-01D

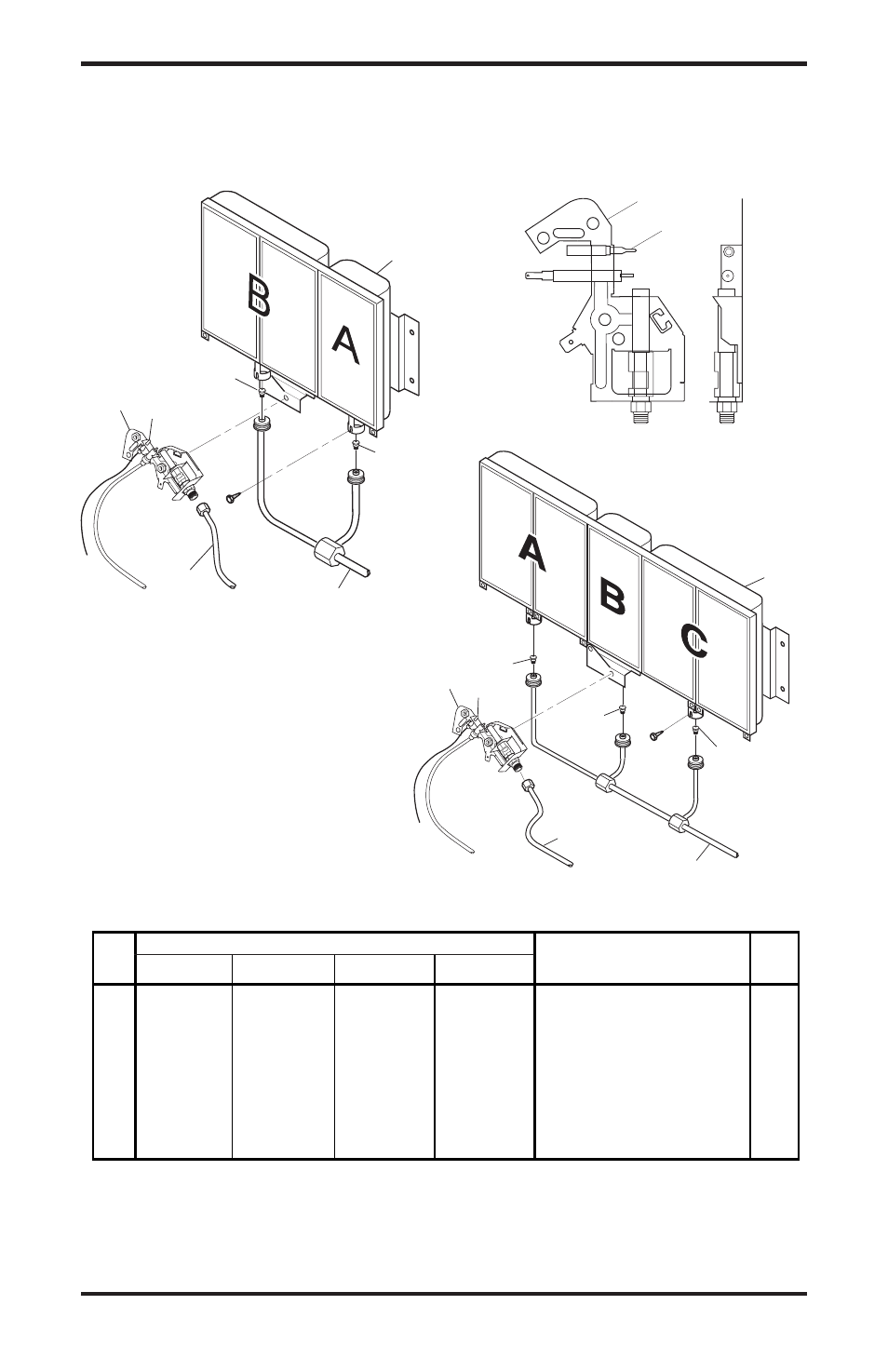

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
BURNER ASSEMBLY MODELS VP16TA, VN18TA, VP26TA AND VN30TA
This list contains replaceable parts used in your heater. When ordering parts, follow the instructions
listed under Replacement Parts on page 32 of this manual.
5
6
7
4
3
1
2
Burner Assembly VP16TA, VN18TA
KEY PART NUMBER
NO. VP16TA VN18TA VP26TA VN30TA DESCRIPTION QTY.
1 110803-02 110803-03 110803-02 110803-03 ODS/Pilot 1
2 110186-01 110186-01 110186-01 110186-01 Thermocouple Kit 1
3 105051-01 105051-01 099387-03 099387-03 Pilot Tubing 1
4 104818-03 104818-03 104818-04 104818-04 Outlet Tubing 1
5 099218-08 099218-08 099218-09 099218-09 Burner 1
6 099056-01 099056-02 099056-25 099056-24 Injector - Plaque A and C 1-2
7 099056-25 099056-24 099056-01 099056-02 Injector - Plaque B 1
2
ODS/Pilot
1
Burner Assembly VP26TA, VN30TA
5
6
7
4
6
3
1
2
