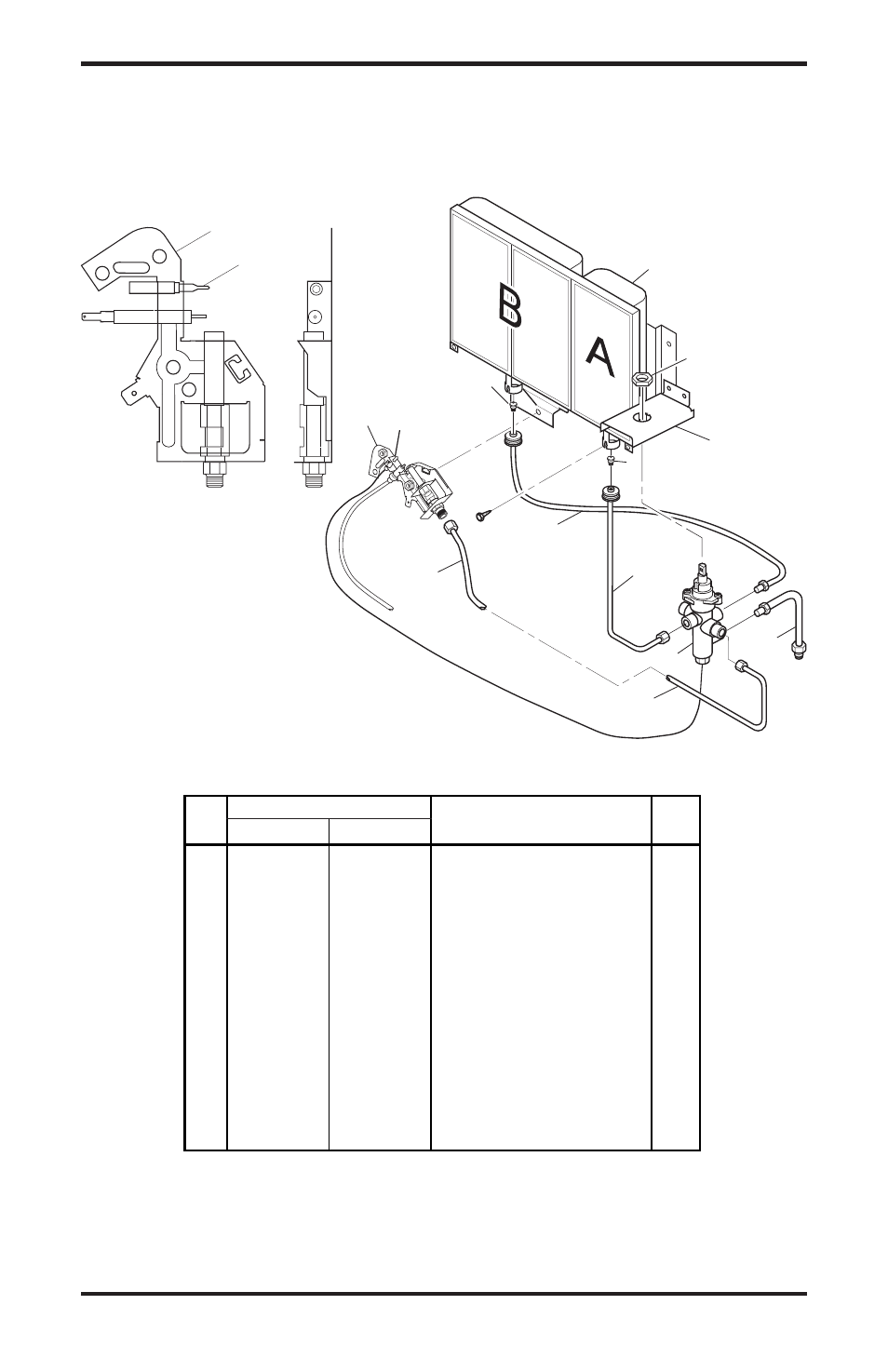

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
BURNER ASSEMBLY MODELS VP16A AND VN18A
This list contains replaceable parts used in your heater. When ordering parts, follow the instructions
listed under Replacement Parts on page 32 of this manual.
ODS/Pilot
5
7
10
8
11
12
9
4
4
1
6
3
Burner Assembly VP16A, VN18A
KEY PART NUMBER
NO. VP16A VN18A DESCRIPTION QTY.
1 110803-02 110803-03 ODS/Pilot 1
2 110186-01 110186-01 Thermocouple Kit 1
3 098200-03 098200-03 Control Valve Bracket 1
4 105051-02 105051-02 Pilot Tubing 1
5 099218-08 099218-08 Burner 1
6 098508-01 098508-01 Valve Retainer Nut 1
7 099056-01 099056-02 Injector - Plaque A 1
8 099056-25 099056-24 Injector - Plaque B 1
9 103844-01 103844-01 Control Valve 1
10 107660-01 107660-01 Inlet Tubing 1
11 103352-03 103352-03 Tubing-Valve to Plaque A 1
12 103352-04 103352-04 Tubing-Valve to Plaque B 1
2
2
1
