Tri Tool 302 Tube Squaring Micro Feed Assembly User Manual
Page 8
8
TRI TOOL INC.
92-0710 : Rev. 040218
Slide the feed adapter onto the end of the main housing.
Using a hex wrench through the middle of the feed adapter, rotate the button head
screw to thread it into the end of the feed shaft inside of the main housing.
Once the button head screw is tight, then install the four (4) cap screws, which hold
the feed adapter to the main housing.
Reinstall the feed cover by rotating the feed screw to thread it into the feed spacer.

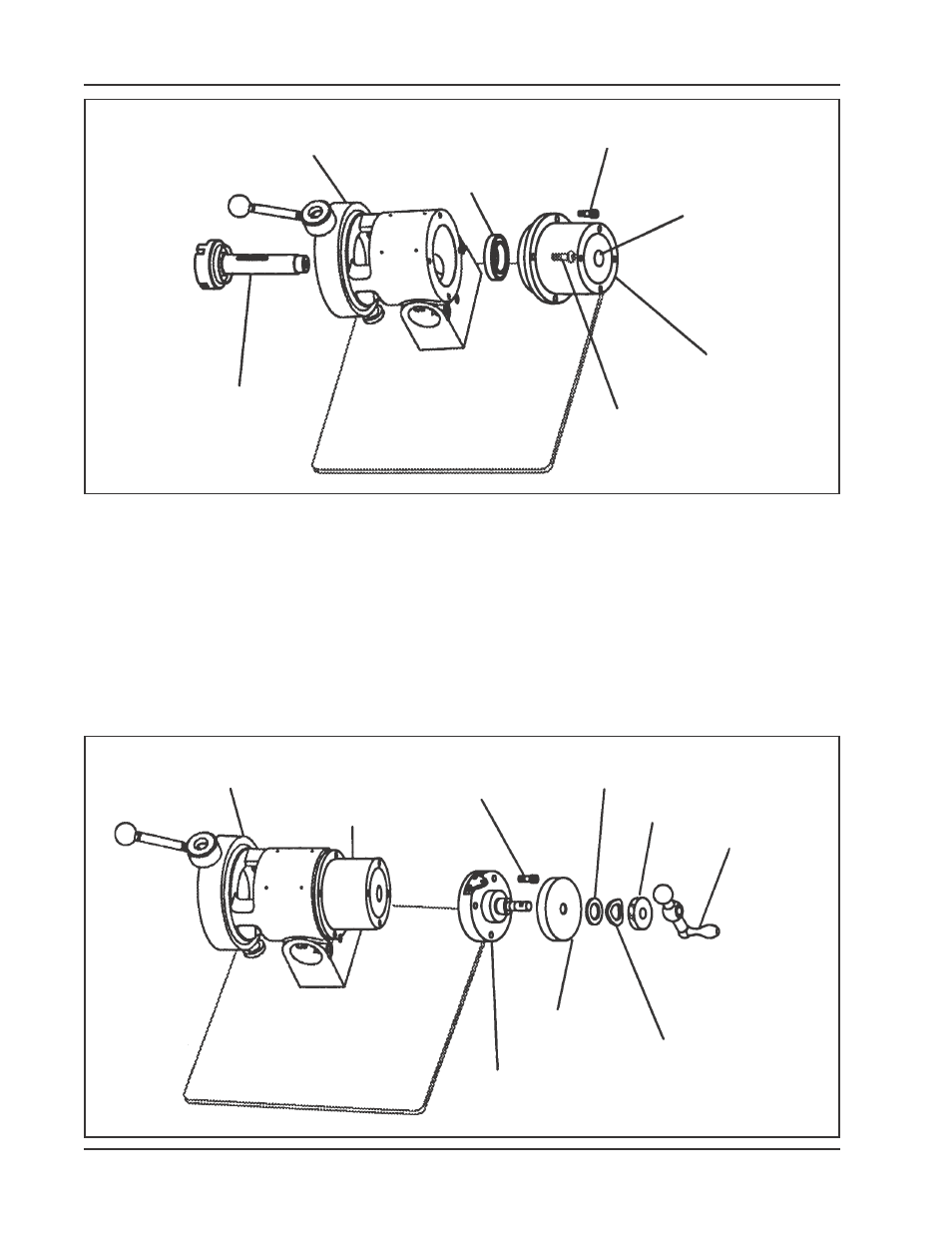

Cap Screws (4)
Main Housing
Thrust
Washer
Feed Adapter
Button Head Screw
Feed Adapter
Feed Shaft
Cap Screw (4)
Main Housing
Access to the
Button Head
Screw
Feed Cover
Indicator Dial
Ball Bearing
Feed
Handle
Lock Knob
Spring
Washer
