Model 204B, 206B, 212B EM Squaring Plate Kits
92-0878 : Orig. 000208

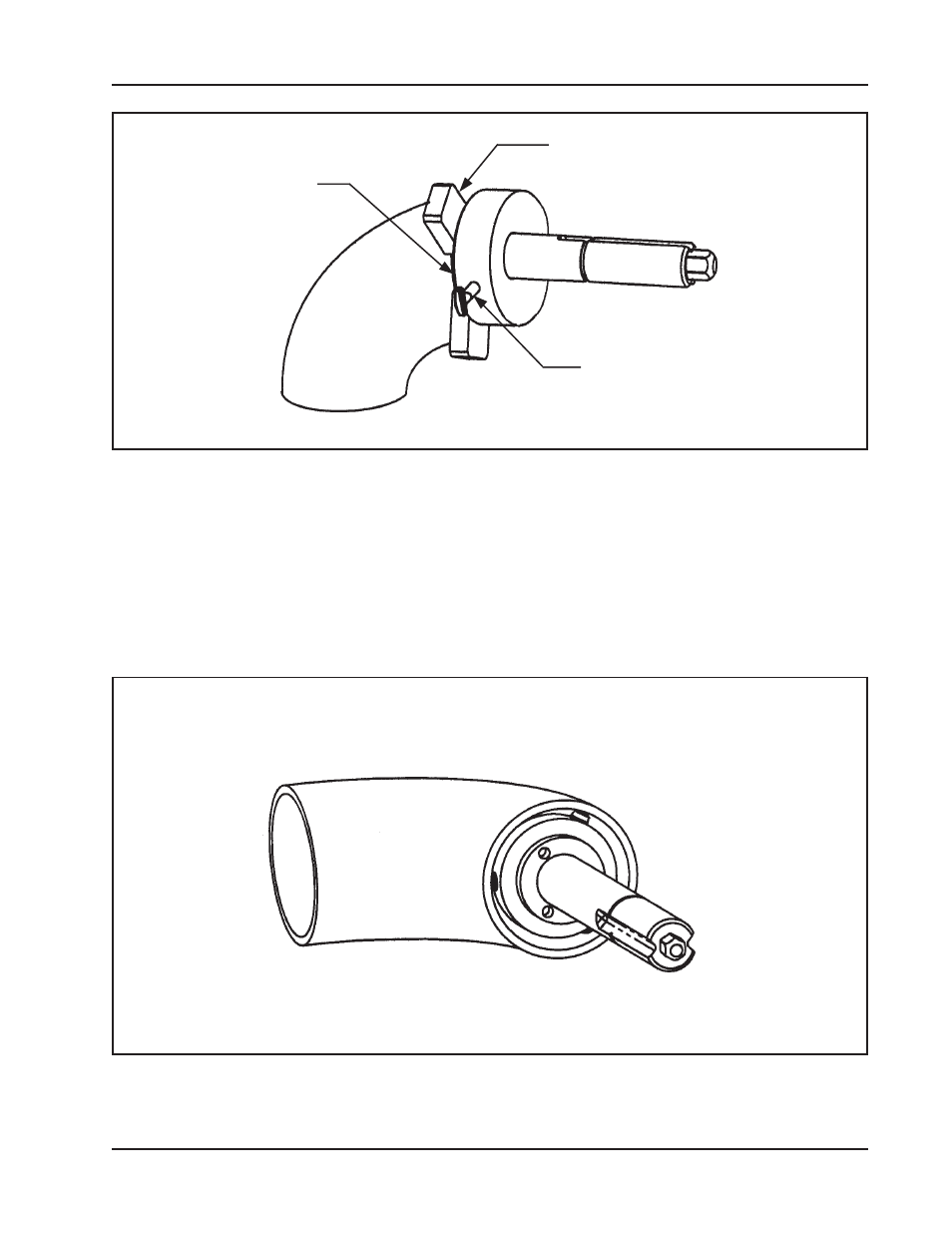

The (3) three extension arms should be in contact with the end of the elbow.
Turn the nut on the end of the elbow mandrel to extend the centering pins out to the
elbow I.D.
Once the centering pins are tight against the wall, loosen the thumb screw.
Slide the Squaring Plate Assembly off of the mandrel.
Elbow End
Extension Arm
Thumb
Screw
The mandrel is now ready for the Model 200B to be mounted on to it.
