6
TRI TOOL INC.
92-0878 : Orig. 000208
OPERATION
IN GENERAL

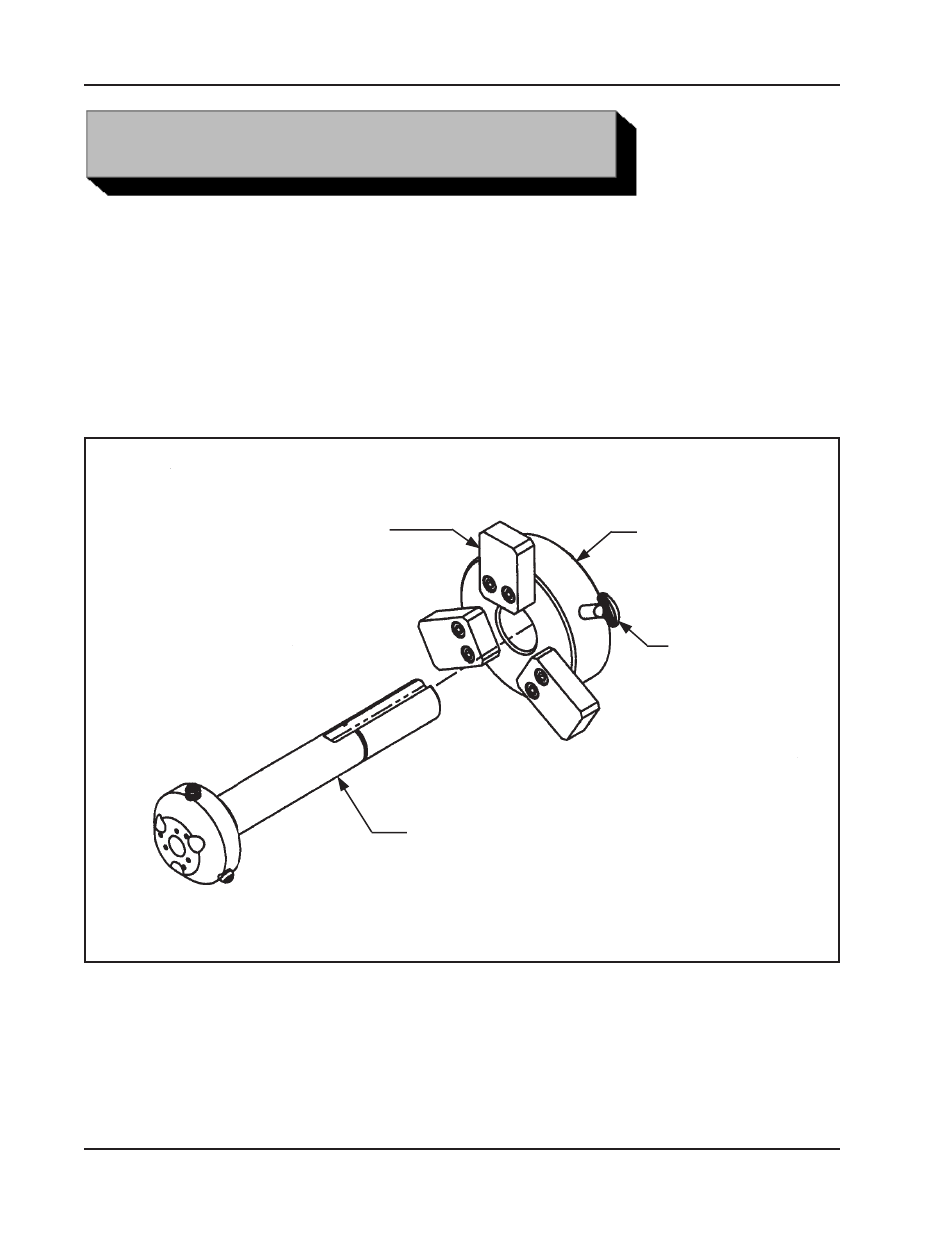

The Squaring Plate Assembly is designed to be used as an aide to setting up the
elbow mandrel in a pipe elbow.
Secure the (3) three extension arms on the Squaring Plate Adapter.
The end of the pipe elbow will be in contact with each when the center of the pipe elbow
is roughly the same as the center of the Squaring Plate Assembly.
Extension Arm
Squaring Plate
Adapter
Thumb
Screw
Elbow Mandrel
Slide the Squaring Plate Assembly over the back of the elbow mandrel shaft.
Tighten the thumb screw to secure the Squaring Plate Assembly to the elbow mandrel
shaft.
Slide the Squaring Plate Assembly and elbow mandrel into the end of the elbow.
