www.desatech.com 112462-01F 11
Minimum Clearances For Side Combustible
Material, Side Wall and Ceiling
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 6.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material and
protrudes 3 1 /
2
" from the wall. This combus-
tible material must be 4" from the side of the
fireplace opening (see Figure 6).
B. Clearances from the top of the fireplace
opening to the ceiling should not be less
than 36".
C. For mantel clearances, see Figure 10 on
page 13.

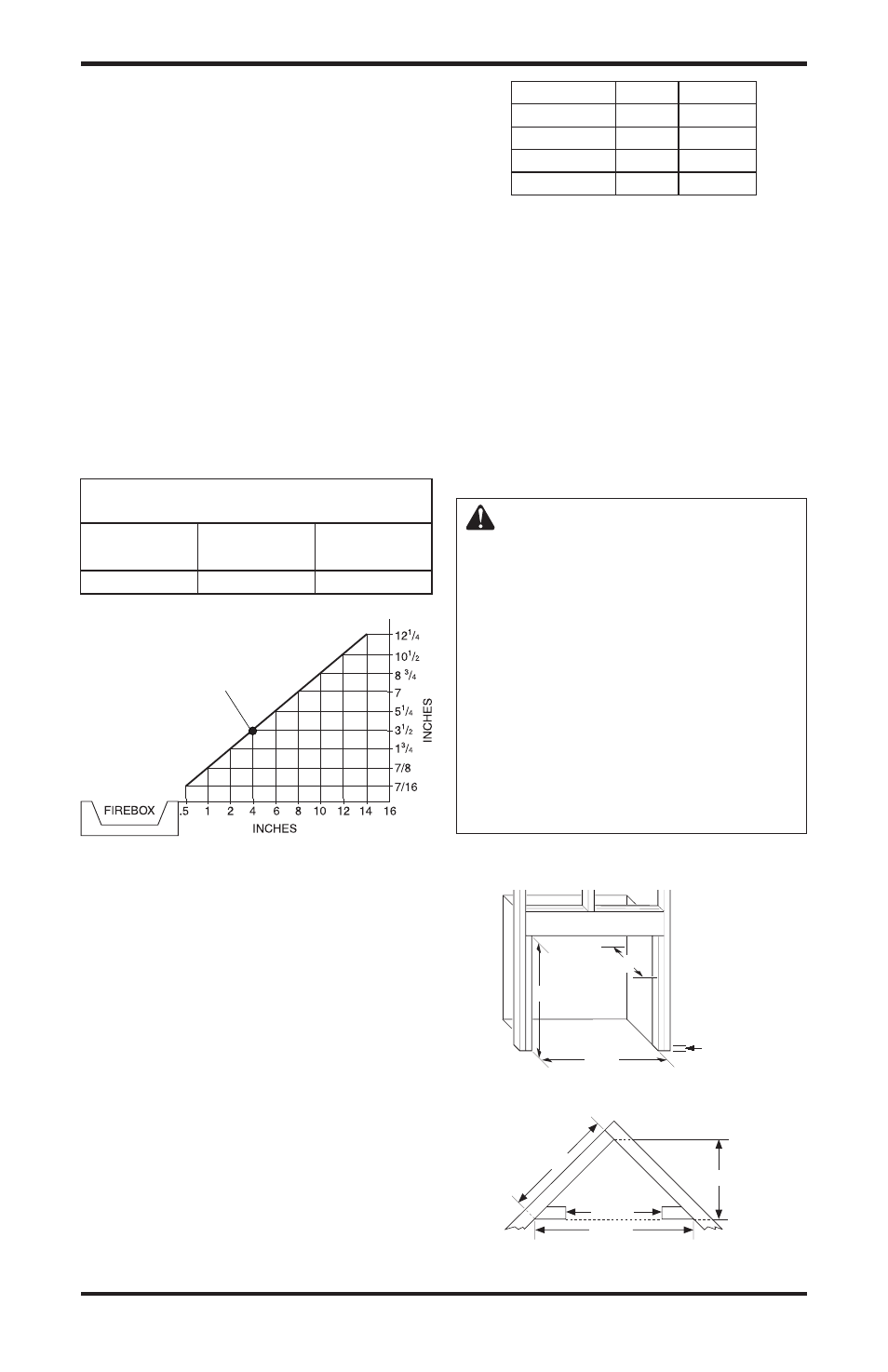

Figure 6 - Minimum Clearance for
Combustible to Wall
*Minimum 16 inches from Side Wall
*
Example
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
Top
Left and
Right Sides
Bottom and
Rear
36 " 6" 0"
INSTALLATION
Continued
Actual Framing
Height 26" 26 7 /
8
"
Front Width 26 3 /
4
" 26 7 /
8
"
Depth 9 1 /
2
" 10 1 /
2
"
Bottom 3/4" 3/4"
1. Frame in rough opening. Use dimensions shown
in Figure 7 for the rough opening. If installing in
a corner, use dimensions shown in Figure 8 for
the rough opening. The height is 26 7 /
8
" which
is the same as the wall opening above.
2. If installing GA3450TA blower accessory, do
so at this time. Follow instructions included
with blower accessory.
Note: If not installing blower accessory, you
may wish to run electrical wiring to your
fireplace for future blower installation (see
Accessories, page 40). Use only approved
three-wire electrical wiring.
WARNING: If pre-wiring, do
not connect wiring to any electri-
cal source at this time.
Install fireplace electrical outlet
and connect wiring to outlet
before connecting to electrical
source. The fireplace electri-
cal outlet is included with the
GA3450TA blower accessory.
Only use the fireplace electri-
cal outlet supplied with the
GA3450TA blower accessory.
Note: A qualified installer should make all electri-
cal connections.
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves install-
ing fireplace into a framed-in enclosure. This makes
the front of fireplace flush with wall. An optional
trim kit accessory is available (see Accessories,
page 40). Trim will extend past sides of fireplace
approximately 1/2". This will cover the rough edges
of the wall opening. If installing a built-in mantel
above the fireplace, you must follow the clearances
shown in Figure 10, page 13. Follow the instruc-
tions below to install the fireplace in this manner.
26 7 / 8
"
26 7 / 8
"
3/4" Off
The Floor
Minimum
10 1 /
2
"
Figure 8 - Rough Opening for Installing
in Corner
Figure 7 - Rough Opening for Installing
in Wall
36 5 /
8
"
25 7 / 8
"
51 3 / 4
"
26 7 / 8
"
