13

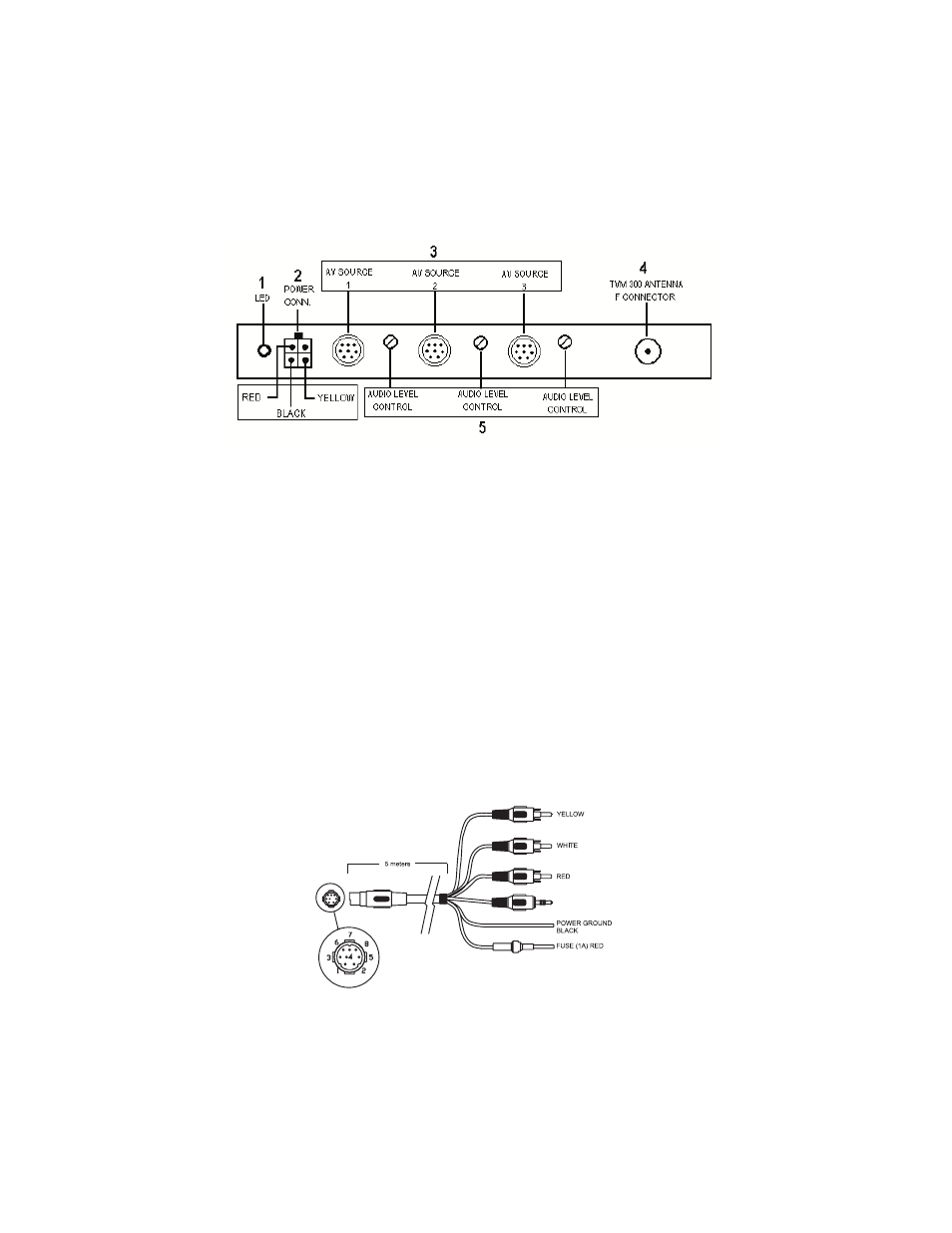

1. Indicator Led - Indicates power on/off
2. Power connector:
■ RED - Accessory power. Connect to
(+) 12 volt wire that turns on/off
with the ignition.
■ YELLOW - Constant power. Connect to
(+) 12 volt wire that has constant
power.
■ BLACK - Connect to (-) chassis
ground.
3. AV source - These are eight-pin DIN con-
nectors for three of the AV input zones.
Each connector provides input/outputs for
video, stereo audio, and Infrared remote
operation. For a guide to the capabilities
of the MCB 1000 refer to the System
Capabilities Diagram.
4. TV antenna connector - This is a standard
F-type TV antenna connector. It can be
connected to with Directed Video's TVA 10
telescoping antenna for broadcast TV or a
standard cable TV connection.
5. Audio level controls - These are
adjustable source audio input level con-
trols. When adjusting the system, all
source inputs should be matched for con-
sistent volume level when changing
sources.
IR EYE LINK
Low current only, or
else DO NOT connect
to source main power.
AV SOURCE DIN TO RCA
