Thermon TBX-3LC User Manual
Page 2
Installation Instructions
for BSX, RSX,
TSX, and VSX

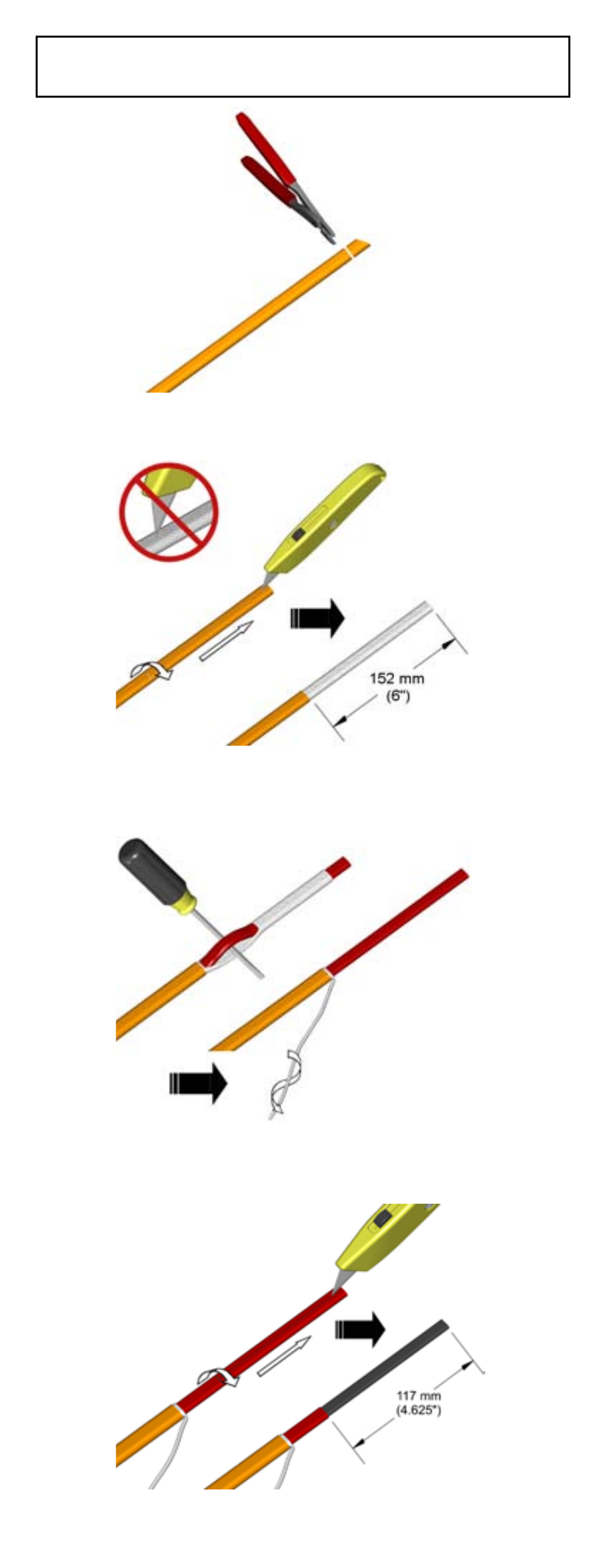

Cut and remove primary insulation jacket. Omit this
step for VSX cable.
4.
Cut and remove overjacket. Do not cut metallic braid.
Separate braid strands and pull cable through opening in
braid. Twist braid into a pigtail. Trim ends of braid.
3.
2.
Cut off end of cable.
1.
