Thermo Technologies SBB Solar Storage Tank - Manual (Page 7)

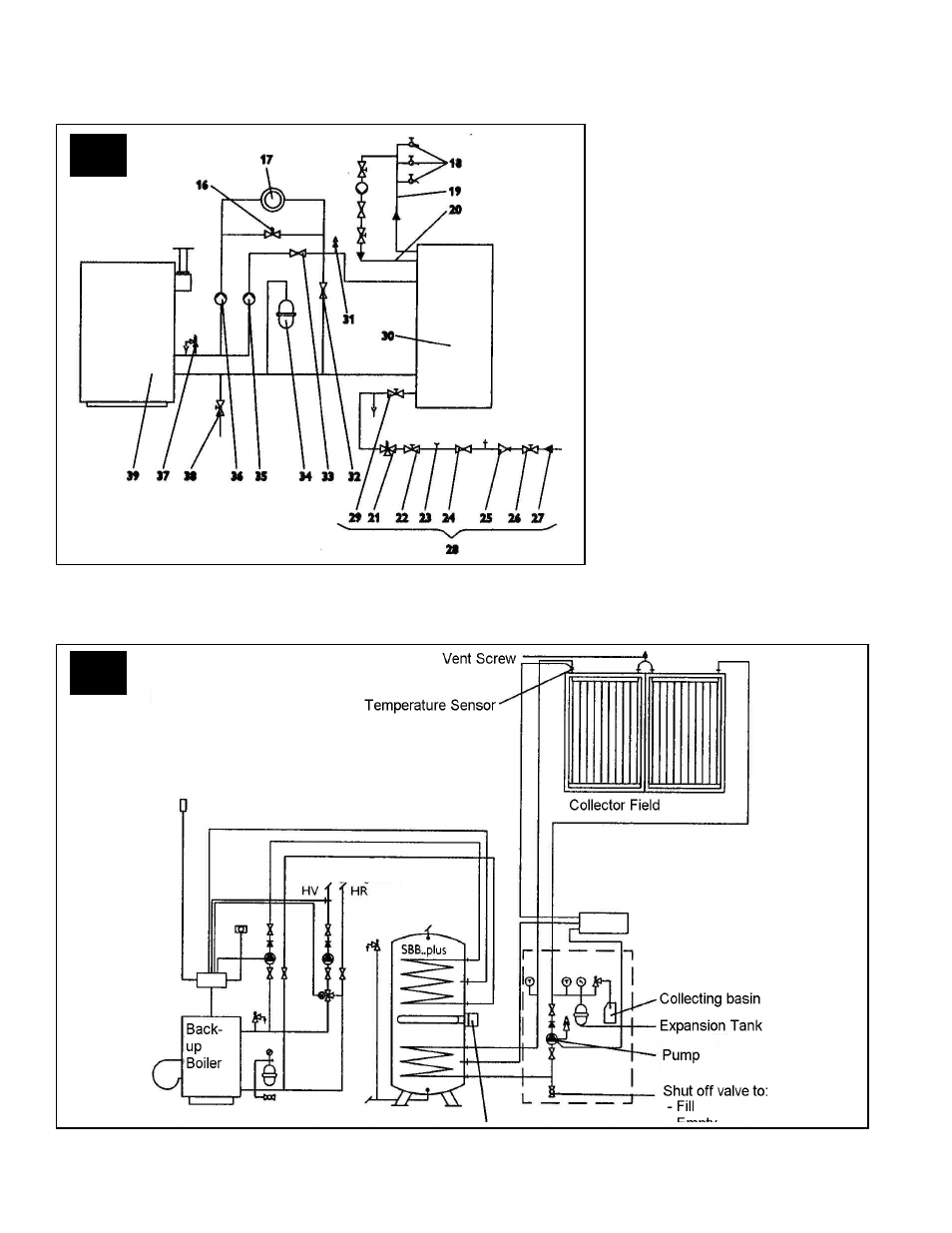

Installation Diagram Solar storage tank SBB plus
Diag. 4
System Diagram
16 overflow valve
17 heater unit
18 hot water processor
19 hot water heater
20 circulation pipe (only if needed)
21 membrane safety valve
22 shut-off valve
23 Manometer connector socket
24 check valve
25 pressure reducer
26 shut-off valve
27 cold water pipe
28 safety group
29 drainage faucet for the tank
30 SBB plus storage tank
31 exhaust valve
32 check valve
33 check valve
34 pressure expansion vessel
35 storage cycle pump
36 heating cycle pump
37 membrane safety valve
38 boiler filler and drainage faucet
39 boiler
