Denon Brand Company
D&M Building, 2-1 Nisshin-cho, Kawasaki-ku, Kawasaki-shi,
Kanagawa, 210-8569, Japan
www.denon.com
Denon Electronics (USA), LLC.
100 Corporate Drive, Mahwah, New Jersey 07430 USA
TEL: 201-762-6500 usa.denon.com
Denon Canada Inc.
505 Apple Creek Blvd, Unit 5, Markham, Ontario, Canada L3R 5B1
TEL: 905-475-4085 ca.denon.com
17600509 A
State-of-the-art Denon Solutions for
Maximizing Content Quality
• Robust power source for each block,
for stable supply of current
To produce a clear, stable power circuit that prevents unwanted
noise from aff ecting the sound, the AVR-1610 has a dedicated
CPU transformer that is separate from the audio and video
circuitry. The AVR-1610 is endowed with a powerful rectifier
circuit with 6,000 μF block capacitors and a bridge diode of 8A
capacity, surpassing typical models in this price range, to supply
stable current with negligible noise.
• Analog to HDMI up-conversion
Analog video input signals (composite, S-video, component) are
converted to digital video signals and transmitted to the HDMI
output port. Digital video signals are sent to the HDMI output
even when multiple HDMI devices such as a video camera or a
game console are connected to the AVR-1610. One HDMI cable
is all that’s needed to connect the AVR-1610 to a TV (monitor).
You can also use the On-Screen Display to check the AVR-1610’s
status.
• Dolby Pro Logic IIz processing (*1)
Dolby Pro Logic IIz introduces a new dimension to home
theater entertainment through the addition of a pair of front
height channels. Compatible with stereo, 5.1 and 7.1 content,
Dolby Pro Logic IIz provides enhanced spaciousness, depth
and dimension to movies, concert video and video game
playback while maintaining the full integrity of the source mix.
(*1) Dolby Pro Logic IIz playback requires a separate 2-channel power amplifi er.
• Minimum Signal Path for clear audio and video signal
The “simple and straight” design concept has been thoroughly
implemented in the signal paths to contribute to immaculately
clean audio and video playback. Signal paths are as short as
possible to keep signal degradation in the audio and video
circuitry to an absolute minimum.
• Direct Mechanical Ground Construction,
embodying concepts for thorough vibration
resistance
Vibration-resistant construction has been reviewed to
thoroughly suppress the adverse influences of vibration on
sound quality. The power transformers, a source of vibration,
have been securely mounted on the highly rigid bottom chas-
sis. Direct mounting of cast-iron feet to the radiator in near
proximity to each other serves to suppress mutual vibration
with the power transformers and other sources of vibration.
• Digital /analog separate transformer windings
• Compressed Audio Restorer to enhance
digital music fi les
Connectivity & Future-ready Expandability
• Audio/video playback and control
for iPod with optional dock (ASD-11R)
Ease-of-use
• Audyssey Dynamic Volume,
for real-time volume adjustment
Audyssey Dynamic Volume constantly monitors the sound
sources and adjusts the volume to the optimum level for
the particular source being heard without sacrificing dynamic
range. The AVR-1610 is also equipped with Audyssey MultEQ
which measures the acoustic characteristics of the room to
obtain the optimum acoustic effects, and Dynamic EQ which
reproduces the high and low range with the optimum acoustic
effect during low volume levels. Dynamic Volume combines
these two functions to achieve maximum performance.
• Audyssey MultEQ Auto setup and Room EQ
- Tower type microphone for more accurate measuring
- Up to six measurement points
- High level resolution fi lters for satellite speakers
and subwoofer
• Auto surround mode
• Audio Delay function (max. 6 frames or 200 mSec)
• Muting level settings (Full/-40dB/-20dB)
• Audio level memory, capable of correcting
diff erent signal levels for each input device
• Variable subwoofer crossover switching
*Design and specifi cations are subject to change without notice.
*“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
*DTS is a registered trademark and the DTS logos, Symbol, DTS-HD
and DTS-HD Master Audio are trademarks of DTS, Inc.
*HDMI, the HDMI logo and High-Defi nition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
*Audyssey MultEQ
® is a registered trademark of Audyssey Laboratories.
Audyssey Dynamic EQ ™ is a trademark of Audyssey Laboratories.
Audyssey Dynamic Volume™ is a trademark of Audyssey Laboratories.
*iPod
® is a trademark of Apple Inc., registered in the U.S. and other countries.
Main Specifi cations
Power amplifi er section Preamplifi er section
Rated output *THD fi gures are power amp stage values. Input sensitivity/impedance 200 mV / 47 kΩ/kohms
Front L/R 75 W + 75 W Frequency response 10 Hz ~ 100 kHz — +1, –3 dB (DIRECT mode)
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) S/N Ratio 98 dB (IHF-A weighted, DIRECT mode)
110 W + 110 W
(6 ohms, 1 kHz, THD 0.7%)
FM section
Center 75 W Tuning frequency range 87.5 - 107.9 MHz
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) Usable sensitivity 1.2 μV (12.8 dBf)
110 W
(6 ohms, 1 kHz, THD 0.7%)
AM section
Surround L/R 75 W + 75 W Tuning frequency range 520 - 1710 kHz
(8 ohms, 20 Hz - 20 kHz, THD 0.08 %) Usable sensitivity 18 μV
110 W + 110 W
(6 ohms, 1 kHz, THD 0.7%)
General
Power supply
AC 120 V, 60 Hz
Power consumption 4.3 A (Standby 0.3 W)
Dimensions (W x H x D) 17-3/32” x 6-47/64” x 14-27/32”
434 x 171 x 378 mm
Weight 20 lbs 8 oz, 9.3 kg

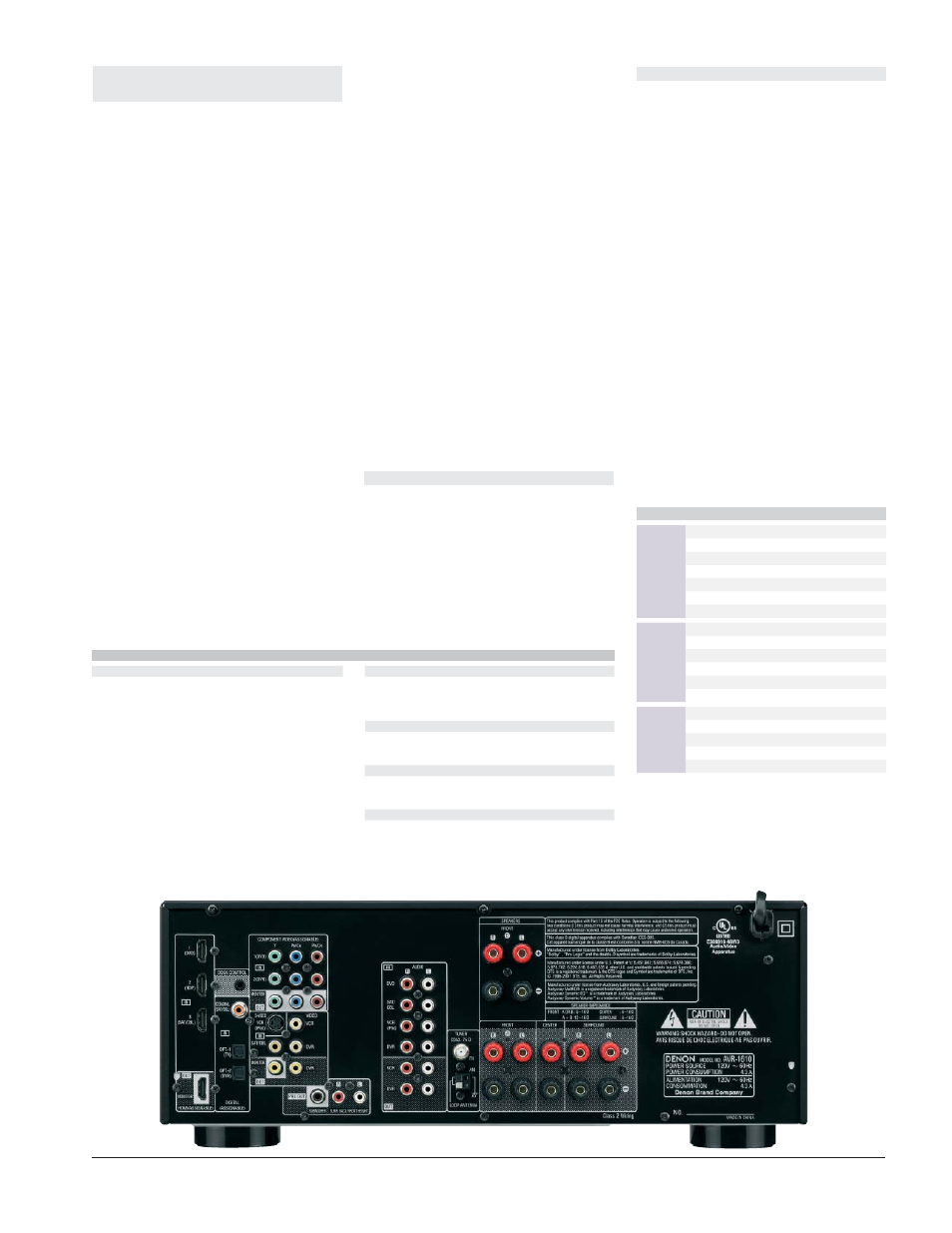

Ports
In HDMI x 3
Component x 2
S-Video x 1
Composite (Video) x 4
Analog Audio (Tuner included) x 6
Digital Optical x 2
Digital Coaxial x 1
Out HDMI Monitor x 1
Component Monitor x 1
Composite Monitor (Monitor / DVR) x 2
Analog Audio REC x 2
Audio Preout (Front hight L/R, SW) x 2
Phones x 1
Other Microphone Port x 1
Dock Control Port x 1
FM Tuner Antenna x 1
AM Tuner Antenna x 1
