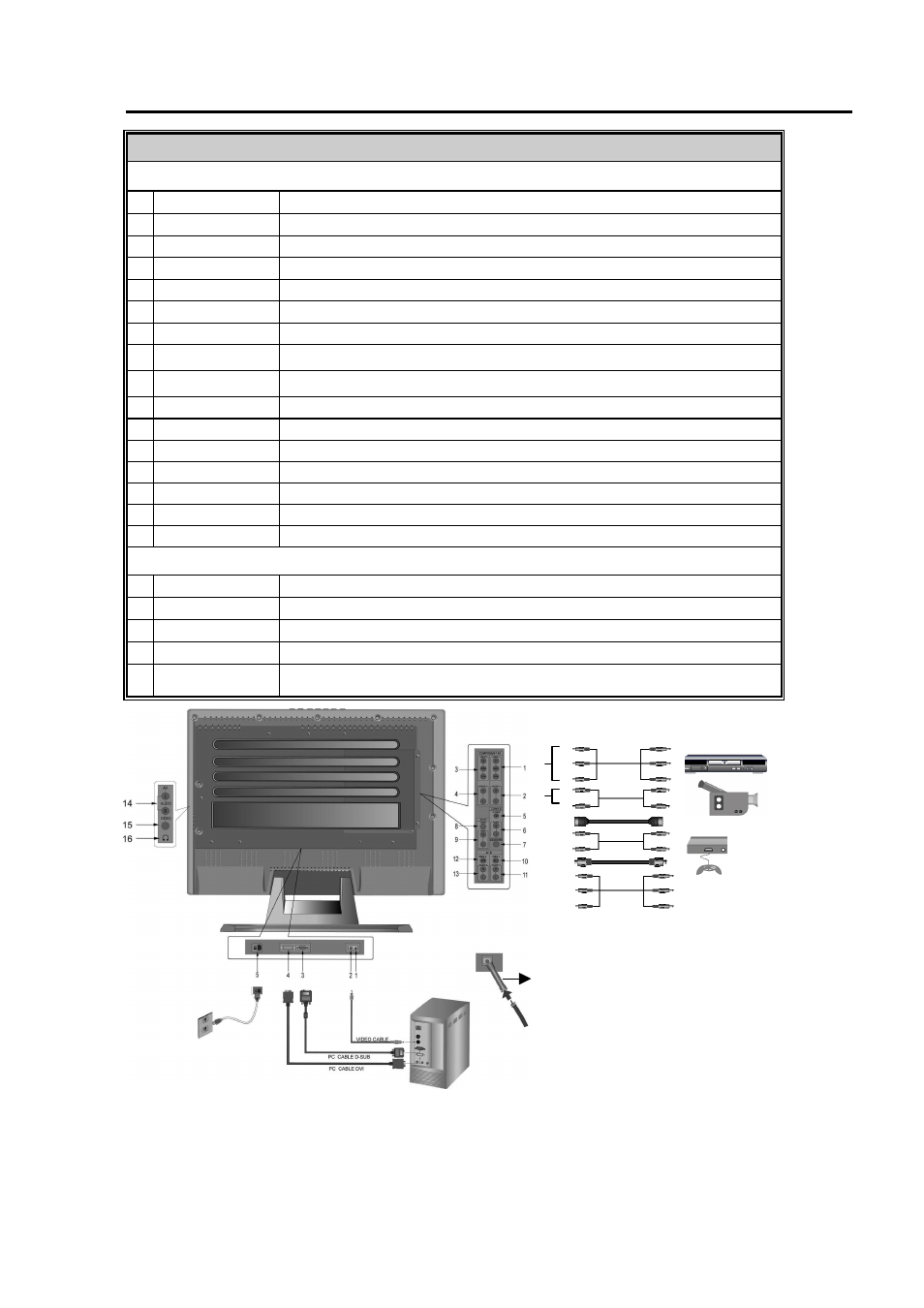

Rear View
Getting Started
REAR PANEL JACKS
Side View
1
Y1Cb1Cr1
Connecting to the Video component1 output terminal of the video output device.
2
Y1Cb1Cr1 Audio
Audio input terminal connecting to the audio output terminal of the video output device.
3
Y2Pb2Pr2
Connecting to the Video component2 output terminal of the video output device.
4
Y2Pb2Pr2 Audio
Audio input terminal connecting to the audio output terminal of the video output device.
5
S-video
Y/C S-video input terminal connecting to the S-output terminal of the video output device.
6
S-video Audio
Audio input terminal connecting to the audio output terminal of the video output device.
7
Sub-woofer
Connects the sub-woofer audio.
8
Video out
Video output terminal connecting to the input terminal of the video input device.
(The video output sources are only AV1, AV2, AV3 and TV)
9
Audio out
Audio output terminal connecting to the input terminal of the audio input device.
(The audio output sources are AV1, AV2, AV3 and TV)
10
AV 1 in
To connect the AV1 source.
11
AV 1 audio in
To connect the audio out of AV1 source.
12
AV 2 in
To connect the AV2 source.
13
AV 2 audio in
To connect the audio out of AV2 source.
14
AV 3 audio in
To connect the audio out of AV3 source.
15
AV 3 in
To connect the AV3 source.
16
Headphone
To connect to headphone.
Bottom view
1
PC Audio
Connect this terminal to the sound output terminal of your PC or Notebook.
2
ANT
Connect the coaxial cable or antenna.
3
D-sub
Connects to D-sub 15 pin analog output connector of the PC display card.
4
DVI for PC
Connects to DVI digital output connector of the PC display card.
5
AC in
Connect this terminal to the power cord supplied with Display, and a switch is attached
to turn on /off the power of unit.
Connect the
cable or
antenna
Use Y1Cb1Cr1/Y2Pb2Pr2,
AV, or S-video to connect
the VCR, DVD or the Video
Game.
Audio cable connects to PC audio
VGA cable connects to VGA card.
DVI cable connects to DVI card (if DVI cable is available)
Using ANT.
Adapter
included
DVD
CAM
GAME
Connect the
power supply
ANT
