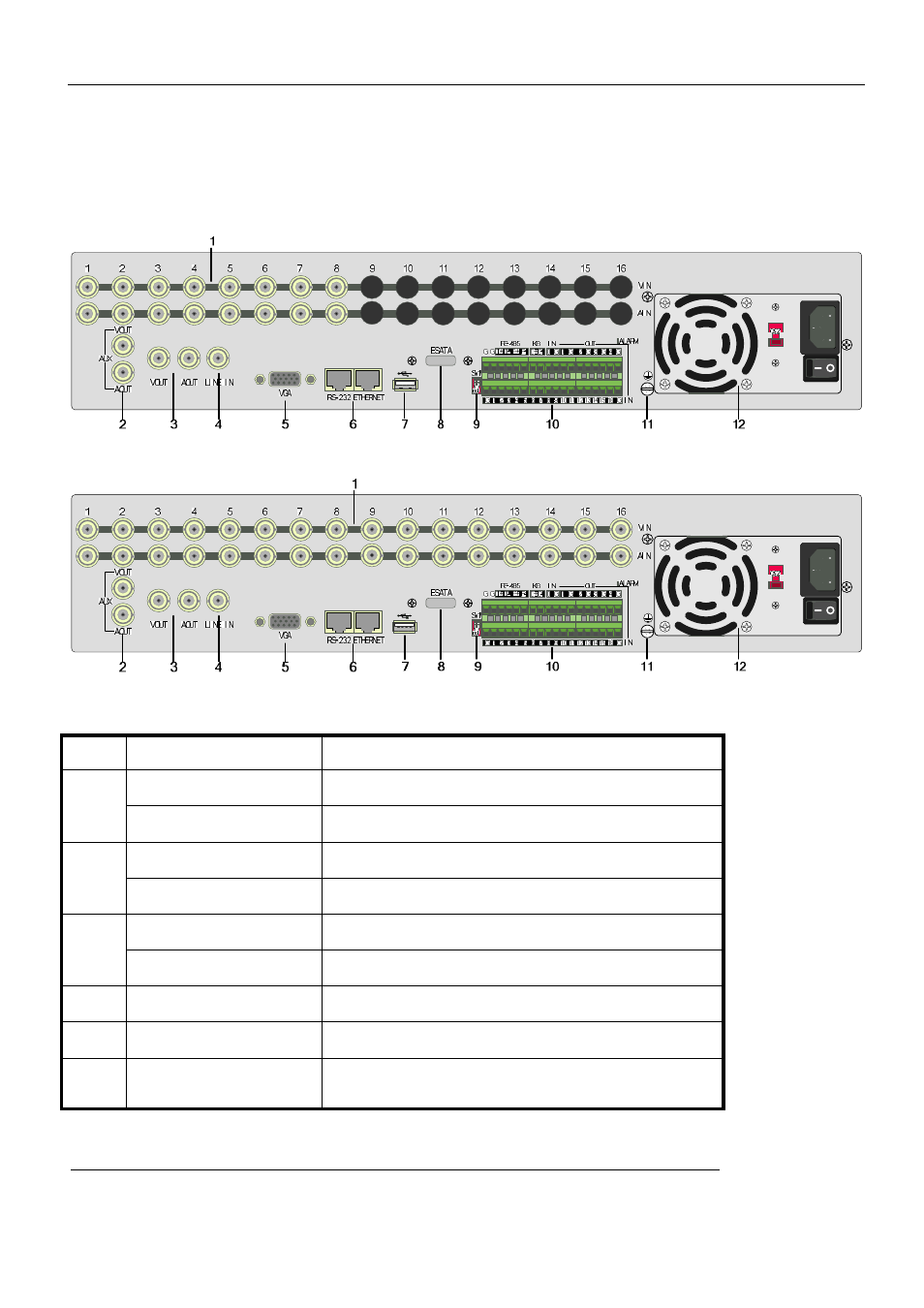

2.3.2 8-ch/16-ch QSC26408/16 Rear Panel
QSC26408 Rear Panel
QSC26416 Rear Panel
Index
Physical Interface
Description
1
Video Input
Standard BNC.
Audio Input
Standard BNC.
2
Aux video Output
Spot monitor for video preview and playback.
Aux audio Output
Spot monitor for audio preview and playback.
3
Main video output
Main monitor for video and menu.
Main audio output
Main monitor for audio preview and playback.
4
Line In
Audio line input for voice talk.
5
VGA Interface
VGA display.
6
RS-232
Connect RS-232 devices. Refer to Appendix B for pin
definition.
