8 107050
VENTED TYPE DECORATIVE APPLIANCE
EVGL850N
®
INSTALLATION
OPTIONAL REMOTE
CONTROL INSTALLATION
(Model WRC)
Note: If using optional wireless hand-held
remote control, the wall switch must be in
the ON position to be operational. The re-
mote control then becomes the switching
mechanism for fireplace operation.
1. The WRC model receiver does not re-
quire a battery. The receiver can be in-
stalled by first plugging the short ex-
tension cord into the fireplace recep-
tacle. Then plug the receiver unit into
the extension cord. Finally plug the ig-
nition module plug into the receiver unit
(see Figure 12).
2. Activate the remote handset battery by
removing the insulating tab on the back
of the handset (see Figure 13). The bat-
tery is included pre-installed.
3. Once the battery is activated the unit is
ready to use.
WALL SWITCH
INSTALLATION (EVGL850N)
The installation of a wall switch allows you
to activate the gas control valve and turn the
fireplace on and off. The wall switch is to be
connected to the incoming 120 volt regular
household wiring that supplies the electric-
ity to the fireplace. Refer to wiring diagram
in this manual on page 14.

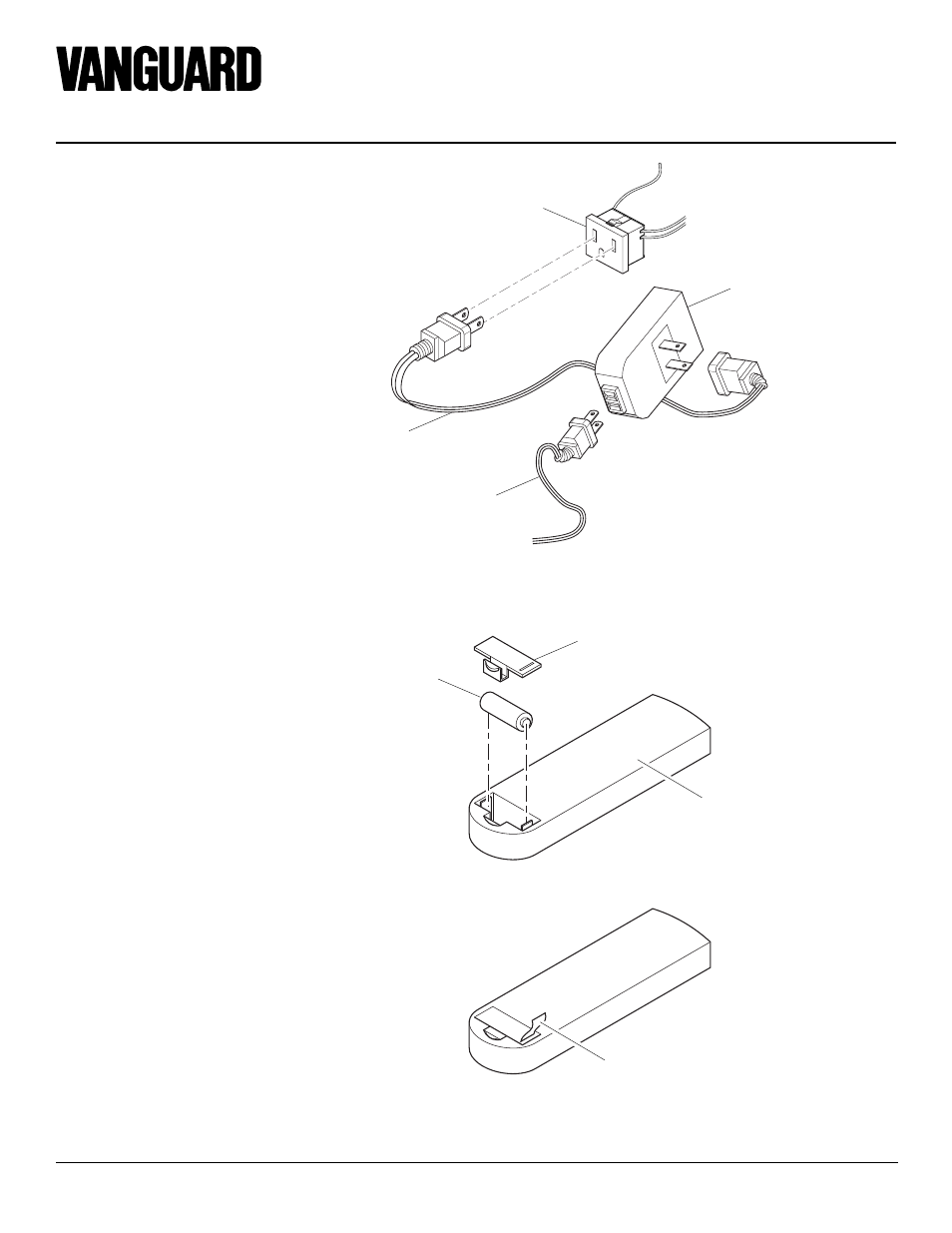

Figure 13 - Installing Battery into Back of Handset
Pull to Remove
Insulation Tab
Battery Cover
12 Volt Battery
Figure 12 - Installing the WRC Remote Receiver
Fireplace
Receptacle
Remote Control
Receiver
Extension Cord
Ignition Module Plug
Back of Handset
