Diagram 1 diagram 2 – Definitive Technology UIW RCS II User Manual
Page 9
9

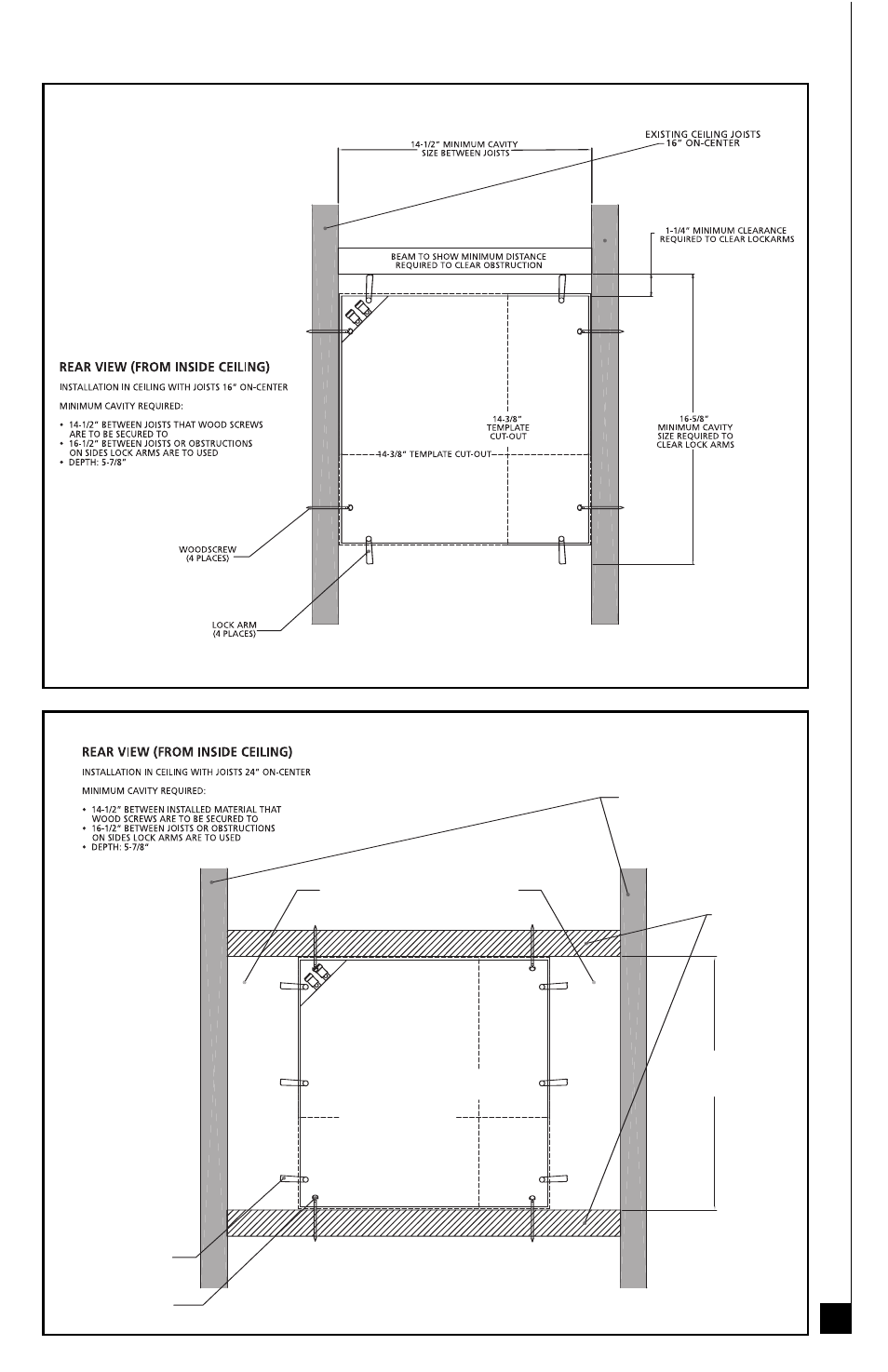

NOTE: UNIT DOES NOT NEED TO BE CENTERED
BETWEEN JOISTS. ALLOW FOR 1-1/4” OF CLEARANCE
ON EACH SIDE OF CLEAR LOCK ARMS
EXISTING CEILING JOISTS
24” ON-CENTER
ADDED FRAMING
MATERIAL
14-1/2”
CAVITY SIZE REQUIRED
BETWEEN INSTALLED
FRAMING MATERIAL
WOODSCREW
(4 PLACES)
LOCK ARM
(6 PLACES)
14-3/8” TEMPLATE CUT-OUT
14-3/8”
TEMPLATE
CUT-OUT
Diagram 1
Diagram 2
