ENGLISH
4
ENGLISH
Getting Started

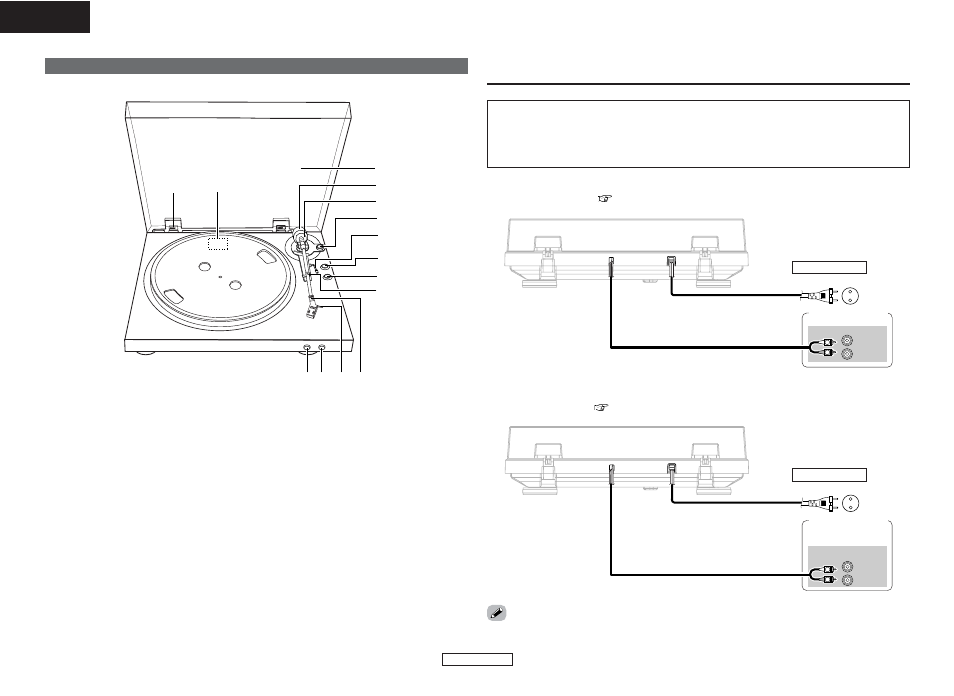

Part names and functions
!1
i
o
y
t
r
!2
!3
!4
u
e
w
q
!0
Connections
R
L
PHONO IN
Pre-main amplifier
R
L
• If the player starts operating when the power supply cord is plugged in, press the STOP button.
q
START button ·············································(5)
• Starts playback.
w
STOP button ···············································(5)
• Stops playback.
e
Finger catch
r
Lock nut ··················································(2, 7)
t
Armrest
y
SIZE button (£ 17 / ¢ 30) ······················(5)
• Set according to the size of the record to be
played (30 cm or 17 cm).
u
SPEED button (£ 45 / ¢ 33) ··················(5)
• Set according to the speed (revolutions per
minute) of the record to be played.
i
Lifter lever ···················································(3)
o
Anti-skating knob·······································(3)
!0
Stylus pressure adjustment ring ··············(3)
!1
Counterweight············································(3)
!2
Dust cover ···················································(2)
!3
Equalizer switch ·········································(2)
!4
Dust cover hinge ········································(2)
AC 230 V, 50 Hz
Power outlet
NOTE:
• Turn off the power of the device to which the record player is being connected. Do not plug the
record player’s power plug into a power outlet until all connections are finished.
• Check that all connections are proper, then plug the record player’s power plug into the AC outlet on
the amplifier or into a household AC power outlet.
¢ When connecting to the PHONO input terminal
Equalizer switch : OFF (
page 2)
R
L
AUDIO IN
(AUX IN)
Pre-main amplifier
or
audio system
R
L
¢ When connecting a terminal other than the PHONO input terminal
Equalizer switch : ON (
page 2)
Pin-plug cable
(length: approx. 1.0 m)
AC 230 V, 50 Hz
Power outlet
For details on the functions of these parts, refer to the pages given in parentheses ( ).
