REMKO TX 9000 - Manual (Page 7)

7

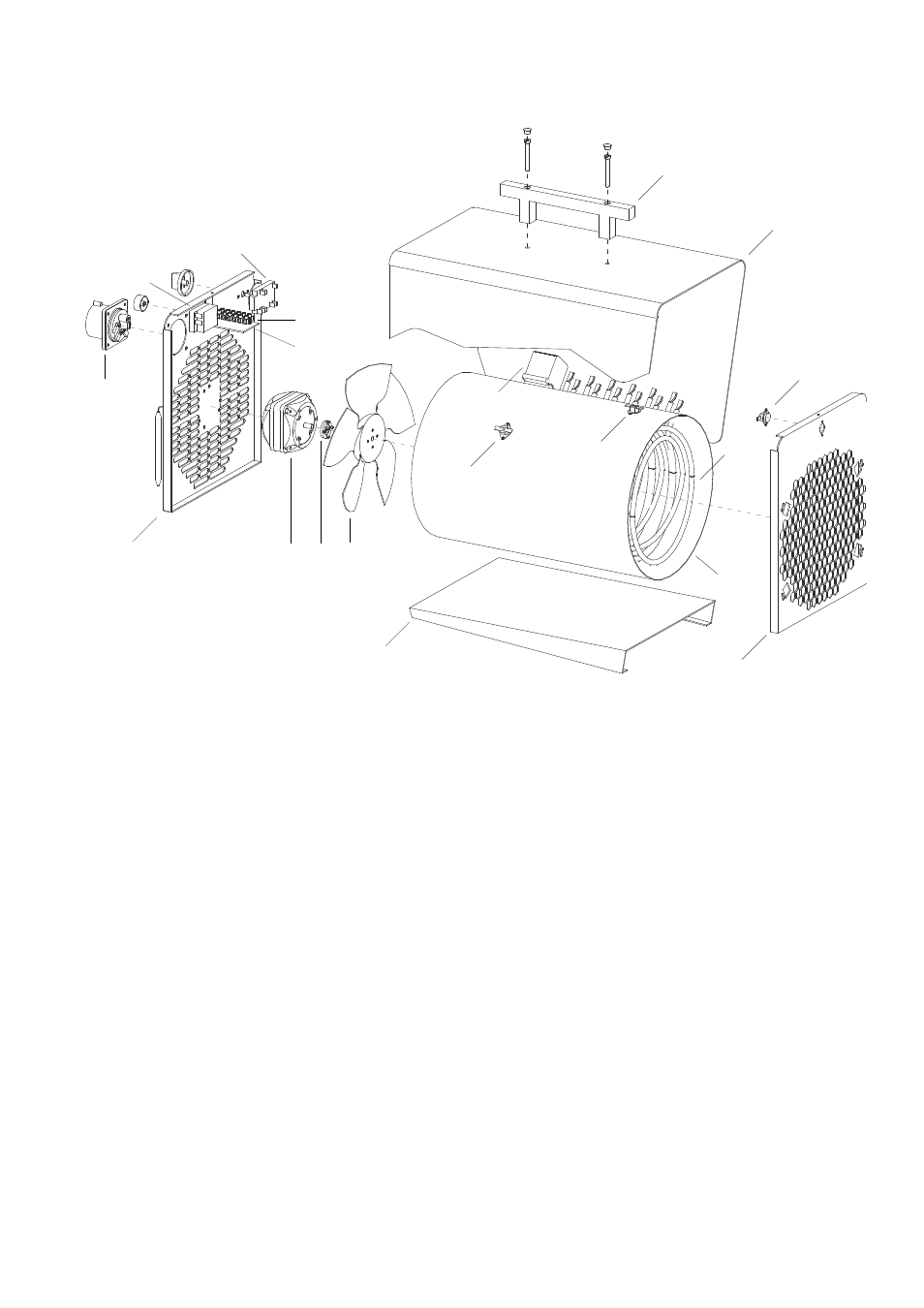

Exploded View
Nr. Description Ref.-No.
1 transport handle 1101142
2 outside casing 1101080
3 recool thermostat 1104065
4 temperature limiter 77 °C 1101161
4a temperature limiter 70 °C 1101081
5 inside casing 1101082
6 heating element (1 from 6) 1101083
7 front panel 1101084
8 base plate 1101085
9 fan blade 1101086
10 clutch plate 1108014
11 fan motor (400 V) 1101087
12 rear panel 1101088
13 CEE-mains plug 1101089
14 room thermostat with sensor 1101066
15 operating switch 1101090
16 terminal strip, 6 fold 1101366
17 angle support 1101091
18 contactor 1101092
not shown protection socket, small 1101304
CEE-connecting cable with plug and socket, 5 meter 1011215
Spare Part List
7
9 10 11
12
14
16
15
4
1
2
4a
5
6
8
13
17
3
18
We reserve the right to make modifications in dimensions and construction in the interests of technical progress.
