Dacor ERD60 - Manual (Page 2)

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
5.8
60” wide,
Epicure™ range
ErD60
Rearwall
Vertical
non-combustible
surface
60 1/8”
(1527mm)
10”
(254mm) Min. to
Combustible side wall
(both sides)
25”
(635mm)
Countertop Countertop

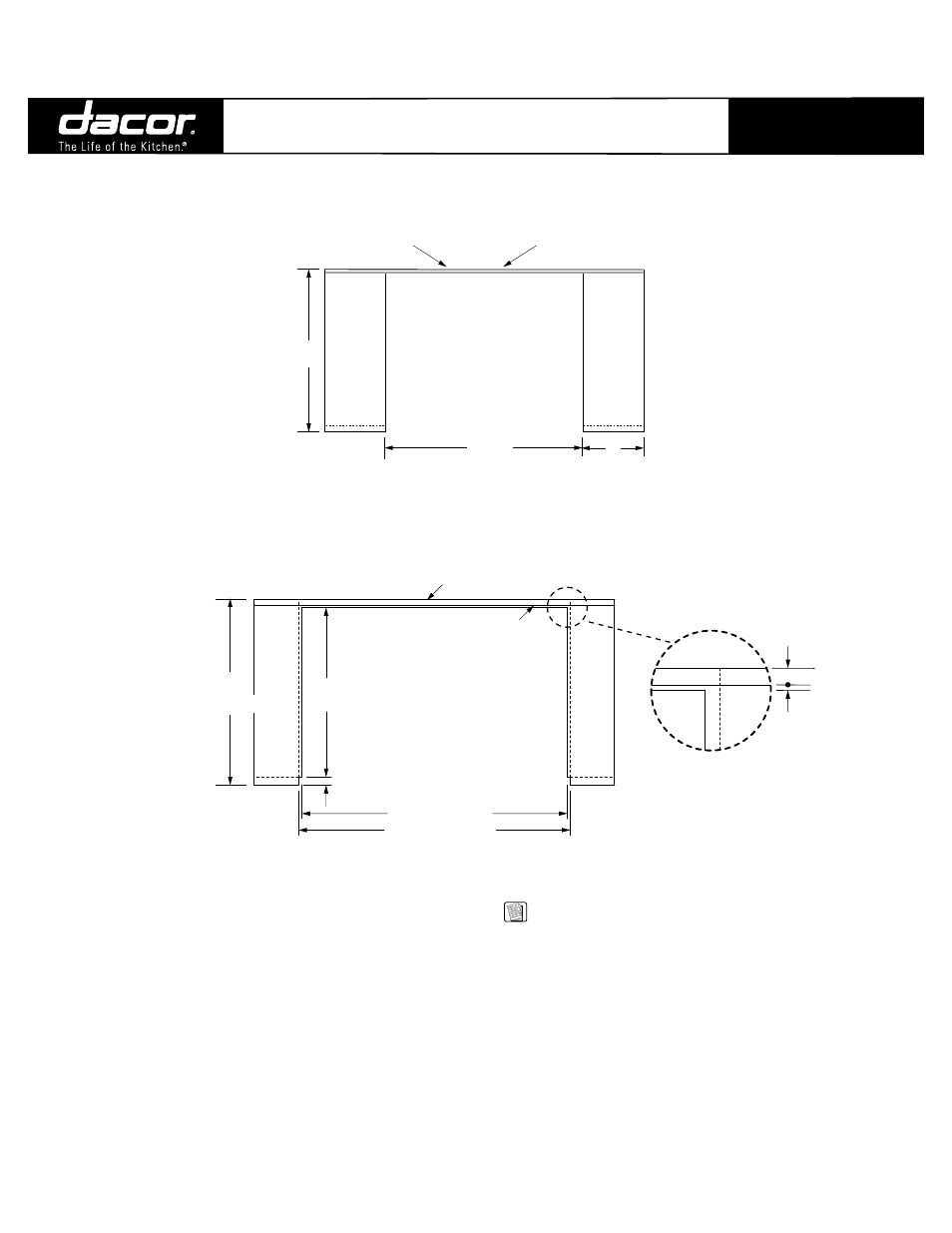

CoUNTErToP CAbINET DImENsIoNs
(Slide-In, Freestanding Installation)
59 1/4" (1505mm)
60 1/16" (1526mm)
3/4" (19mm)
Max. backsplash
1/4" (6mm)
Min. flat ledge
13/16" (21mm)
23 3/16"
(589mm)
Vertical
non-combustible
surface
Rear wall
25”
(635mm)
Countertop Countertop
CUToUT DImENsIoNs
(Slide-In, Self-Rimming Installation with Side Panels and Backguard Removed.)
NOTE:
1. When backguard is removed, the side panels must
be removed.
2/3 092105
