Directed Audio 300/2 - Manual (Page 7)

7
© 2003 Directed Electronics, Inc
1. HHiigghh LLeevveell IInnppuutt CCoonnnneeccttoorr - Accepts
1v to 10v input from the headunit’s
speaker output.
2. RRCCAA OOuuttppuutt JJaacckkss -- These pass
through RCA jacks can be used to
send the input signal to a second
amplifier.
3. RRCCAA IInnppuutt JJaacckkss -- Accepts line level
outputs from head units or signal
processors at voltages between
150mV and 8 volts.
4. IInnppuutt GGaaiinn AAddjjuussttm meenntt -- Controls
amplifier sensitivity and is used to
match the input level of the ampli-
fier to the output level of the signal
source.
5. CCrroossssoovveerr SSeelleeccttiioonn SSw wiittcchh --
Controls the type of filter for the on-
board active crossover. FLAT does
not attenuate any frequencies and
is for full-range speaker systems.
HPF attenuates low frequencies and
is used for mid-range speakers and
tweeters. LPF attenuates high
frequencies and is used for
subwoofers speakers.
6. BBaassss EEQQ SSw wiittcchh - Adds an additional
8 db of boost to the speaker output
when on.
7. SSttaattuuss LLEEDD - Will light GREEN to
indicate the amplifier is on and
operating normally, and will be off
if the amplifier shuts down due to
short circuit, DC offset, or over-
heating detected by on-board
protection circuitry.
FRONT PANEL CONNECTIONS/CONTROLS 200/2 - 300/2

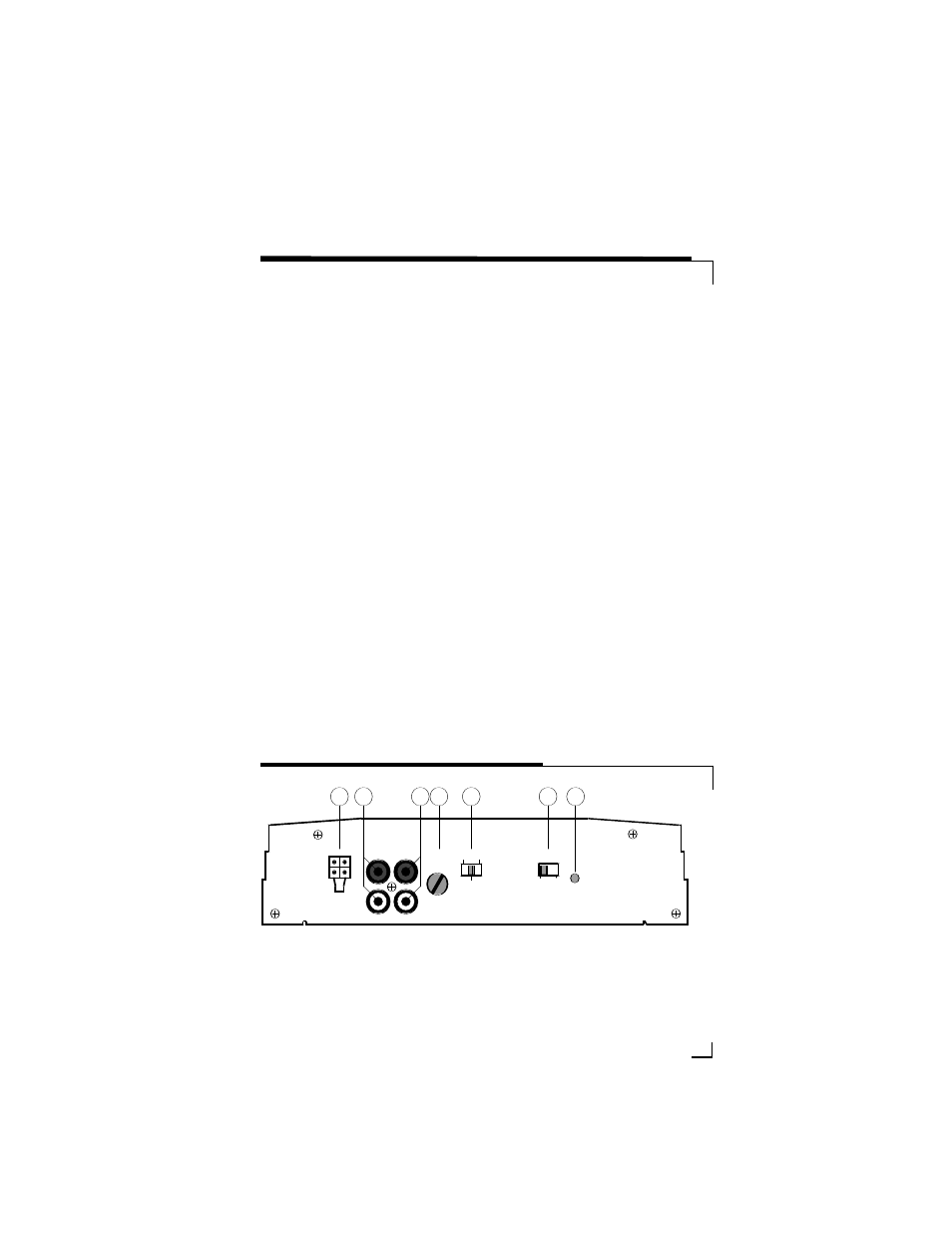

FIGURE 1—AMPLIFIER CONNECTIONS 200/2 - 300/2 FRONT
POWER
BASS EQ.
OFF ON
LPF HPF
FLAT
HIGH
INPUT
+
-
OUTPUT INPUT
R
L MAX MIN
R L
1 2 3
GAIN
4 5 6 7
