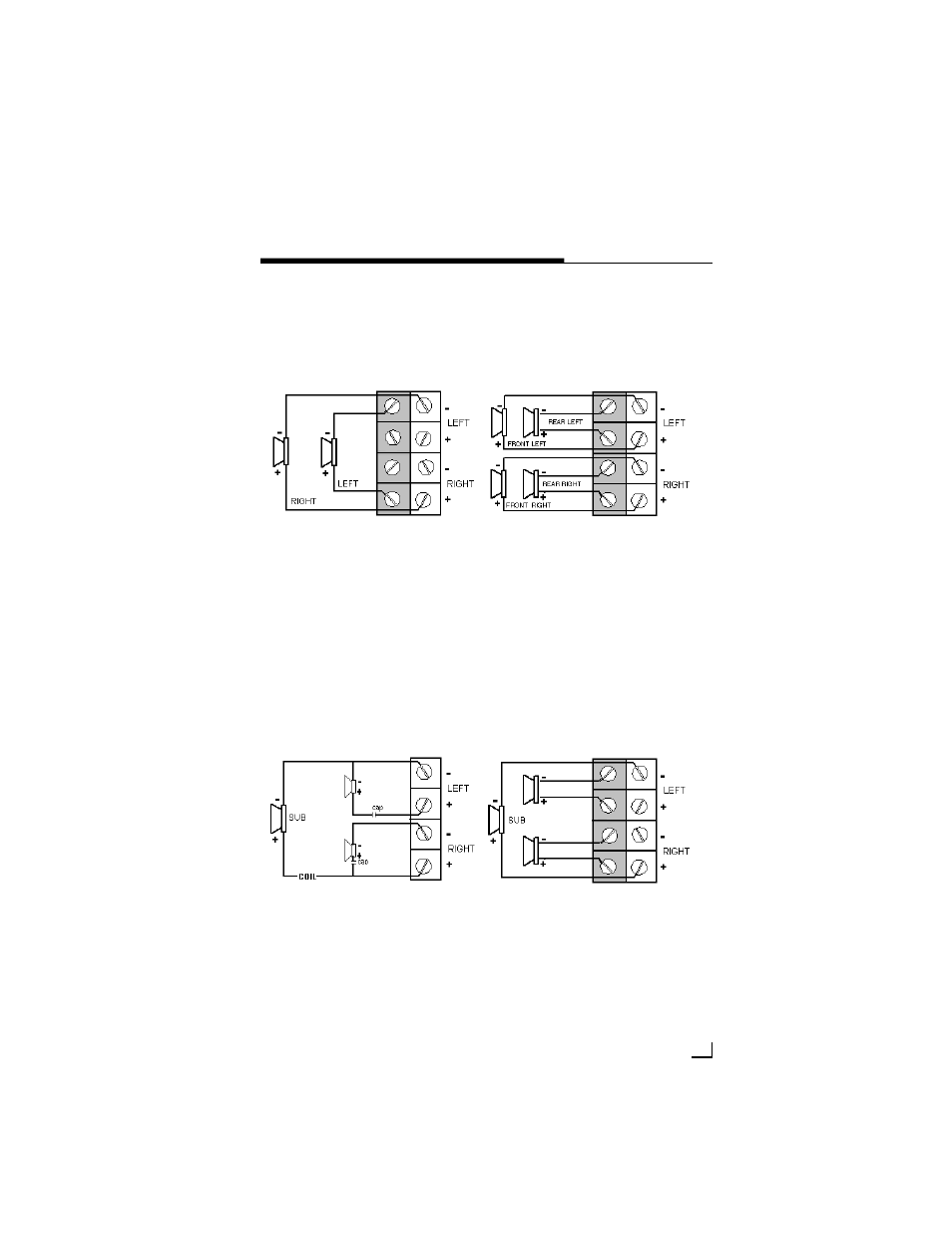

SPEAKER WIRING DIAGRAMS 250/4

Simultaneous stereo/mono operation

(top view)

NNOOTTEE::

For bridged two channel operation as shown in this diagram, connect right channel RCA cables to the front inputs of the
amplifier, and left channel RCA cables to the rear inputs of the amplifier. For summed subwoofer applications, connect
RCA cables per the input jack marking.

Stereo Operation

(top view)

Two Channel Stereo

Four Channel Stereo

Simultaneous

Two Channel Stereo with Mono Sub
