15

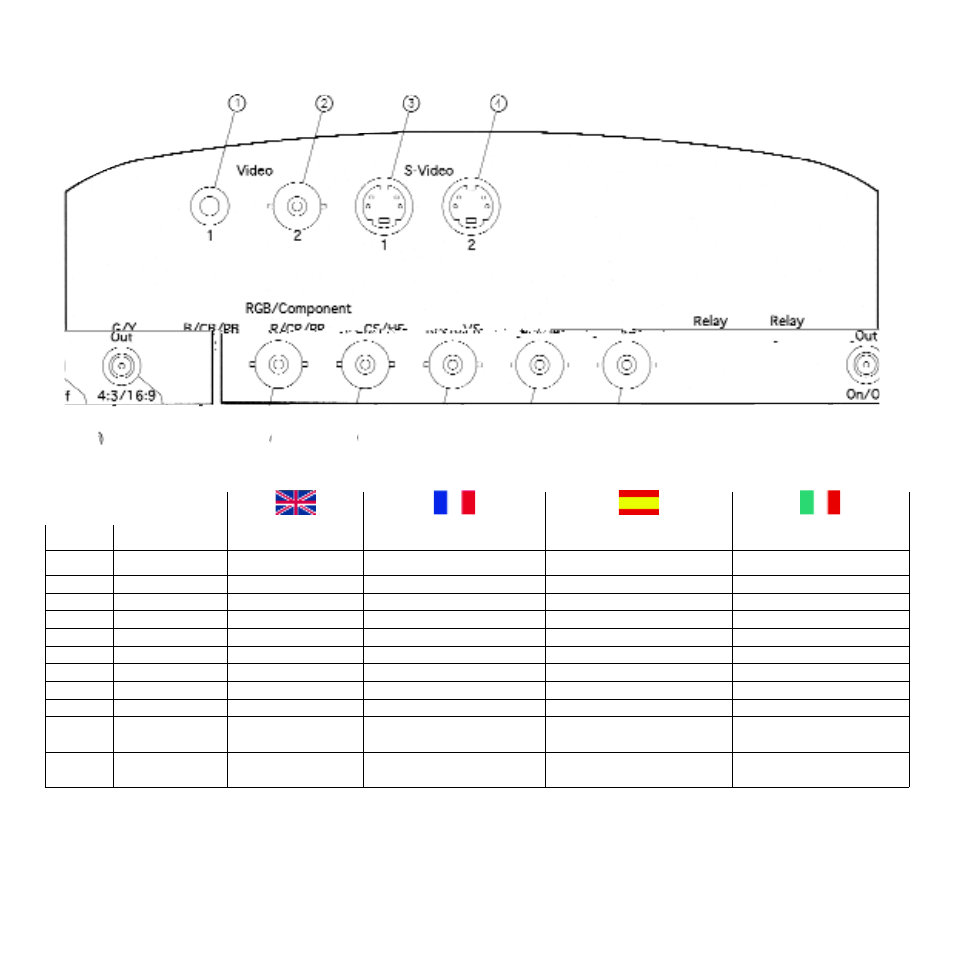

Pos. Connector Signal Signal Señal Segnale
1 RCA (F) Video 1 In Video 1 In Video 1 IN Video 1 In
2 BNC (F) Video 2 In Video 2 In Video 2 IN Video 2 In
3 MiniDIN4P (F) S-Video 1 In S-Video 1 In S-Video 1 IN S.Video 1 In
4 MiniDIN4P (F) S-Video 2 In S-Video 2 In S-Video 2 IN S.Video 2 In
5 BNC (F) RGB G/Y RGB G/Y RGB G/Y RGB G/Y
6 BNC (F) RGB B/Cb/PB RGB B/Cb/PB RGB B/Cb/PB RBG B/Cb/PB
7 BNC (F) RGB R/Cr/PR RGB R/Cr/PR RGB R/Cr/PR RGB R/Cr/PR
8 BNC (F) RGB CS/HS RGB CS/HS RGB CS/HS RGB CS/HS
9 BNC (F) RGB VS RGB VS RGB VS RGB VS
10 DC Jack (F) Relay Out On/Off Sortie On/Off Salida On/Off Uscita On/Off
12V/100mA Max 12V/100mA Max 12V/100mA Max 12V/100mA Max
11 DC Jack (F) Relay Out 4:3/16:9 Sortie 4:3/16:9 Salida 4:3/16:9 Uscita 4:3 / 16:9
12 V / 100 mA Max 12V/100mA Max 12V/100mA Max 12V/100mA Max
