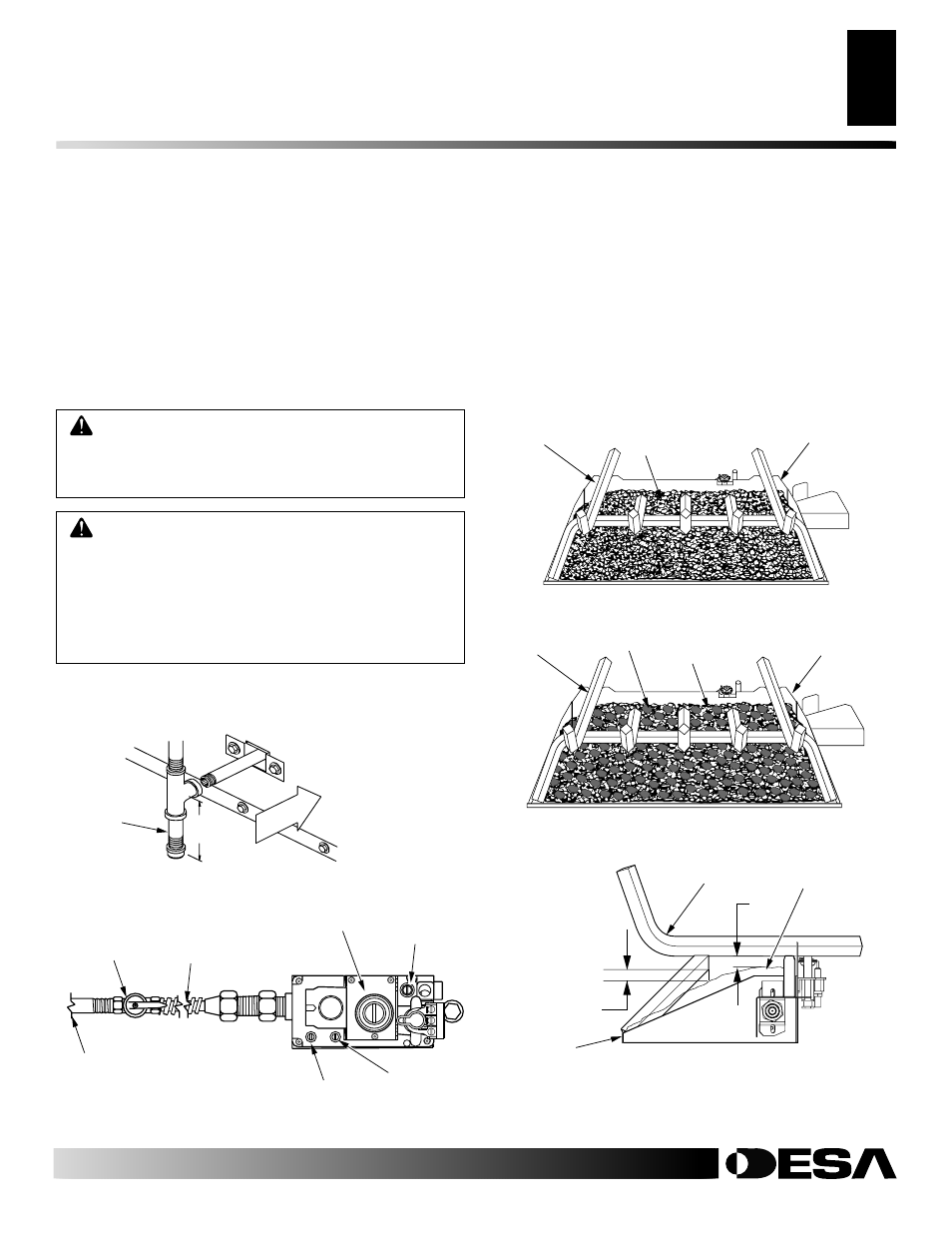

EMBER AND PAN MATERIAL PLACEMENT
1. Open the bag(s) of vermiculite and fill the entire burner pan
until the burner tube is completely covered (see Figure 22).
2. Smooth the pan material just even with edges of the burner pan.
3. Remove the ember material from the bag and flatten small
amounts into quarter size pieces and lay on top of the surface
of the pan material (see Figure 23).
4. Place just enough to cover the entire surface and leave about a
1/2 inch gap under the lower grate members to allow air to
flow (see Figure 24).
INSTALLATION
Continued
DESA recommends that a black iron gas line be routed from the
gas source, through a sediment trap (shown in Figure 20), and into
the appliance, Once connected through the appliance, a flexible
gas line may be used for ease of installation to gas control valve
(see Figure 21).
Before connecting the black iron gas line to the inside of the appliance
a sediment trap must be included outside the appliance between the gas
line and the gas shutoff valve. It must extend down three (3) inches
beyond the center of the pipe. Prepare incoming black iron gas line with
teflon tape or pipe joint compound (Check with local building codes).
Figure 21 - Connecting Flexible Gas Line to Millivolt Valve
WARNING: All gas piping and connections must
be tested for leaks after the installation is completed.
After ensuring that the gas valve is on, apply a commer-
cial leak detection solution to all connections and joints.
If bubbles appear, leaks can be detected and corrected.
Do not use an open flame for leak testing and do not
operate any appliance if a leak is detected.
Complete your gas installation by connecting incoming gas line
with flexible gas line. Secure tightly with wrench but DO NOT
OVERTIGHTEN.
CAUTION: Compounds used on threaded joints of
gas piping shall be resistant to the action of Liquefied
Petroleum (LP or propane), and should be applied lightly
to ensure excess sealant does not enter the gas line.
3" Min.
(76mm)
Side W
all
Of Appliance
Incoming 1/2" Gas Line
Permitted by Local Codes
Sediment Trap
(Not Supplied)
Figure 20 - Sediment Trap
Gas Shutoff
Valve
Flexible Gas Line
Do NOT Kink
1/2" NPT
Incoming
Gas Line
Note:
1) Wire Connections
Not Shown for Clarity
2) * 1/8" NPT Plugged
Tapping
Red Surface Indicates For
Propane/LP Use Only
Pilot Adj
Inlet Pressure
Tap
Outlet
Pressure
Tap
Figure 22 - Fill Entire Burner Pan with Vermiculite
Figure 23 - Ember Material on Surface of Pan Material
(Vermiculite)
0.5"
0.5"
Figure 24 - Pan and Ember Material Clearances
Vermiculite
(Pan Material) Burner Pan
Grate
Ember
Material
Burner Pan
Vermiculite
(Pan Material)
Grate
Grate
Burner Pan
Pan and Ember
Material
INSTALLATION
Gas Line Hook-Up (Cont.)
Ember and Pan Material Placement
