DVS 99000153 - Manual (Page 4)

Blower, DVS Gas
(Berkshire, Tree of Life, Prairie, Cedar, 2001 Allegiance) Part # 99000153
Page 4 of 4 4070219

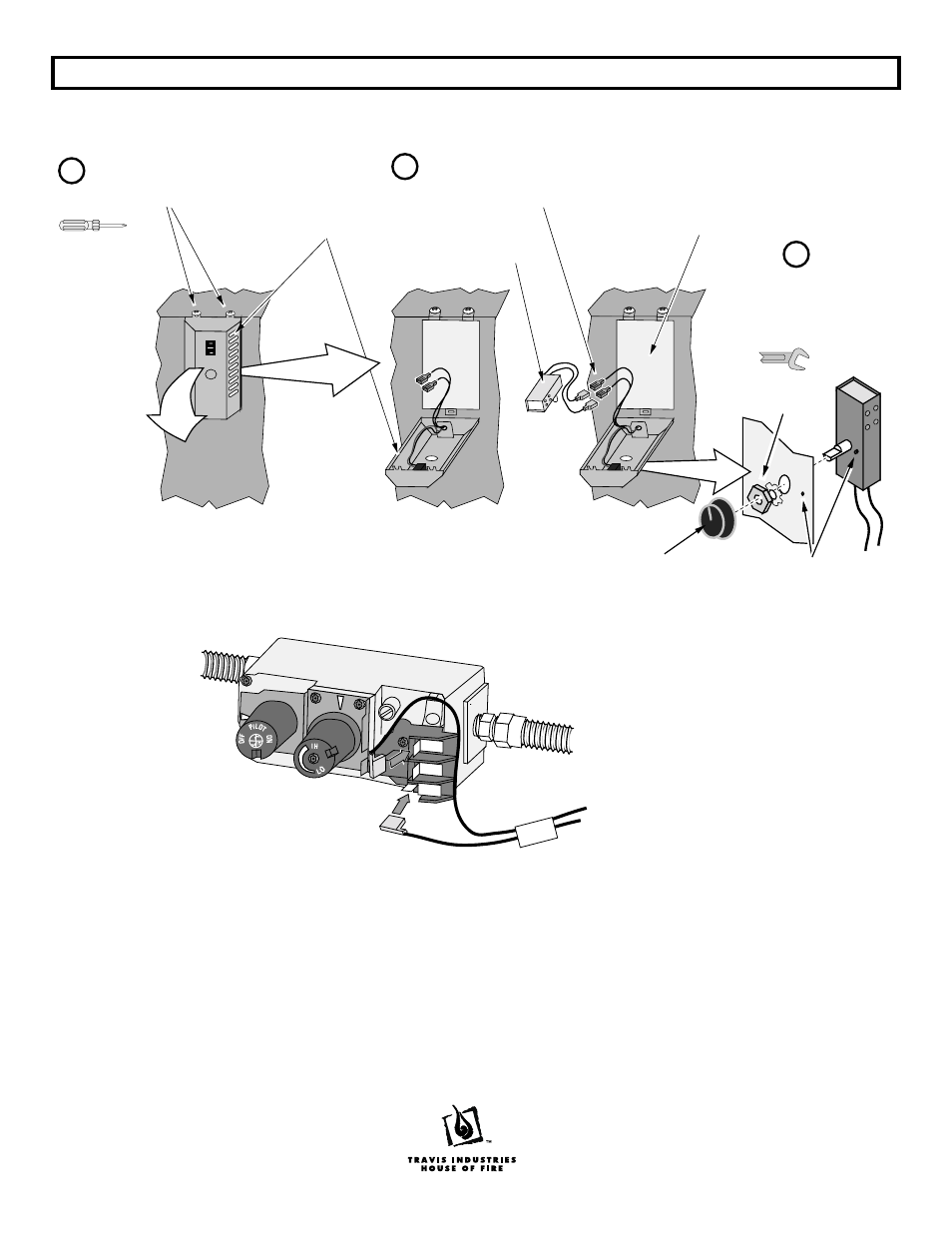

5 Open the control cover following the directions below. Remove the button plug and install the rheostat.
Back of
Stove
Loosen the two screws holding the control
box in place. This allows access to the
back of the control box.
a
b
c
Attach the rheostat wires to the two
quick connects inside the control
box (orientation does not matter).
Control Box
Rheostat
1/2"
Wrench
NOTE: this tab fits into the
hole on the mounting bracket.
Attach the rheostat to
the control panel with
the included nut and
star washer.
Attach
the knob.
NOTE: make sure the
fiberglass heat shield is in
place when re-attaching the
control box (all models except
the cedar).
Phillips
Screwdriver
6 If using the modulating remote thermostat, attach the red and brown wires to the gas control valve.
Attach the red and
brown wires to the top
and bottom terminals
on the gas control
VALVE
“ON/OFF
”
7 Plug the blower in. Let the heater achieve operating temperature and test blower operation.
