DVS 99000153 - Manual (Page 2)

Blower, DVS Gas
(Berkshire, Tree of Life, Prairie, Cedar, 2001 Allegiance) Part # 99000153
Page 2 of 4 4070219

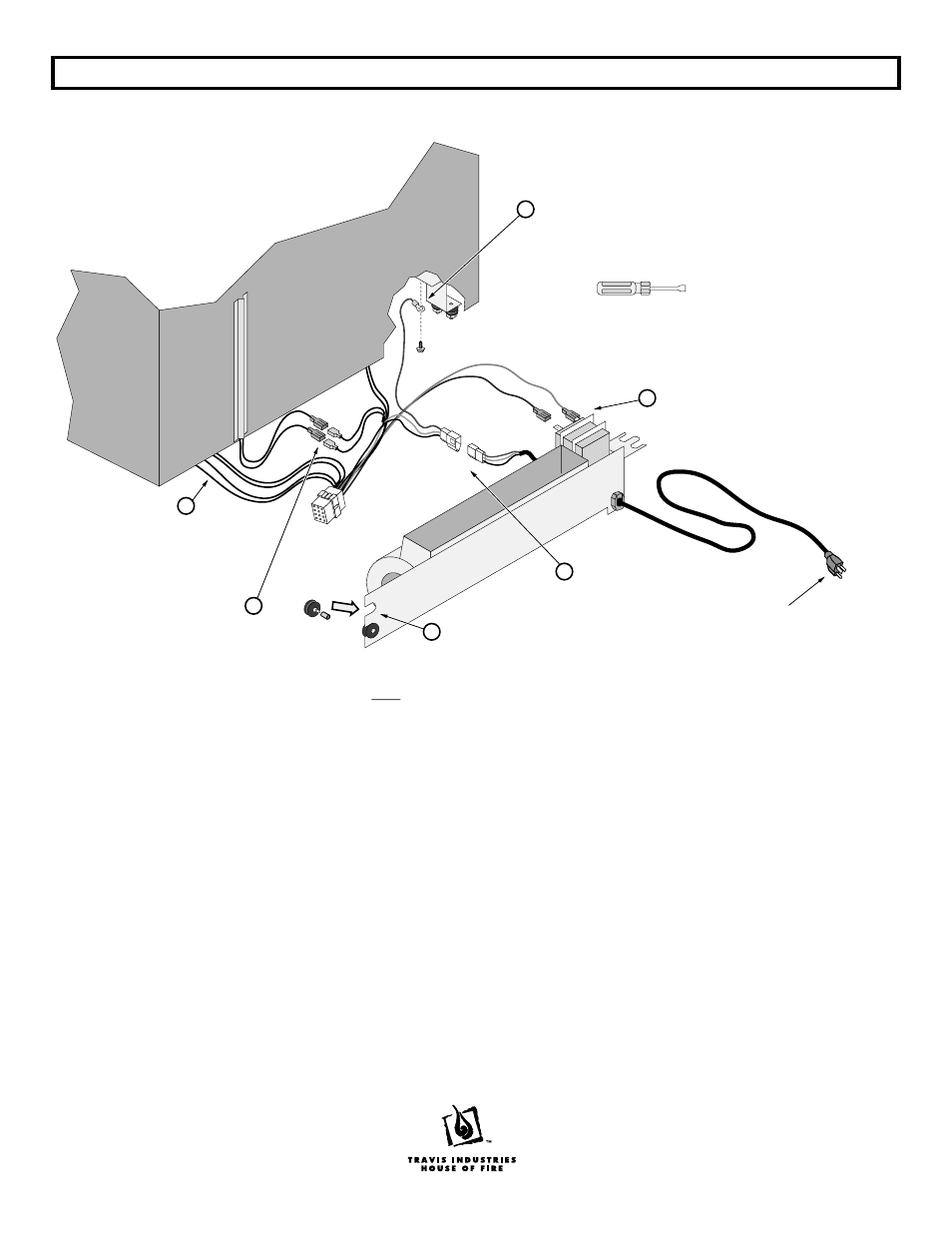

2 Place the blower near the rear of the stove. Attach the wiring in grommets following the directions below.
Slide the rubber grommets (with
spacers inserted inside) onto the
fan mounting bracket.
Attach the black and white wires
labeled “Blower” to the blower
(orientation does not matter).
Attach the molex connector.
DO NOT PLUG THE STOVE
IN UNTIL INSTALLATION IS
COMPLETE.
Back of
Stove
1/4" Nutdriver
Remove one of the screws holding
the mounting bracket in place. Insert
the screw through the eyelet on the
green ground wire and replace.
a
b
c
d
Attach the two wires leading
from the control box to the two
block wires labeled “Rheostat”.
e
Route the wires labeled “Valve
on/off” and “Solenoid” under
the burner pan to a location
near the gas control valve.
f
