Model 251 Passenger Speaker Amplifier
SM251 Installation and Operation Manual
Section 2 Rev: 1.00
Issue 2
Page 2-10
2.5
Adjustments and Connections
Internal screwdriver potentiometer adjustments are accessible, after removal of the Model 251 end plate,
to set various chime or ringer levels heard in the passenger speakers.

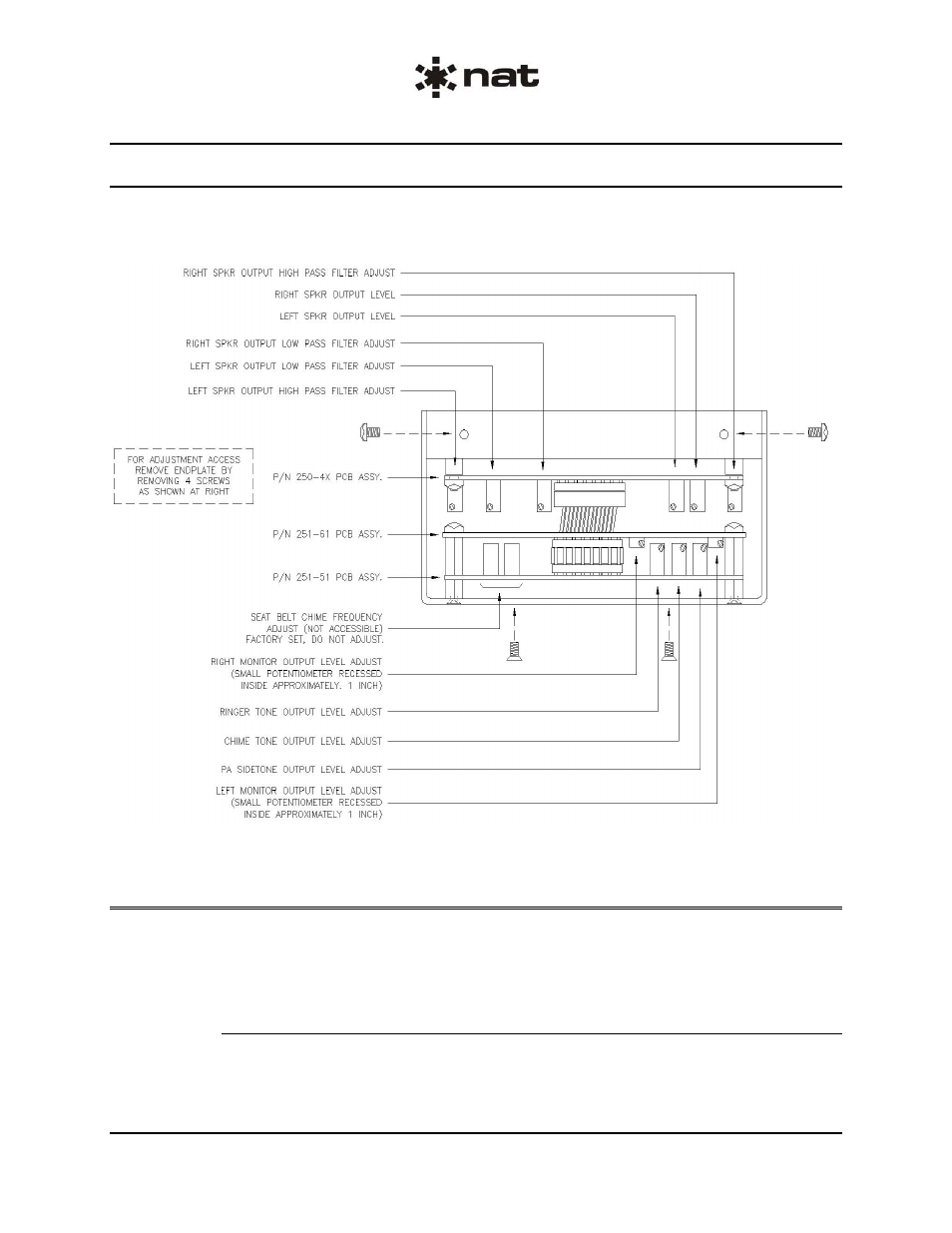

Figure 1: Internal Trim Pot Adjustments
2.6
Accessories Required But Not Supplied
Installation kits p/n D09SV-IKC, D25SV-IKC & D37SV-IKC (crimp) are required to complete the
installation. The kits consist of the following:
D09SV-IKC
consists of:
Quantity
Description
NAT Part No.
1
D-min 9 Socket Housing
20-21-009
9
MS Crimp Socket
20-26-901
1
9 Pin JVL Hood/Locklever
20-29-090
ENG-FORM: 805-0120.DOT
