3 Connections

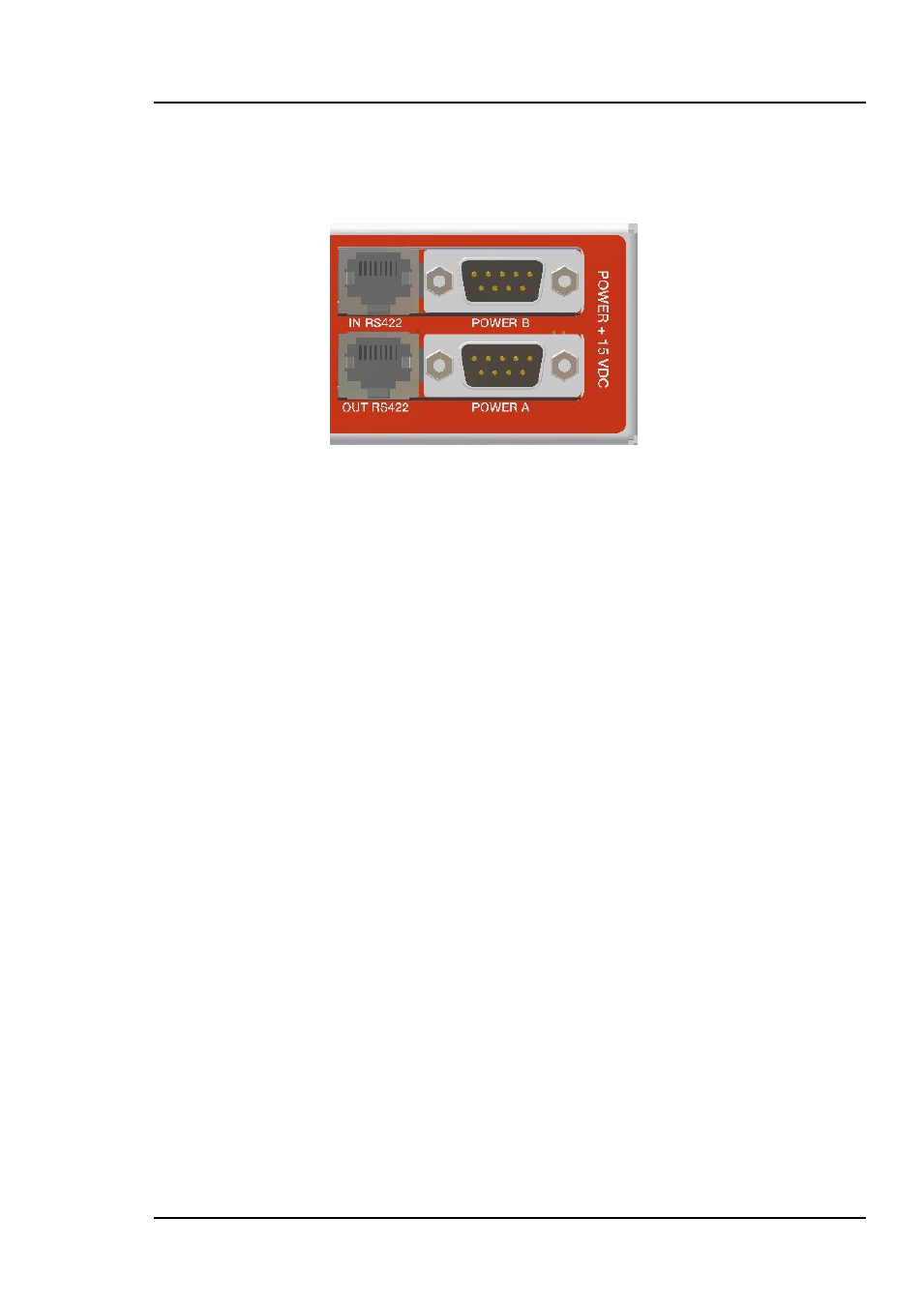

Figure 1 shows the power connections of the unit as well as the RS-422 connections.
Figure 1
3.1 Power connection
The Power inputs are constructed to provide redundancy when using two external
power supplies. When supplying power to one of the connectors it is not possible to
source power from the second power connector. Tighten the screws to ensure a proper
contact.
The power inputs are standard DB9 male connectors.
3.1.1 Pin-out POWER A and POWER B (DB9)
Pin #1
GND
Pin #4
+15V
3.2 RS-422 connection
At the rear of unit it is two RJ45 connectors. These are used for Flashlink RS422
control bus.
3.2.1 Pin-out RS-422 (RJ45)
Pin #1
Rx A (+)
Pin #2
Rx B (-)
Pin #3
Tx A (+)
Pin #4
Reserved
Pin #5
Reserved
Pin #6
Tx B (-)
Pin #7
Not Connected
Pin #8
Not Connected
