9

When you use this low-level input to the subwoofer, it is very important

to disconnect (on the speaker(s)) the gold jumper going between the + (red)
mid and low, and - (black) mid and low 5-way binding posts. (There should
be nothing connected to the 5-way binding posts labeled low.) Hook up your
high (speaker) level signal as you would normally between your center chan-
nel amplifier terminals to the corresponding center speaker + mid terminal
and - mid terminal. Do the same for all your speakers. (See diagram # 4.)

If you wish to bi-wire your speaker(s) (see diagram # 5) as well as use

the low-level inputs (if you want absolutely the ultimate hookup method,

this is it), simply remove all gold jumpers on the speaker(s) and run sepa-
rate sets of speaker cable to the mid and high terminals of the speaker(s) as
described under bi-wiring as well as a separate RCA low-level cable from
the center channel low-level output on your receiver, pre-amp or decoder
into the full-range low-level input, as described previously. Remember,
when using this low-level subwoofer input, there should never be any wire
or jumper connected to either of the 5-way binding posts labeled “Low” on
either speaker.

In order to achieve optimum performance, maintain perfect driver blending and take full

advantage of the benefits of having a built-in subwoofer, it is important, if you are using low-

level “Full Range Inputs” to drive the subwoofer, that you use full range center channel low-

level signals to feed this input, NOT, REPEAT, NOT SUBWOOFER LFE OUTPUT SIGNALS.

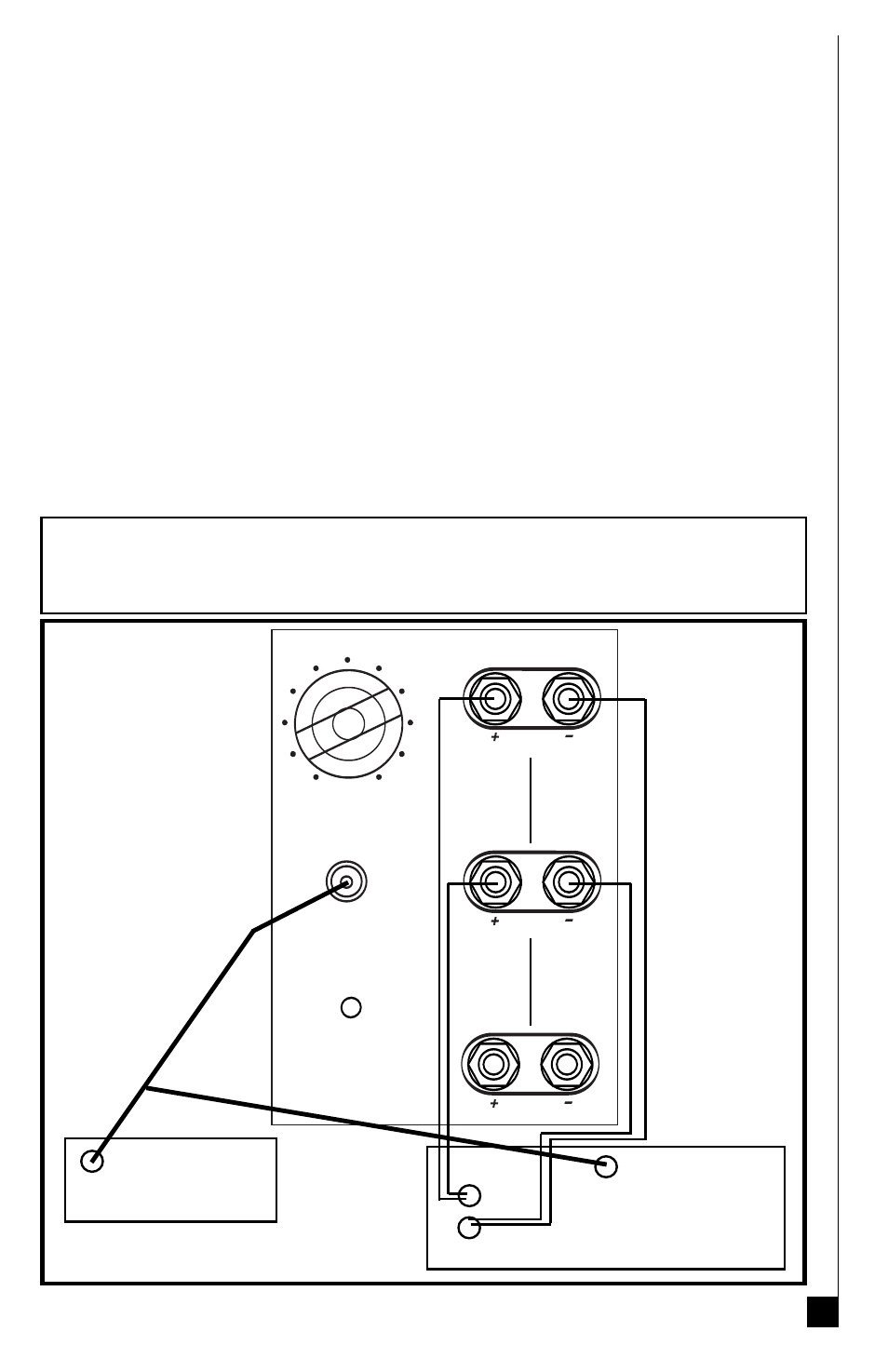

Diagram # 5: Bi-Wiring Speakers and Using Low-Level Input

High

Mid

Low

HIGH LEVEL IN

POWER

AUTOMATIC ON/OFF

LEVEL

FULL RANGE

LOW LEVEL IN

High

Mid

Low

HIGH LEVEL IN

POWER

AUTOMATIC ON/OFF

LEVEL

FULL RANGE

LOW LEVEL IN

+

-

Center

Power Amplifier or Receiver

Y-Connector

Pre-Out Center

Amp-In Center

Pre-Amplifier
