Connecting Each Speaker with One Pair of Speaker Wires Only
When the C/L/R 3000(s) are hooked up using simply one set of speaker
wire per speaker (with no separate low-level input for the subwoofer sec-
tion) a special circuit takes an infinitesimally small signal from the speaker
level input and converts it to a low-level signal which then drives the sub-
woofer power amp.
With all the gold jumpers in place, (see diagram # 1) simply connect any
of the red (+) terminals of the speaker to the red (+) terminal of the center
channel speaker level outputs on your amplifier or receiver, and any of the
black (-) terminals of each speaker to the black (-) terminal of the center
speaker level outputs channel on your amplifier or receiver. It is essential
that all the speakers (center, left, right and rears) be connected in the same
way (in phase) to its own channel of the amplifier. If you experience a great
lack of bass, it is likely that one speaker is out of phase with the other.

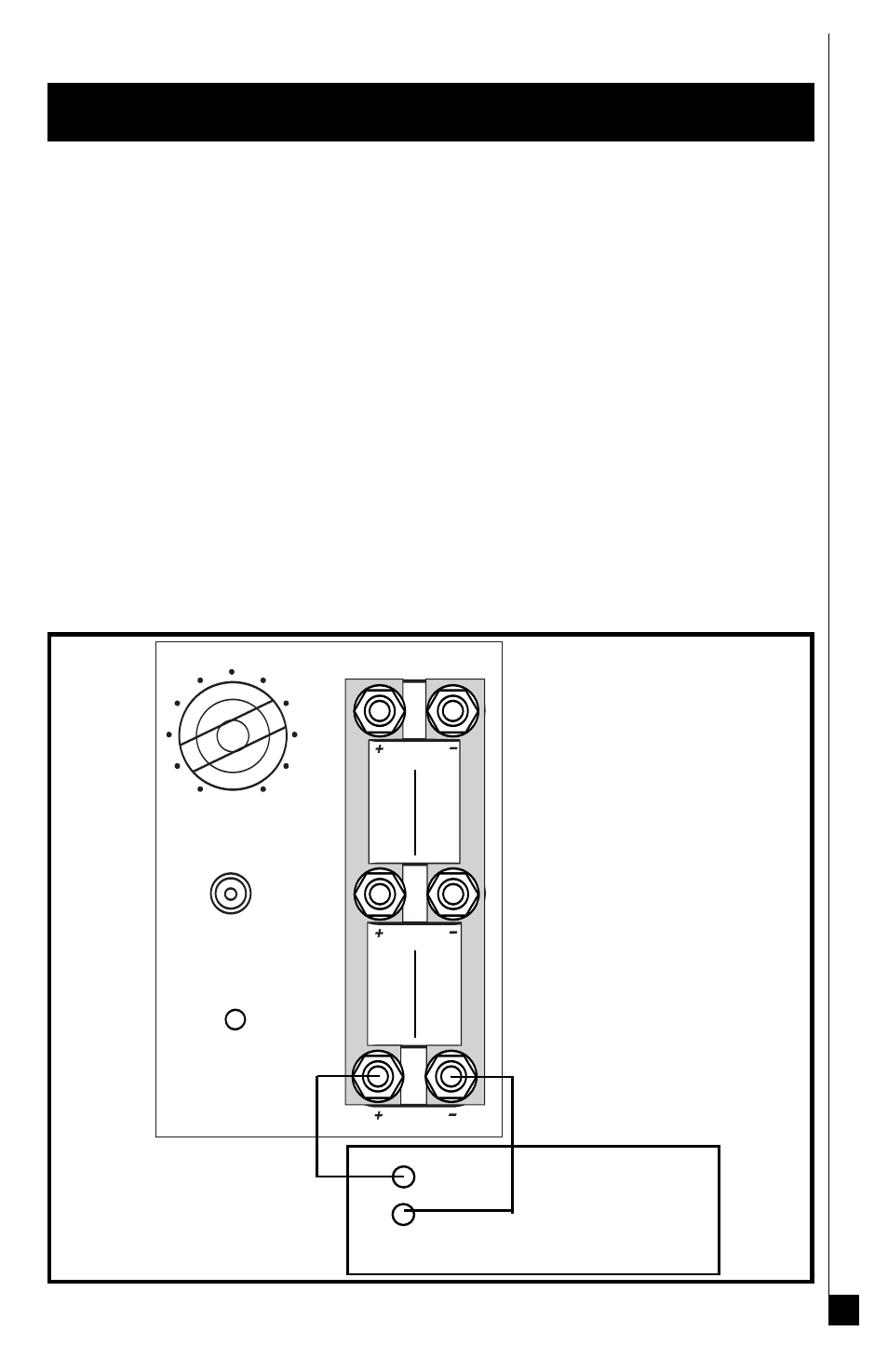

Diagram # 1: Connecting C/L/R 3000 with One Pair of Speaker Wires Only
High
Mid
Low
HIGH LEVEL IN
POWER
AUTOMATIC ON/OFF
LEVEL
FULL RANGE
LOW LEVEL IN
High
Mid
Low
HIGH LEVEL IN
POWER
AUTOMATIC ON/OFF
LEVEL
FULL RANGE
LOW LEVEL IN
+
-
Center
Power Amplifier or Receiver
Since in most cases the C/L/R 3000 will be used as a center channel, we
will give hookup instructions as such. If you use C/L/R 3000s across the
front (or a pair in stereo) simply hook up each C/L/R 3000 by repeating
similar hook ups for the left and right channel C/L/R 3000s to their appro-
priate channel as for the center.
