4. Operation
4-2
SDG150S-6A6

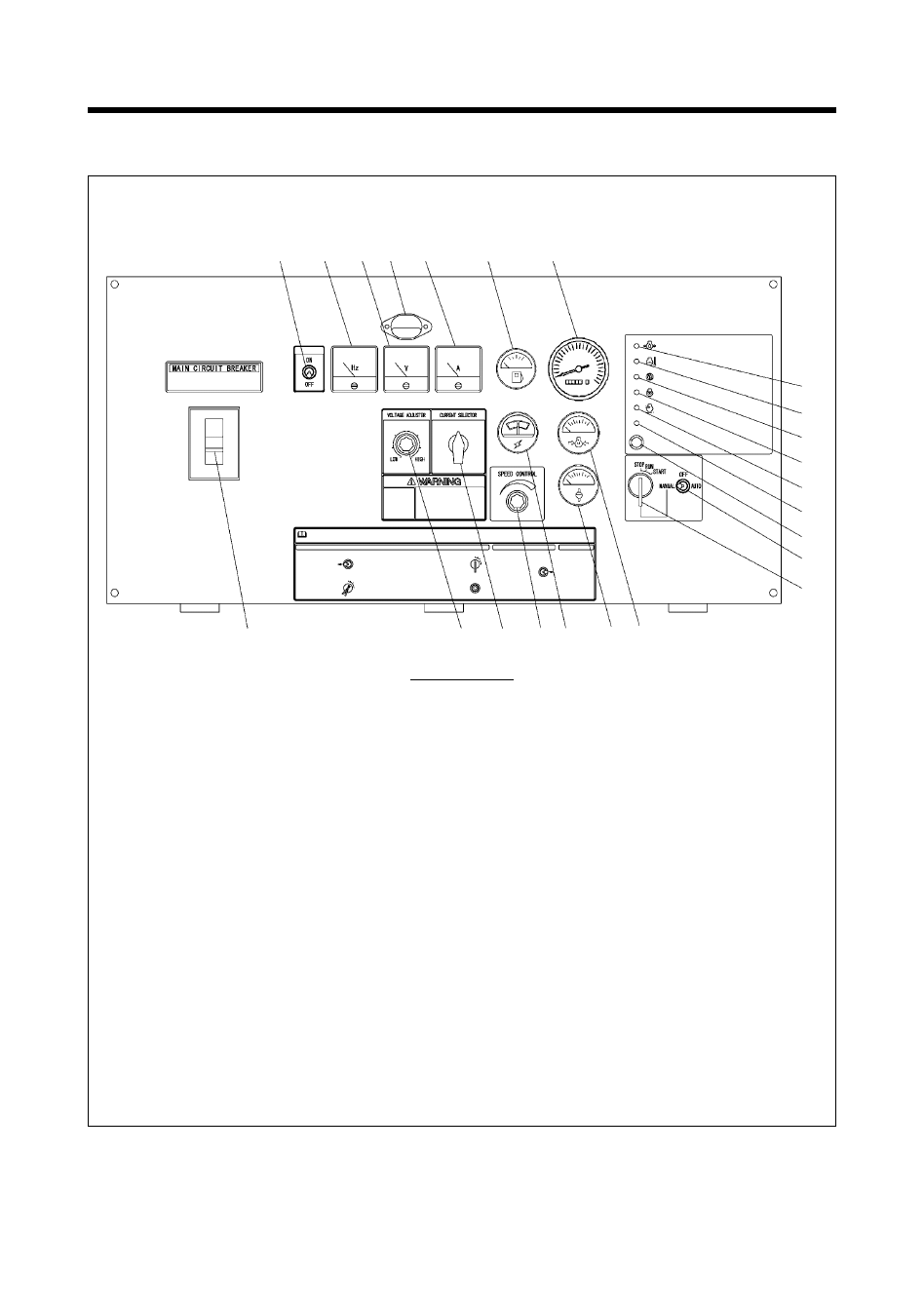

1 2 3 4 5 6 7
23 22 21 20 19 18 17
8
9
10
11
12
13
14
15
16
A050554
1. Panel light switch
2. Frequency meter
3. Voltmeter
4. Panel light
5. Ammeter
6. Fuel gauge
7. Tachometer with hourmeter
8. Engine oil pressure drop warning lamp
9. Coolant temp. rise warning lamp
10. Over crank warning lamp
11. Glow lamp
12. Air filter clogging flickers warning lamp
13. Diagnostic lamp
14. Diagnostic button
15. Selector switch
16. Starter switch
17. Engine oil pressure gauge
18. Coolant temperature gauge
19. Ammeter for battery charge
20. Speed control knob
21. Ammeter change-over switch
22. Voltage regulator
23. Main circuit breaker
※ The voltage selector switch is provided
inside the unit. (See page 2-3, No.18)
