PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
5.4
30” Wide,
Epicure™ Range
ERD30
2/2
29 1/4" (743mm)
30 1/16" (764mm)
3/4" (19mm)
Max. backsplash
1/4" (6mm)
Min. flat ledge
13/16" (21mm)
23 3/16"
(589mm)
20 3/16"
(513mm)
29 1/4" (743mm)
30 1/16" (764mm)
Vertical
non-combustible
surface
Vertical
non-combustible
surface
Rear wall Rear wall
3 13/16”
(97mm)
25”
(635mm)
Countertop Countertop Countertop Countertop
tOP vIEW
(Slide-In, Self-Rimming Installation with Side
Panels and Backguard Removed)
(Slide-In, Self-Rimming Installation using 3” Side
Panels, Backguard Removed)
Revised
07/30/08
Model number “a” Minimum Cutout width “B” Hood width
ERD30
30 1/16” (764mm)
30” (762mm) Minimum
36” (914mm) Recommended
ERD36LP
**
** Cabinet depth is at discretion of customer
but cabinet face MUST NOT protrude further
than rear of front panel, see product dimesions
* Vertical to combustible surface
B
A
Non-Combustible
surface along
back wall
Suggested
location of
utilities
30” (762mm)
min.*

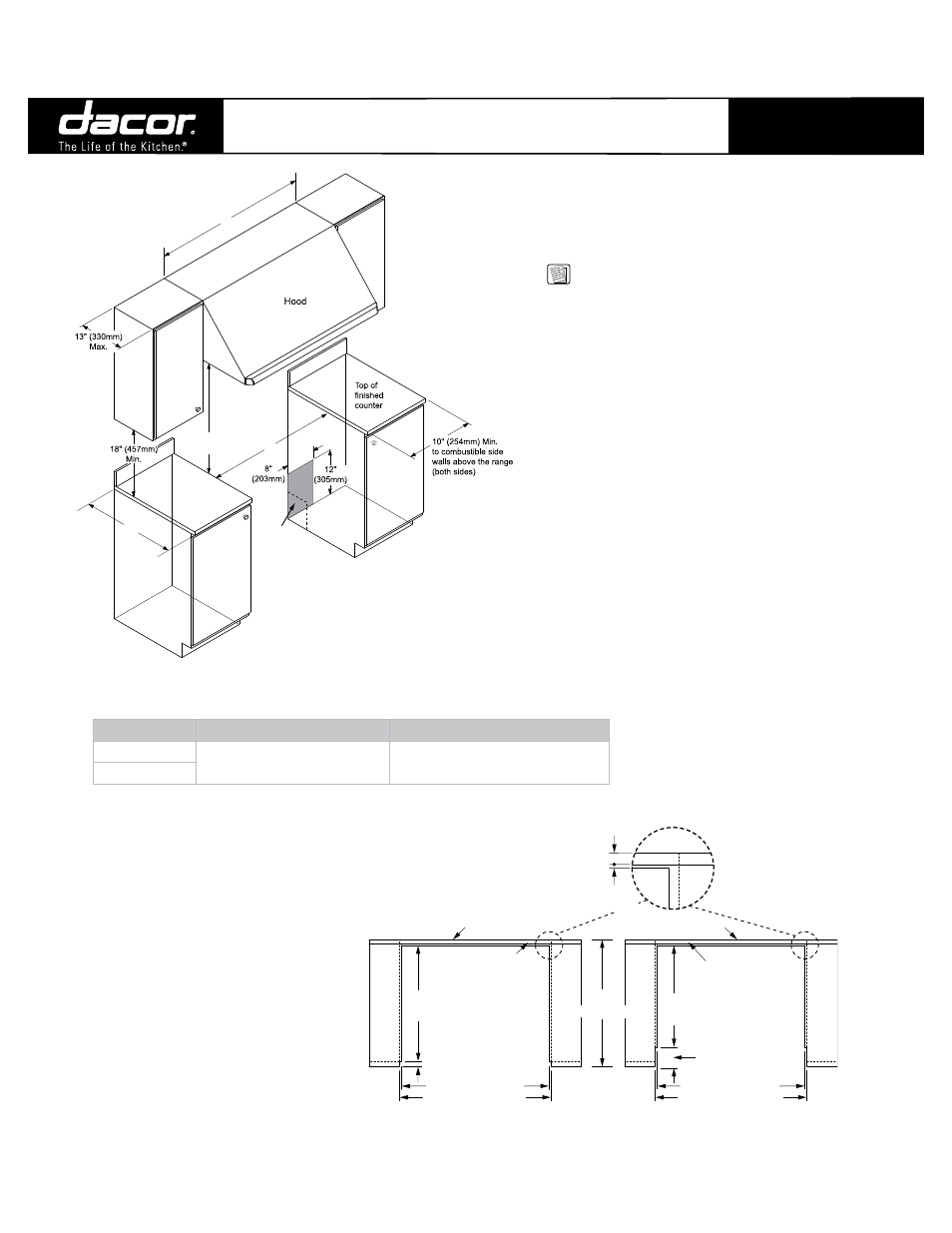

cAbINEt DImENsIONs
nOTES:
1. Utilities may be located in the lower left
corner of the adjacent right cabinet.
(recommended)
2. Contact your local building department
to verify compliance with local code
interpretation.
3. For ErD all front-to-back dimensions are
reduced by 1” (25mm) when backguard
and full side panels are removed.
4. Dacor rear top trim (part #26793; shipped
with unit) must be used if backguard and
side panels are removed.
5. Dacor 3” wide side panels (left and right
side: part #aESP03; available as an
accessory).
6. ErD30 range can be installed with slim
(ErV/PrV) downdraft ventilation.
7. See the Combination installation (Ci)
section if installing with a downdraft.
8. Toe skirt sold separately (part #aETS30).
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
