Customer interface cable requirements, Signal wiring, Shield termination – MicroE 1000 Mercury User Manual

Page 12: Recommended interface termination, Page 10, Mercury 1000 signal twisted pair

Text mode
Original mode

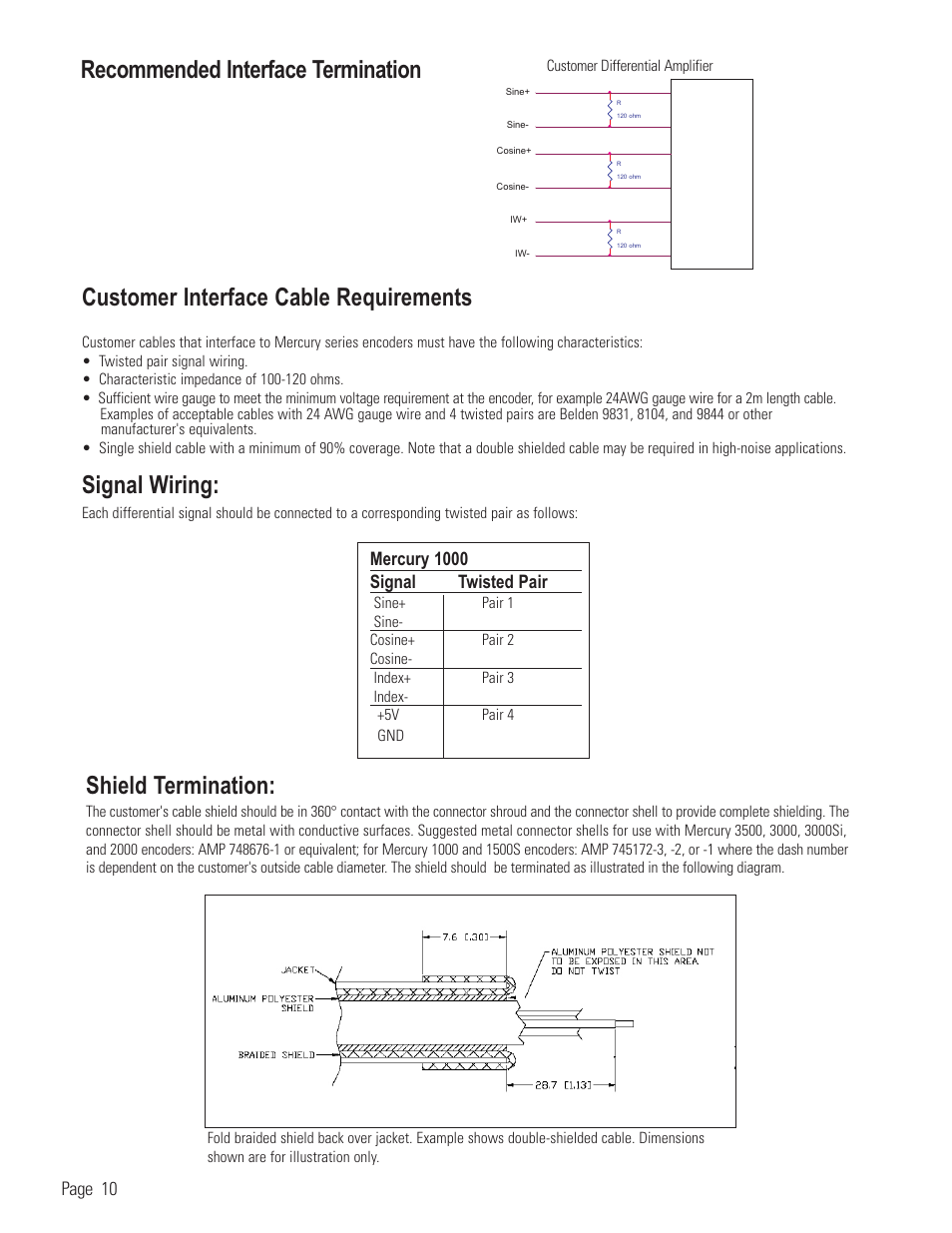

Customer interface cable requirements, Signal wiring, Shield termination | Recommended interface termination, Page 10, Mercury 1000 signal twisted pair | MicroE 1000 Mercury User Manual | Page 12 / 14
