9
© 2002 Directed Electronics, Inc
REM GND BATT 25A
FUSE
FRONT
REAR
L R
BRIDGED
SPEAKER
OUTPUT

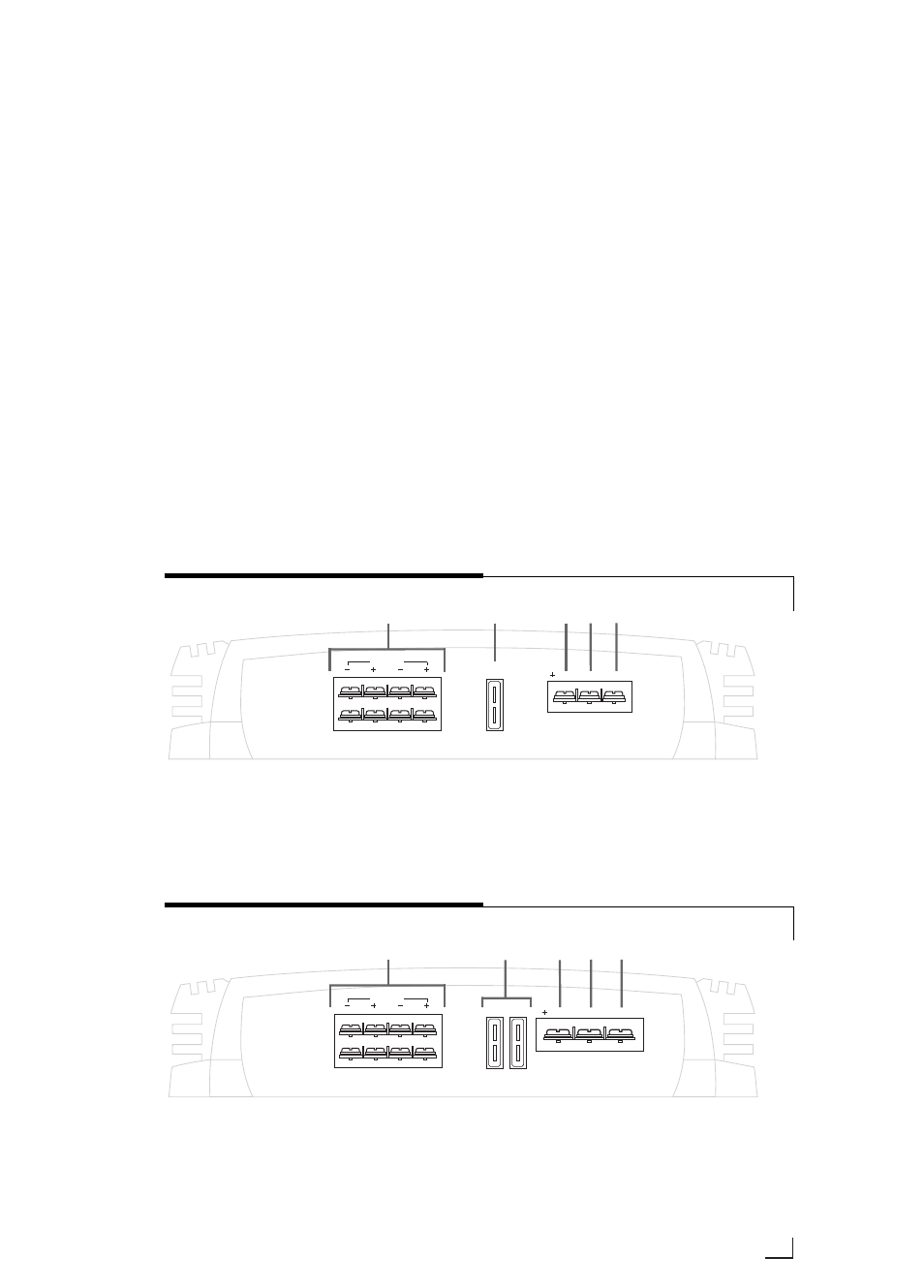

FIGURE 2—AMPLIFIER CONNECTIONS 4200 REAR
FIGURE 3—AMPLIFIER CONNECTIONS 4500 REAR
REM GND BATT 25A x 2
FUSE
FRONT
REAR
L R
BRIDGED
SPEAKER
OUTPUT
4. RReem moottee TTuurrnn OOnn - This terminal
turns on the amplifier when (+) 12
volt is applied to it. Connect it to
the remote turn on lead of the head
unit or signal source. If a (+) 12
volt remote turn lead is not avail-
able, a Remote Power Adapter
(P/N #55000) can be used to
supply a remote turn on signal. DO
NOT connect this terminal to
constant (+) 12 volt.
5. GGrroouunndd - Connect this terminal
directly to the sheet metal chassis
of the vehicle using the shortest
wire necessary to make this
connection. Always use wire of the
same gauge or larger than the (+)
12 volt power wire. The chassis
connection point should be scraped
free of paint and dirt. Use only
quality crimped and/or soldered
connectors at both ends of this
wire. DO NOT connect this terminal
directly to the vehicle battery
ground terminal or any other
factory ground points.
1 2 4 3 5
1 2 4 3 5
