-15 -
5222 DIGICUT
B
D
A C
A
B
B
C

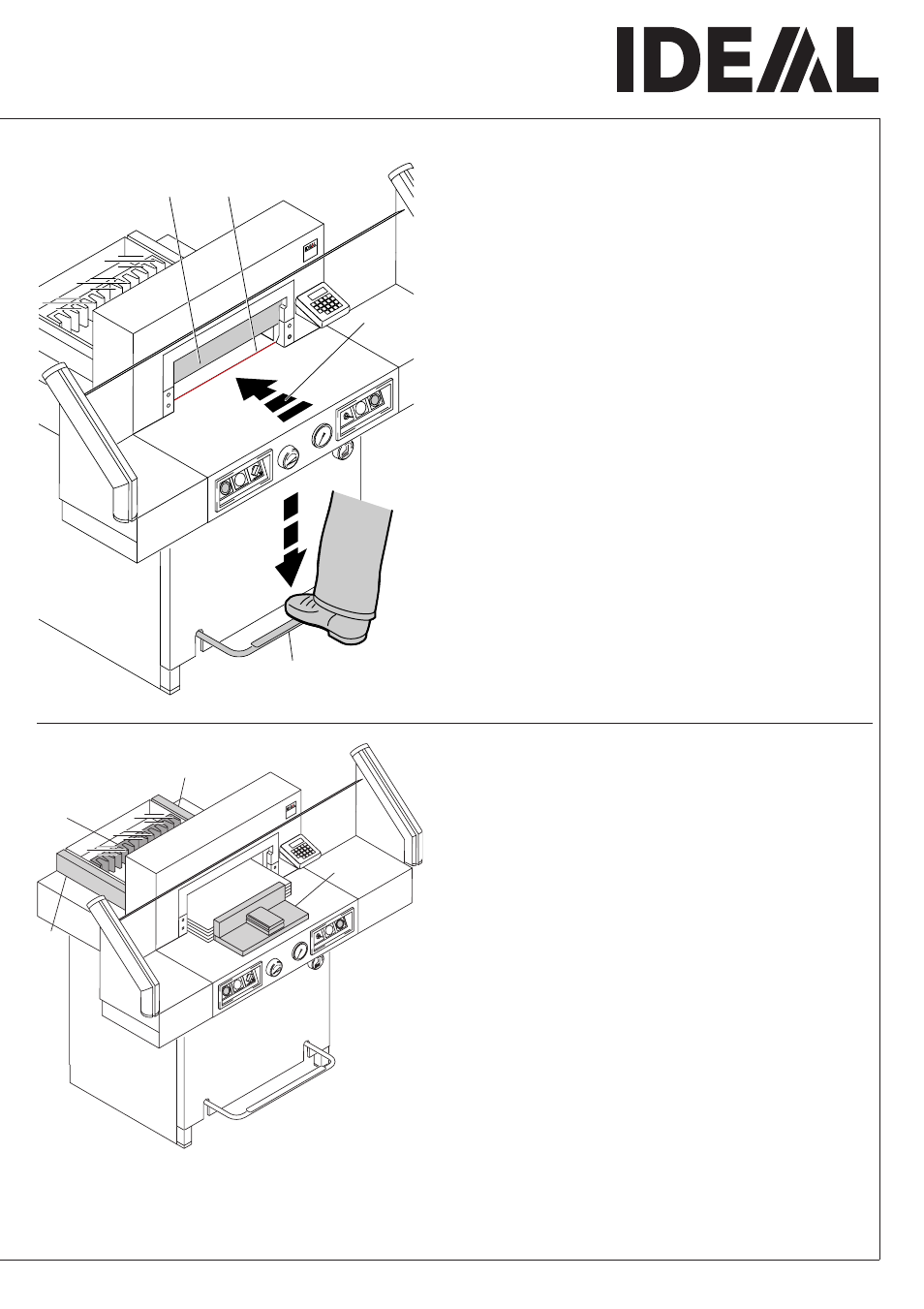

Optical cutting line indicator:
Optical cutting red line (A) that indicates the
position of the cut. Blade cuts on the front edge
(B) of the light beam.
Mechanical cutting line indicator:
The clamp (C) can be used as cutting line
indicator for cutting. When the false clamp is
pushed down with the foot pedal "
C C C C C
" will
appear on the display and the backgauge can
only be moved with the hand-wheel.
Do not press the paper stack with the foot
pedal when the backgauge is in operation.
Only use the optical cutting line indicator and
mechanical cutting line indicator when no exact
cut is required.
Position the paper on the backgauge (A) and
side lays left or right (B). To move paper stacks,
please use the paper knock-up block (C)
provided. (Run backgauge to the front for
turning the paper stack).
• Operation •
