- 20 -
IDEAL 4855 • IDEAL 5255 • IDEAL 6655
1
6
4
5
7
2
1
3
9
8
8
T

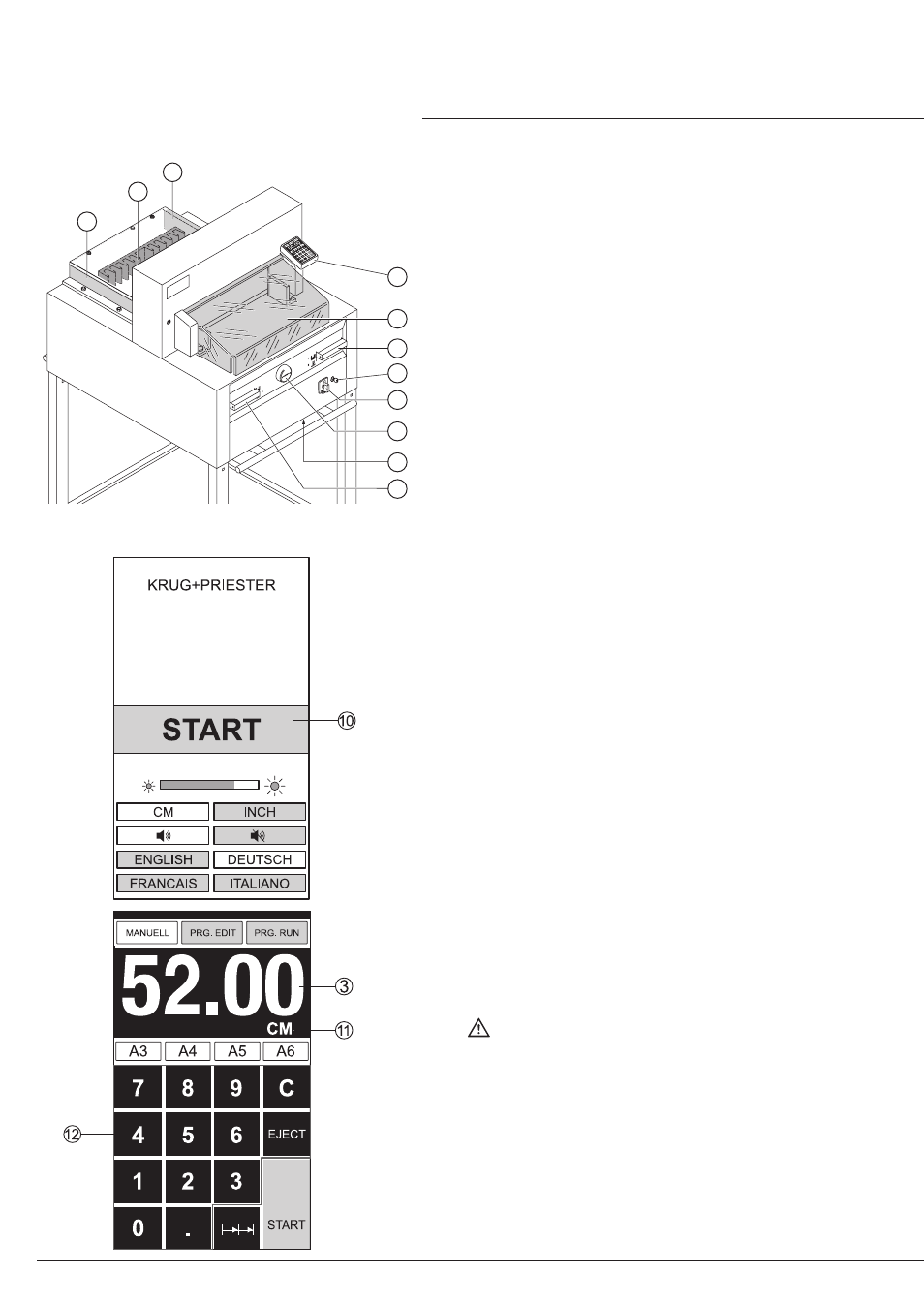

Operating elements
A - Safety two-handed control system
Pre-clamping and cutting
B - Overload switch
(blade drive/clamp drive/
backgauge drive)
C - Backgauge control
D - Main switch
E - Hand-wheel for backgauge setting
F - Key switch
G - Backgauge
H - Side lay left and right
I - Front safety guard
• Operation •
Start machine
• Main switch D to position "I", insert the key
F for the control panel and turn to the right.
Start screen appears
The following functions are changeable:
Brightness
CM/INCH
Touchtone ON/OFF
Language
•
Press START J backgauge G moves to
the rear and searches for the reference
position, wait until a measurement
is shown in the display C
IDEAL 4855 = 45 cm, 17.72 inches
IDEAL 5255 = 52 cm, 20.47 inches
IDEAL 6655 = 61 cm, 24.02 inches
• The DIN measurements in cm
(A3, A4, A5, A6) and in inch (LD, LG, LT, hLT)
are recallable with the respective buttons.
Warning!
Before storing or cutting a measurement
please check if the correct measurement scale
(cm or inch) see above is stored.
For information on how to store see picture
below left. Is shown on the screen see K .
After 30 minutes the screen switches to
energy-saving mode
The screen is reactivated by touching the
keypad area L .
