MODEL 200 BENCH MODEL DRILL

1. Remove the machine from the carton and inspect for any shipping damage. If any damage is present,

report the damage to the carrier immediately. Failure to do so may void any warranties.

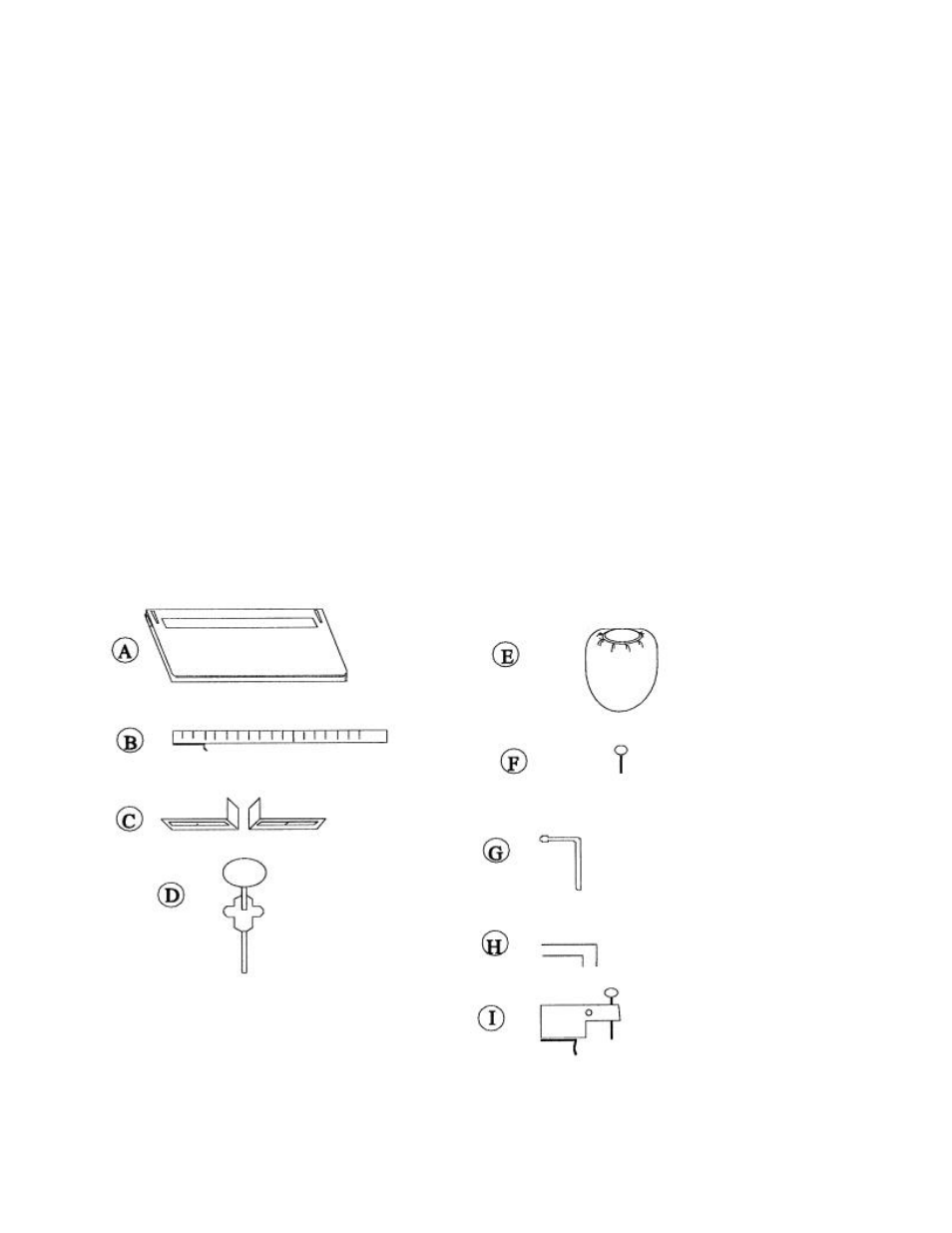

2. Remove and inspect the following items:

A. (1) Table Assembly (Illustration No.3)
B. (1) Back Gauge Angle and Scale (Illustration No. 1)
C. (2) Paper Side Stops (Illustration No. 3)
D. (1) Vertical Table Stop Assembly (Illustration No.4)
E. (l) Chip Bag
F. (4) Paper Side Stop Knob with Studs (Illustration No. 3)
G. (1) Chuck Release Key
H. (2) Hex Keys
I.

(2) Stop Collar Set Screw

J.

(1) Motor Warranty

K. (1) Back Gauge Clamp (Illustration No. 1)
L. (1) Operations Manual
