LEVELING THE UNIT
• Now that the stove is in place and properly
hooked up to the chimney, you have to adjust
the level on the burner.
• Put the level in the middle of the burner
parallel to the door. (Figure 9A). Screw or
unscrew the adjustable legs to level the
burner with a 7/16" key (10 mm).
• Put the level in the middle of the burner
parallel to the sides. (Figure 9B). Screw or
unscrew the adjustable legs to level the
burner with a 7/16" key.

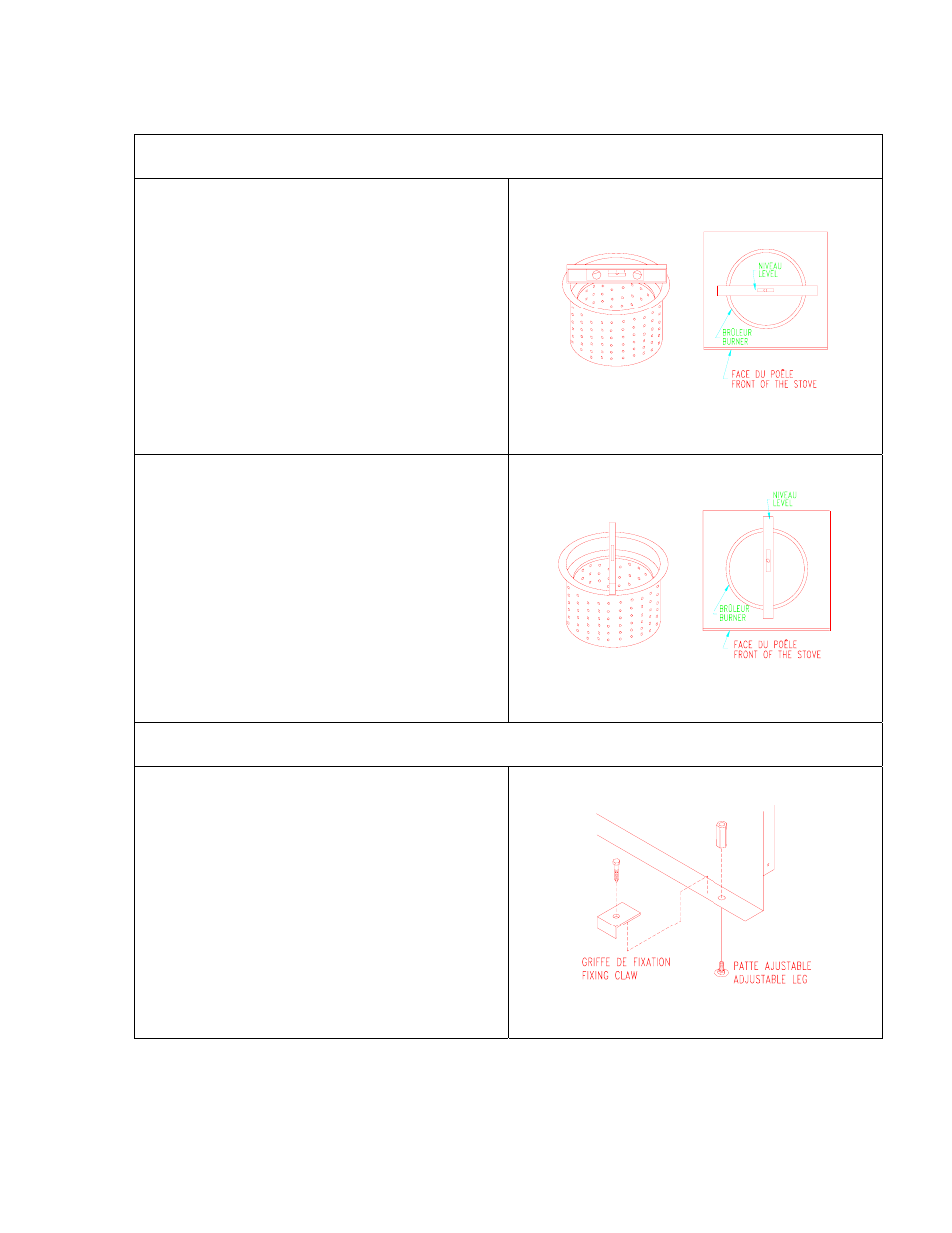

Figure 9A:
LEVELLING THE BURNER
IMPORTANT :
IT IS VERY IMPORTANT TO LEVEL THE
BURNER TO ALLOW A PROPER OIL VAPOR
DISTRIBUTION THROUGH THE RINGS, AND A
BETTER OIL INLET.
Figure 9B: LEVELLING THE BURNER
FIXATION OF STOVE TO FLOOR
• The unit has to be stabilized in its location
using the two fixation brackets. Install the
brackets on the two back adjustable legs.
(figure 11)
• If the flooring is made of combustible
material it would be preferable to install the
unit on an non combustible surface covering
at least the dimensions of the stove.
Figure 10: INSTALLATION OF FIXATION
BRACKETS
