Front-Loading Automatic Washer
PRODUCT MODEL NUMBERS

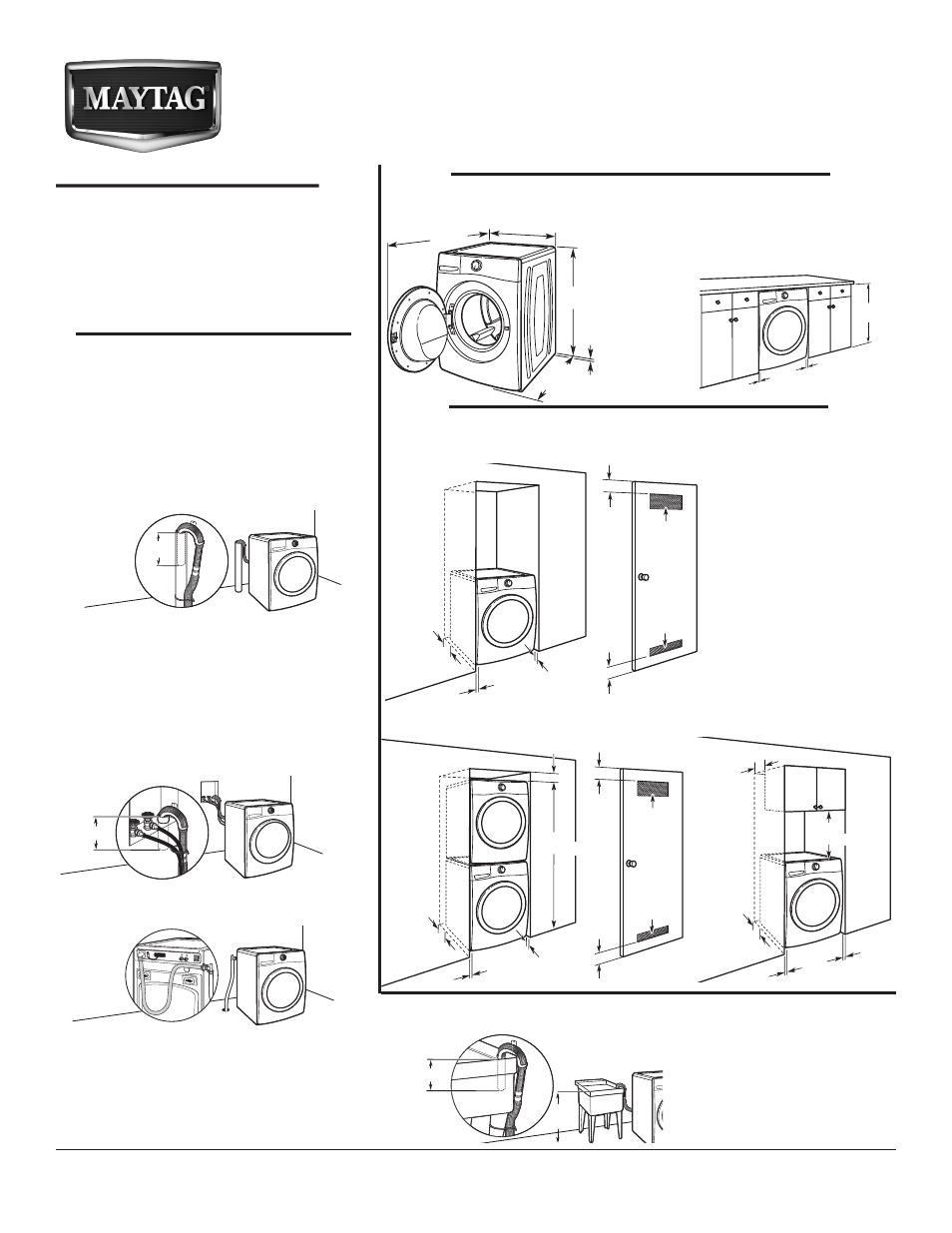

OVERALL DIMENSIONS
MHW6000X, MHW7000X,
MHW9000X, MHW9000Y
Electrical: A 120 volt, 60 Hz., AC only, 15- or 20-amp,
fused electrical supply is required. A time-delay fuse or
circuit breaker is recommended. It is recommended that
a separate circuit serving only this appliance
be provided.
Washer dimensions
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specifications without notice. Instructions packed with product. Specifications subject to change without notice.
Ref. W10254447B
02/2011
Drain System Options
31 1 /
2
"
(800 mm)
1 /
2
" - 1"
(13 mm - 25 mm)
27"
(686 mm)
38"
(965 mm)
51"
(1295 mm)
7"
(178 mm)
14"
(356 mm)
1"
(25 mm)
4"
(102 mm)
1"
(25 mm)
1"
(25 mm)
4"
(102 mm)
24 in. 2
(155 cm 2 )
48 in. 2
(310 cm 2 )
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
1"
(25 mm)
1"
(25 mm)
39" min.
(990 mm)
1"
(25 mm)
5"
(127 mm)
24 in. 2
(155 cm 2 )
48 in. 2
(310 cm 2 )
3"
(76 mm)
3"
(76 mm)
77 1 /
2
"
(1969 mm)
6"
(152 mm)
1"
(25 mm)
Custom cabinet installation:
Recessed area or closet installation (washer only):
Recessed area or closet installation
(stacked washer and dryer):
Custom under counter installation:
Floor standpipe drain system
4 1 / 2 "
(113 mm)
Wall standpipe drain system
4 1 / 2 "
(113 mm)
Laundry tub drain system
Minimum capacity: 20 gal. (76 L).
Top of laundry tub must be at least
30" (762 mm) above floor; install no
higher than 96" (2.44 m) from bottom
of washer.
30"
(762 mm)
min.
4 1 / 2 "
(113 mm)
Floor drain system requires additional parts. Minimum
siphon break: 28" (711 mm) from bottom of washer.
Floor drain system
Drain system can be installed using a floor drain, wall
standpipe, floor standpipe, or laundry tub. Select
method you need.
IMPORTANT: To avoid siphoning, 4.5" (113 mm) of
drain hose should be inside standpipe or below the top
of wash tub. Always secure drain hose with cable tie
Minimum diameter for a standpipe drain: 2" (51 mm).
Minimum carry-away capacity: 17 gal. (64 L) per minute.
A 1 / 4 " (6 mm) diameter to 1" (25 mm) diameter Top of
standpipe must be at least 30" (762 mm) high; install no
higher than 96" (2.44 m) from bottom of washer. If you
must install higher than 96" (2.44 m), you will need a sump
pump system.
For each arrangement, consider
allowing more space for ease
of installation and servicing,
and spacing for companion
appliances and clearances for
walls, doors, and floor moldings.
Space must be large enough to
allow door to fully open.
Add spacing of 1" (25 mm) on all
sides of washer to reduce
noise transfer. If a closet door
or louvered door is installed, top
and bottom air openings in door
are required.
All dimensions show recommended spacing allowed, except for closet door ventilation
openings which are the minimum required.
