6
ENGLISH

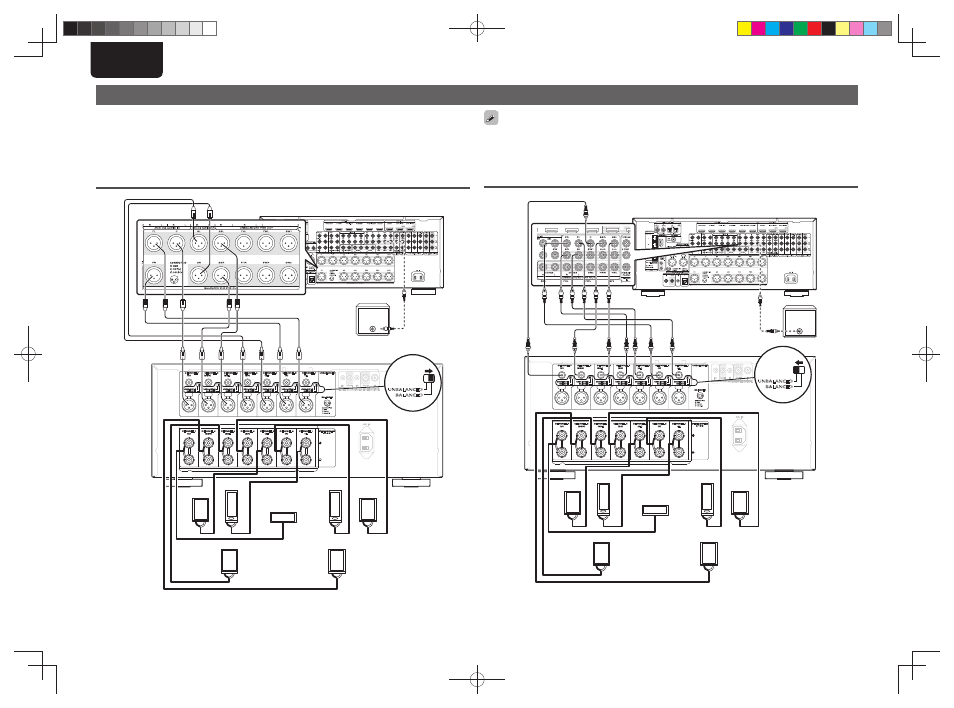

Connecting MM8077 with an AV pre-tuner (AV8801)
The illustrations below show connection examples for performing 7.1-channel surround playback using the
MM8077 and AV pre-tuner (AV8801).
Balanced connections
(when connecting to the XLR input connectors)
w q w q w q w q
w q w q
BALANCED
UNBALANCED
(FL)
(C)
(FR)
(SL) (SR)
(SBL) (SBR)
AV pre-tuner AV8801
MM8077
• For settings and operating procedures of the AV8801, see the AV8801 owner’s manual.
• When connecting the AV8801, be sure to also consult the AV8801 owner’s manual.
Unbalanced connections
(when connecting to the RCA input connectors)
w q w q w q w q
w q w q
BALANCED
UNBALANCED
(FL)
(C)
(FR)
(SL) (SR)
(SBL) (SBR)
MM8077
AV pre-tuner AV8801
