PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details.

1.4

27”, 30” wide, Double,

Classic wall ovens

ECD/ECs, mCD/mCs, & PCD/PCs

Models

Dedicated Circuit

Required

Total

Connected Load

Approximate

Shipping

Weight

27”

208/240VAC,

4-wire,

60Hz, 40A

(Breaker)

208VAC,

8.1kW (39A)/

240VAC,

8.1kW (34A)

337 lbs.

30”

ovEN HANDLE DImENsIoNs

ToP vIEw

Models

“A” Oven Width “B” Overall Height

“C” Recess

Width

27”

27” (686mm)

49 15/16” (1270mm) 6 13/16” (173mm)

30”

30” (762mm)

"A"

“B”

1"

(25mm)

23 7/8"

(606mm)

8"

(203mm)

“C”

5 1/4"

(133mm)

Rotating

elbow

60" (1524mm)

Flexible conduit

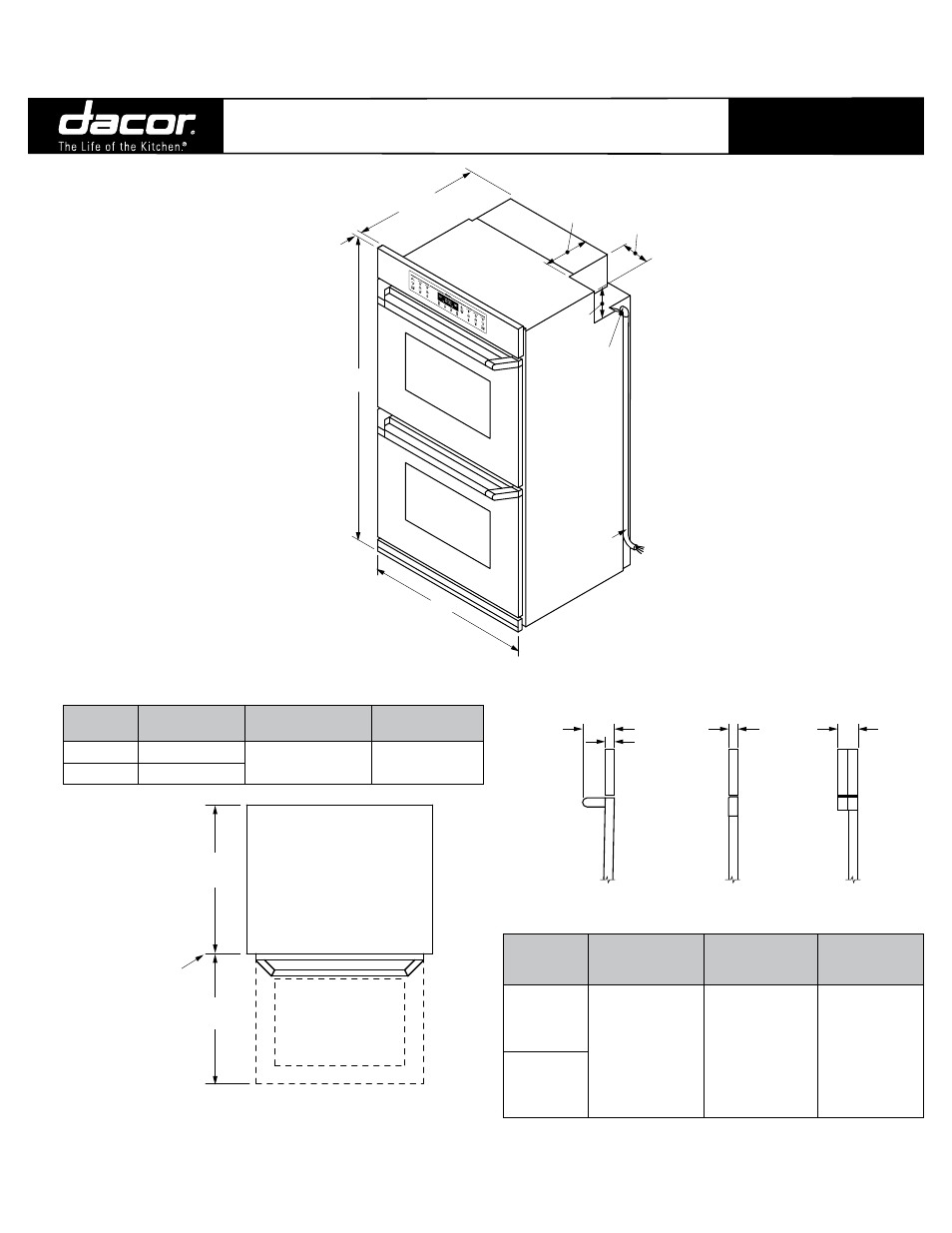

ovErALL DImENsIoNs

3 5/8"

(92mm)

1"

(25mm)

EPICURE™

1"

(25mm)

MILLENNIA™

2 3/8"

(60mm)

PREFERENCE™

24"

(610mm)

21"

(533mm)

Oven

cabinet

top view

Open door

Back of

control panel/

oven door

091605

2/2
