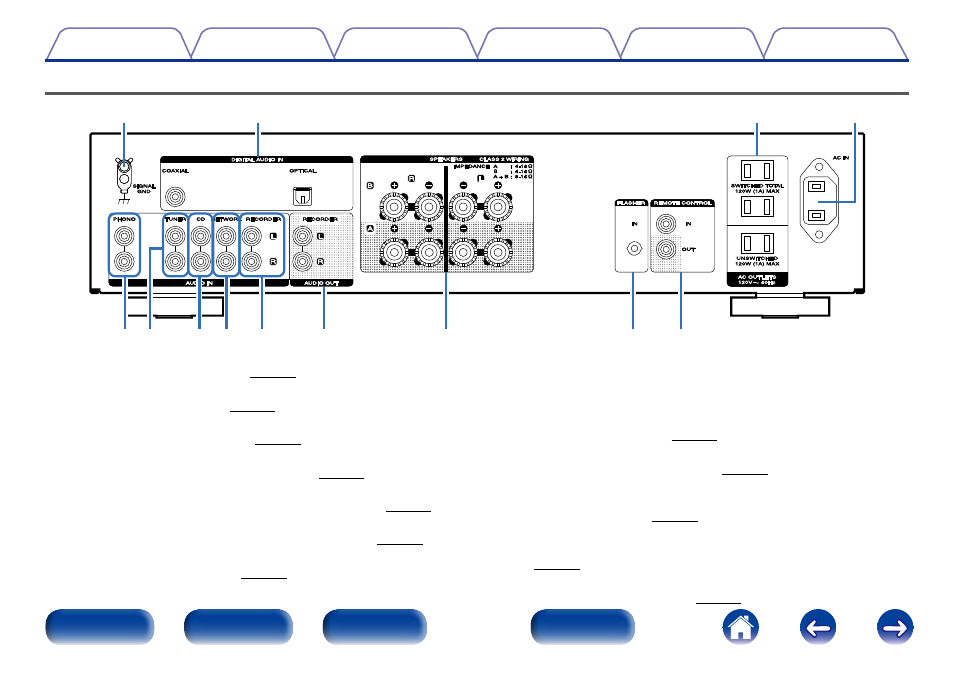

Rear panel
u
y
e
w
q
o
i
Q2
Q1
Q3
Q0
r
t
q
Turntable input connectors (PHONO)
Used to connect a turntable (vpage 18).
w
Tuner input connectors
Used to connect a tuner (vpage 18).
e
CD input connectors
Used to connect a CD player (vpage 18).
r
Network audio player input connectors (NETWORK)
Used to connect a network audio player (vpage 18).
t
Recorder input connectors (RECORDER)
Used to connect the output connector of a recorder (vpage 19).
y
RECORDER output connectors (RECORDER)
Used to connect the input connector of a recorder (vpage 19).
u
Speaker system terminals (SPEAKERS)
Used to connect speakers (vpage 15).
i
FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
o
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function (vpage 21).
Q0
AC inlet (AC IN)
Used to connect the power cord (vpage 22).
Q1
AC outlets (AC OUTLETS)
Used to connect the AC outlets of this unit in order to supply power to
other AV equipment (vpage 22).
Q2
Digital audio input connectors (COAXIAL/OPTICAL)
Used to connect a device with a TV or digital audio connector
Q3
SIGNAL GND jacks
