17
PARKING BRAKE:
The parking brake is designed to hold the
mower from moving and is not intended for
use in stopping the mower while it is in
motion. The engine will stop if the parking
brake is engaged while the control levers are
in the drive position.
Engage parking brake
before starting engine.

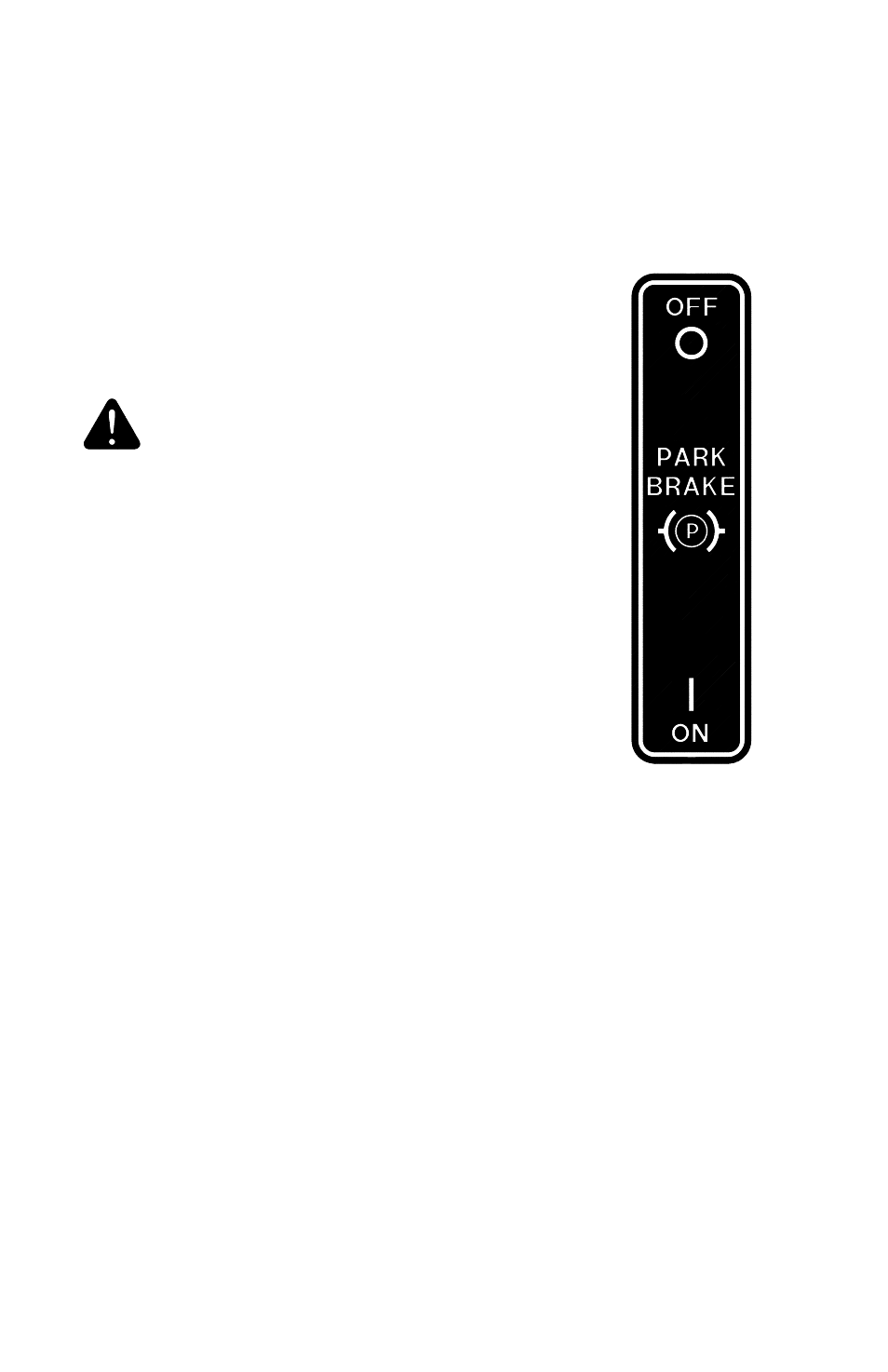

TO SET PARKING BRAKE:
The hand operated parking brake is located on
the right fender.
To engage brake, pull lever up (to the rear).
To release brake, move lever forward (down).
NOTE: Always set parking brake before dismounting.
Release parking brake before moving mower.
TRANSMISSION DRIVE SYSTEM
Allows the mower to turn on its own axis “ZERO TURNING
RADIUS”. Each lever controls one side of the mower.
NOTE: The pressure required to operate the mower is very light.
CAUTION
CONTROLS
