Installation
ES142 Spring Return Electronic Actuators
129-270 EAI/ES-10 DEI, Inc.

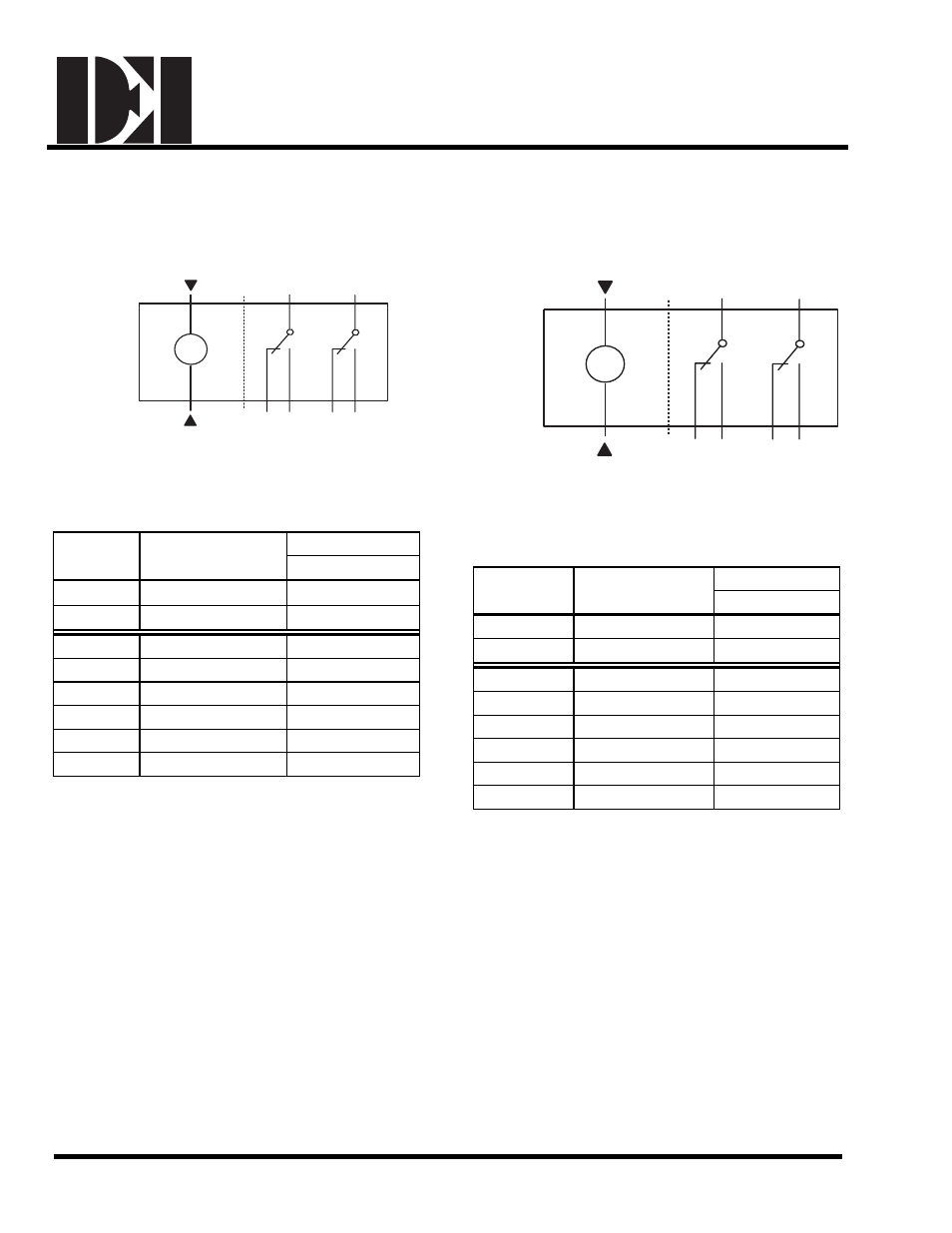

Two-Position Control (24 VAC/DC)
M
A B
S1 S4
S2 S3 S5 S6
2
1
EA0281R1
Figure. 18
Table 1. Two-position Control 24 VAC/DC.
Color Standard
Symbol
Function
Plenum
1 ( + ) Red
2 Com Black
S1 Switch A Common Gray/red
S2 Switch A N.C. Gray/blue
S3 Switch A N.O. Gray/pink
S4 Switch B Common Black/red
S5 Switch B N.C. Black/blue
S6 Switch B N.O. Black/pink
Two-Position Control (120 VAC)
M
A B
S1 S4
S2 S3 S5 S6
4
3
PL0026R1
Figure 19.
Table 2. Two-position Control 120 VAC.
Color Standard
Symbol
Function
Standard
3 Line (120 VAC) Black
4 Neutral (120 VAC) White
S1 Switch A Common Gray/red
S2 Switch A N.C. Gray/blue
S3 Switch A N.O. Gray/pink
S4 Switch B Common Black/red
S5 Switch B N.C. Black/blue
S6 Switch B N.O. Black/pink
