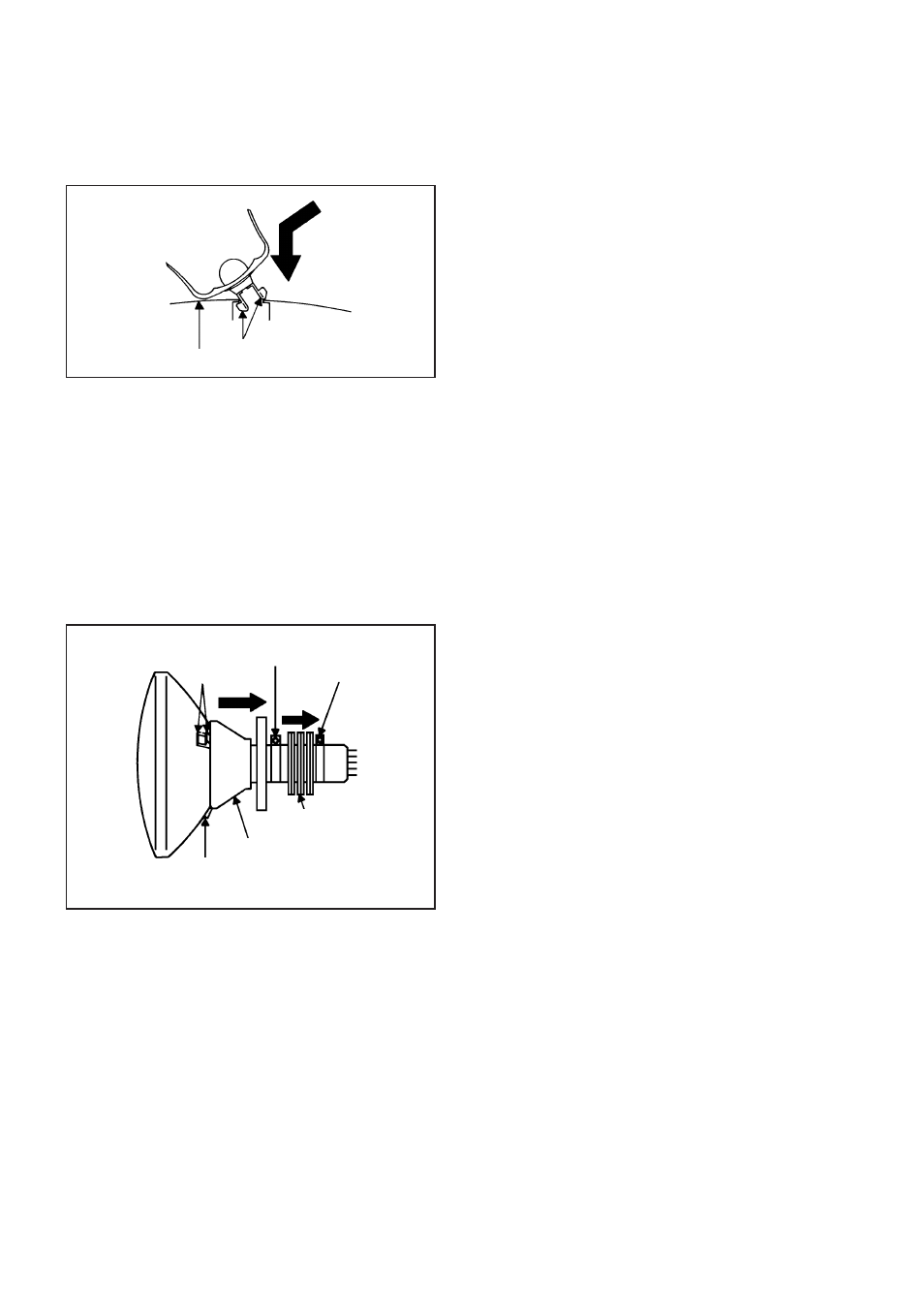

4. Insert one end of the Anode Support into the anode button,

then the other as shown in Fig. 1-5.

5.
6.

Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.

DISASSEMBLY INSTRUCTIONS

CRT

Support

Fig. 1-5

2. REMOVAL OF DEFLECTION YOKE

(Refer to Fig. 2-1)

1.
2.

3.
4.
5.

Loosen the screw

1

.

Remove the Convergence • Purity Magnet in the
direction of arrow (A).
Loosen the screw

2

.

Remove the 3 Wedges.
Remove the Deflection Yoke in the direction of arrow
(B).

Wedge

Wedge

Deflection Yoke

Convergence •
Purity Magnet

2

1

(A)

(B)

Fig. 2-1

INSTALLATION

Install new Deflection Yoke in reverse steps of REMOVAL.

NOTE

After adjusting the purity and the convergence, fix the
screw

2

and lock the wedges.

B-2
