3.5 TOUCH SCREEN CONTROL PANEL
The APS uses a colour LCD touch screen which is operated by touching the virtual buttons
with your finger or a stylus.

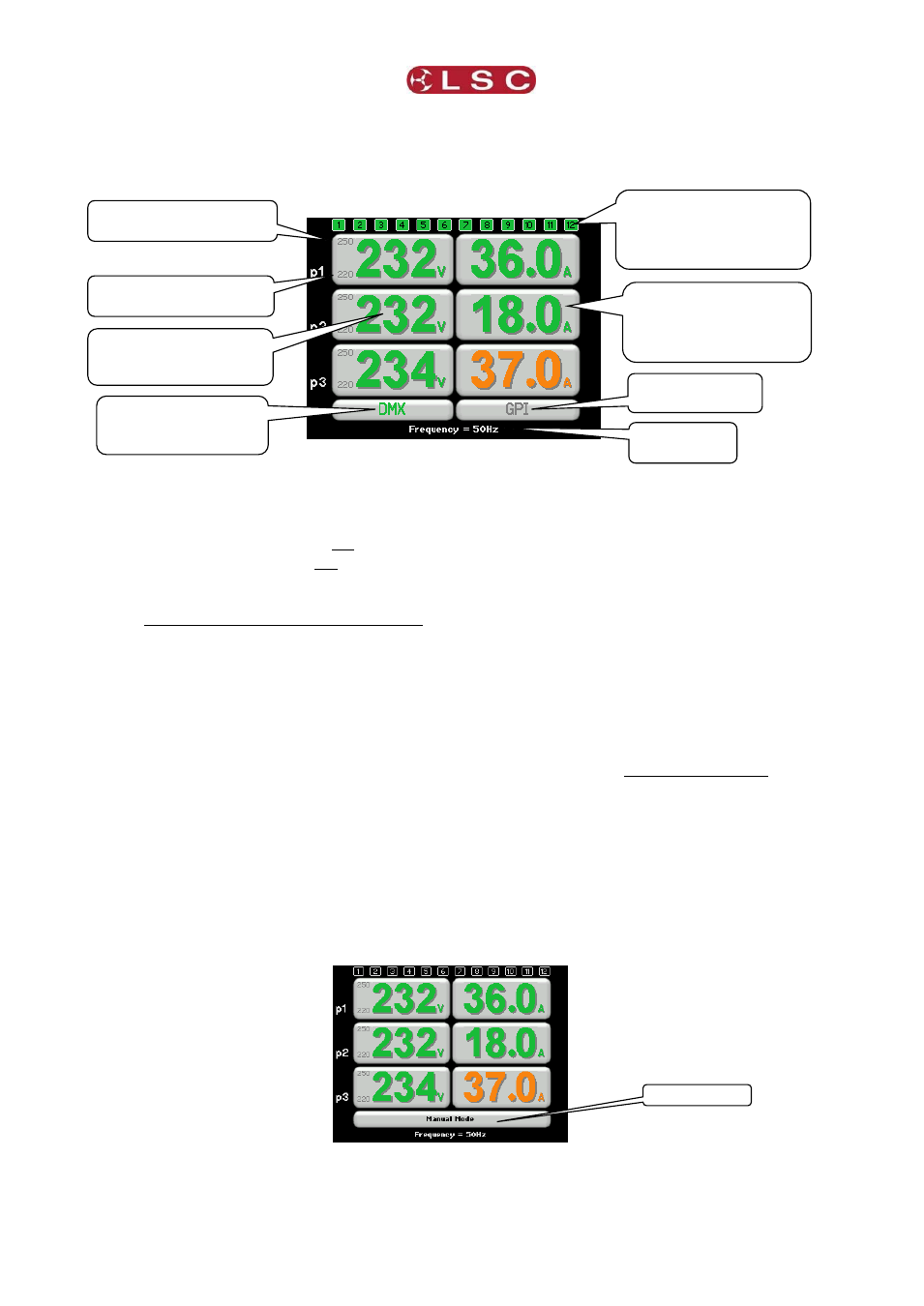

Home Screen
The output channel status indicators at the top of the home screen show the current status
of each output:
 Green = The channel is On.
 Red = The channel is Off.
 Orange = The channel has been automatically turned “Off” due to an under voltage
or over voltage input but the input voltage is now within limits and the channel is
about to automatically turn back on after it’s staggered start up time delay.
The “Input Voltage High Limit” and “Input Voltage Low Limit” per phase can be set. If these
limits are exceeded, the outputs connected to that phase will be switched off and their
status indicators on the home screen will turn
red . See section 4.5.
The input current per phase is displayed in
green . The readout turns orange as a warning
when the input current reaches 90% of the maximum allowable current per phase. Note
that this reading is the total input current per phase. The maximum current per output
channel is determined by the capacity of its front panel RCBO circuit breaker.
The DMX status is
green when DMX is present and flashes red when DMX is not present.
See section 2.4.2.
The GPI status is
green when a GPI signal (contact closure) is present. See section 2.4.4
If the outputs are manually turned off from the touch screen (Manual Off), then the DMX
and GPI status indicators are replaced by a “Manual Mode” indicator. See section 4.6
Output Channel Status
Green = On
Red = Off
Orange = see below
Input Voltage per phase
Green = OK
Red = over/under limit
Input Current per phase
Green = OK
Orange = 90% load
warning
DMX Status
Green = Present
Flashing Red = Missing
Input
frequency
Input Voltage High Limit
per phase
Input Voltage Low Limit
per phase
GPI Status
Green = ON
Manual Mode
