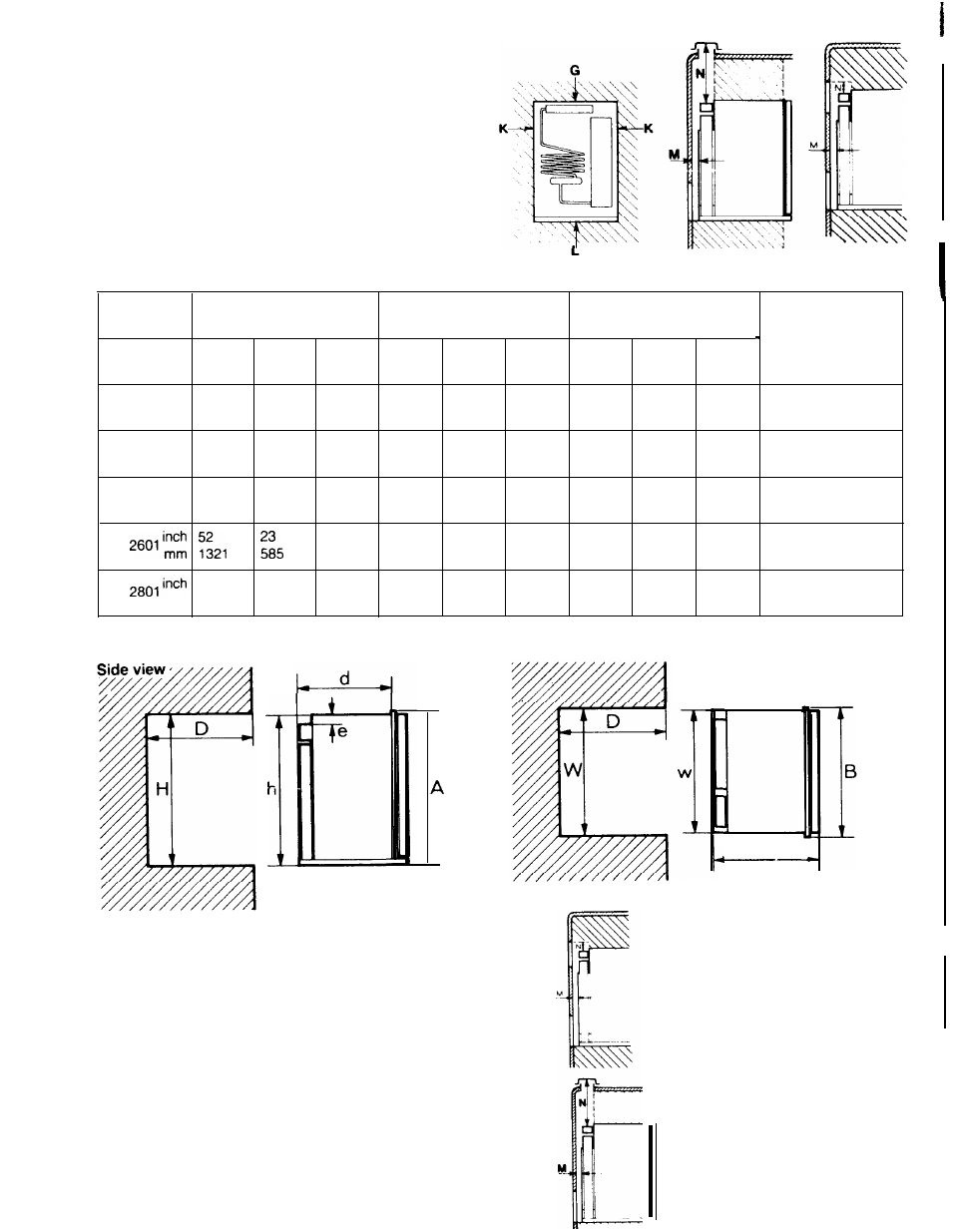

CLEARANCES
Minimum clearances in inches to combustible materials are
G: Top 0
K: Side 0
L: Bottom 0
M: Rear 1
N: See example below
Clearance M between the rearmost part of the refrigerator and
the wall behind the refrigerator
Clearance N on top of the condenser is related to the minimum
ventilation heiqht
See Fig 11 and examples below Fig.1 1
Refrigerator Overall Installation Recess Distance between
model dimensions dimensions dimensions top of condenser
and top of
Height Width Depth Height Width Depth Height Width Depth refrigerator
A B C h
W d H W D e
RM 2301 inch 30 3/8 21 11/16 22 1/16 29 9/16 20 1/4 20 3 / 8 29 3 / 4 20 1/2 21 3/8 1 1/4
mm 771 551 560 751 514 517 756 521 542 32
RM 2401 inch 32 15/16 23 24 11/16 32 1/8 21 9/16 22 15/16 32 5/16 21 13/16 23 15/16 1 1/4
mm 836 585 627 816 547 582 821 554 608 32
21 13/16 23 15/16 1 1/4 RM 2501 inch 40 13/16 23 24 11/16 40 21 9/16 22 15/16 40 3/16
m m 1036 585 627 1015 547 582 1021 554 608 32
RM
24 11/16 51 3/16 21 9/16 22 15/16 51 3 / 8 21 13/16 23 15/16 1 1/8
627 1300 547 582 1305 554 608 29
RM 57 15/16 24 15/16 24 11/16 57 1/8 23 7/16 22 15/16 57 1/2 23 13/16 23 15/16 1 1/8
m m 1471 633 627 1450 595 582 1455 605 608 29
This method of installation and these clearances will give you adeqvate space for servicing and proper installation.
EXAMPLES
e
h
Fig.1 2
The clearance N for the RM 2301 model is derived at in the
following way.
Installation with upper and lower side vents
N= Minimum ventilation height 37 minus installation height
29 9116 plus distance between condenser top and refrigera-
tor top 1 1/4
in: N=37-29 9/16+1 1/4=8 1 1/16 inches
mm: N=940-751+32=221 mm
Installation with roof vent and lower side vent
N=Minimum ventilation height 31 minus installation height
29 9116 plus distance between condenser top and refrigera-
tor top 1 1/4 plus distance between roof surface and roof vent
cap 5 1/4
in: N=31-29 9/16+1 1/4+5 1/4=7 15/16 inches
mm: N=787-751+32+134=202 mm
View from above
C
