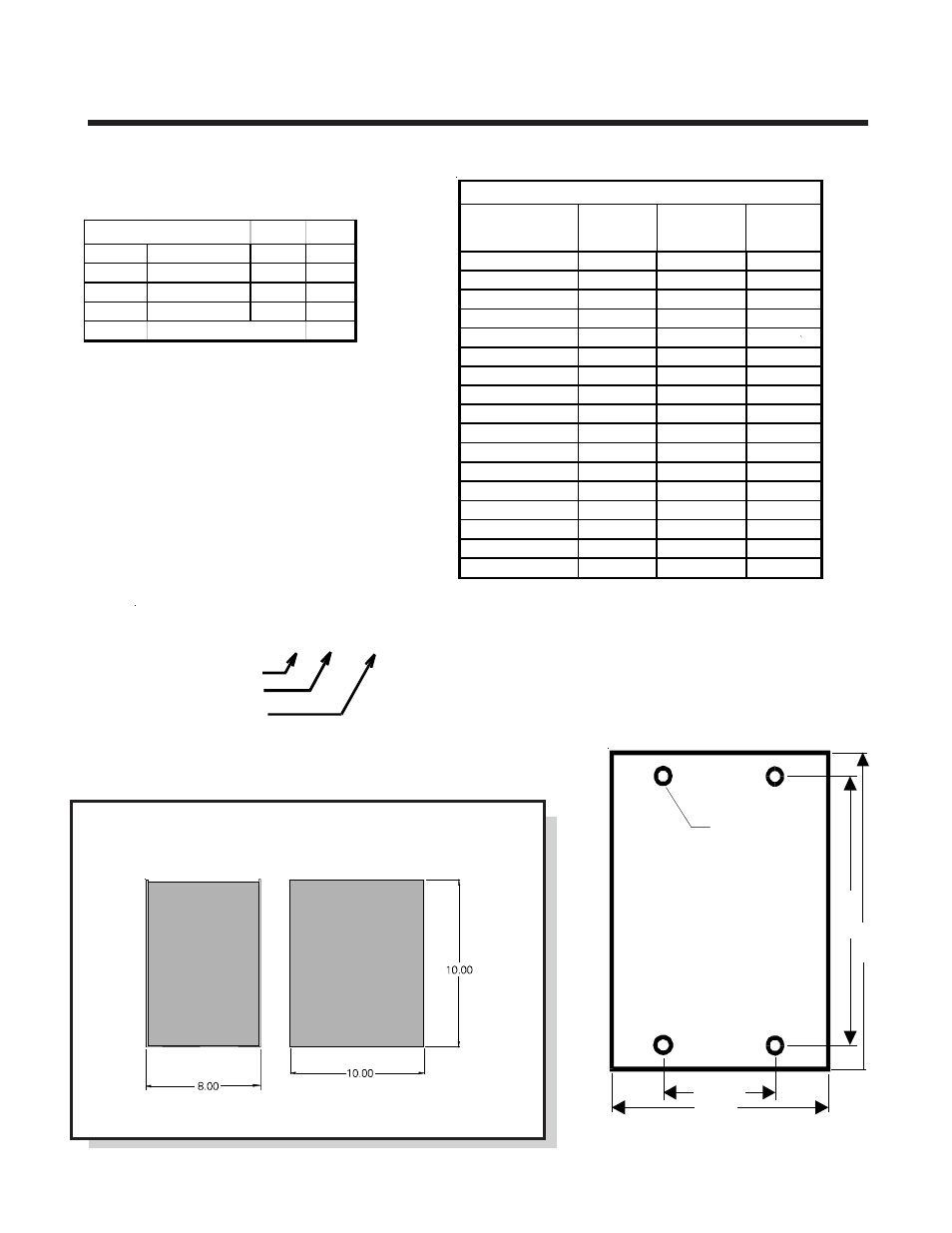

SPECIFICATION & OUTLINE
OUTLINE DRAWING
SPECIFICATIONS:
INPUT:
VOLTS FREQUENCY AMPS FUSE
120 50/60 Hz 17 20
230 50/60 Hz 9 12
277 50/60 Hz 8 10
all fuses are slo-blo
Output: see chart
Output Current: see chart
Weight: 65 lbs
Model Number Specification
091-149-XX-XXX
Basic Model
D.C. Output Volts
A.C. Input Volts
(Only specify if
other than 120V)
SPECIFICATION CHART
MODEL # INPUT OUTPUT OUTPUT
VOLTAGE VOLTAGE AMPS
091-149-12 120 A.C. 12 D.C. 75
091-149-24 120 A.C. 24 D.C. 40
091-149-32 120 A.C. 32 D.C. 30
091-149-36 120 A.C. 36 D.C. 27
091-149-48 120 A.C. 48 D.C. 25
091-149-72 120 A.C. 72 D.C. 15
091-149-96 120 A.C. 96 D.C. 12
091-149-120 120 A.C. 120 D.C. 10
091-149-12-230 230 A.C. 12 D.C. 75
091-149-24-230 230 A.C. 24 D.C. 40
091-149-32-230 230 A.C. 32 D.C. 30
091-149-36-230 230 A.C. 36 D.C. 27
091-149-48-230 230 A.C. 48 D.C. 25
091-149-72-230 230 A.C. 72 D.C. 15
091-149-96-230 230 A.C. 96 D.C. 12
091-149-120-230 230 A.C. 120 D.C. 10
091-149-48-277 277 A.C. 48 D.C. 25
4.375
8.
50
10
.0
8.0
4 HOLES,TYP.
7/16 DIA.
CHARGER HAS
3/8-16 THREADED
INSERTS
MOUNTING
